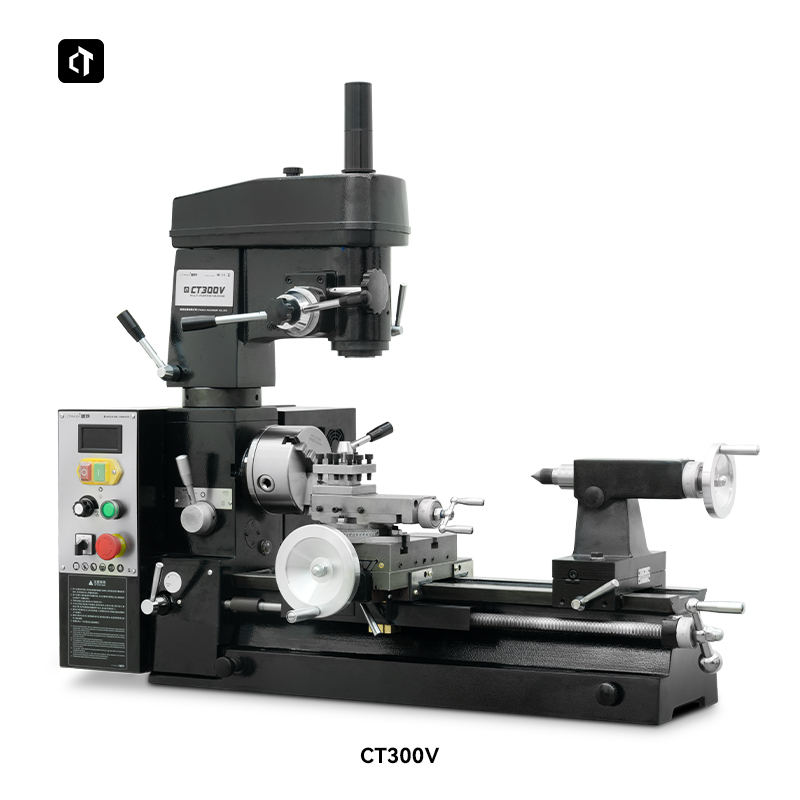

CT300V - 19-3/5" Combo Lathe/Mill

CT300V - 19-3/5" Combo Lathe/Mill

This machine meets expectations where accuracy is key, perfect for school and industrial training workshops. Drilling, milling and turning done taking only a small amount of space.

Model :
CT300V
Swing over bed :
300mm
Swing over cross slide :
140mm
Distance between centers :
500mm
Drilling Capacity (steel / lron) :
20mm

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

1. Imported SKF bearings are used to improve service life and precision.

2. 1000W servo motor, belt drive.

3. The middle slide is equipped with T-slots for fixing workpieces and can be used as a milling machine workbench.

4. The middle slide adopts dovetail groove guide rails, and the guide rail gap can be adjusted according to the blade taper, which is wear-resistant, surface contact, and has good rigidity.

5. Push-pull clutch device, which can switch between turning or drilling and milling operations.

6. Comply with CE and ISO production system standards, safe and reliable.

7. A multi-functional machine tool suitable for home, repair workshop and laboratory.

Turning

1. The spindle has stepless speed regulation, up to 1850rpm.

2. It can turn imperial and metric threads, and automatically feed vertically and horizontally.

Milling

1. Milling has stepless speed regulation, up to 1850rpm.

2. The spindle provides two feeding modes: rapid feed and micro feed.

3. The milling head can be raised or lowered or rotated 360°.

Model	CT300V
Turning
Bed Rotation Diameter	300mm
Intermediate Slide Rotation Diameter	140mm
Maximum Workpiece Length	500mm
Spindle Through Hole Diameter	26mm
Spindle Taper Hole	MT4
Longitudinal Travel of Large Slide	420mm
Transverse Travel of Intermediate Slide	200mm
Tool Post Travel	80mm
Metric Pitch Range (Number)	0.5～3mm （14）
Imperial Pitch Range (Number)	11～40 1/n″ （20）
Longitudinal Feed Range	0.036 & 0.072mm
Tailstock Sleeve Feed Travel	50mm
Tailstock Sleeve Taper Hole	MT3
Drilling & Milling
Drilling Diameter	20mm
Distance from Spindle End Face to Table Surface	240～320mm
Distance from Spindle Centerline to Column Surface	175mm
Drilling/Milling Head Box Rotation Angle Around Column	360°
Drilling/Milling Head Box Vertical Lifting Travel	80mm
Drilling/Milling Spindle Taper Hole	MT3
Working Surface Dimensions	200x150mm
Table T-Slot Width	12mm
Spindle Sleeve Travel	80mm
Table Transverse Travel	200mm
Other
Motor	1000w
Spindle Speed	0-1850rpm(Variable)
Machine Tool Dimensions	1160580900mm
Packaging Dimensions	1130570910mm
Net Weight	200Kg
Gross Weight	210Kg
