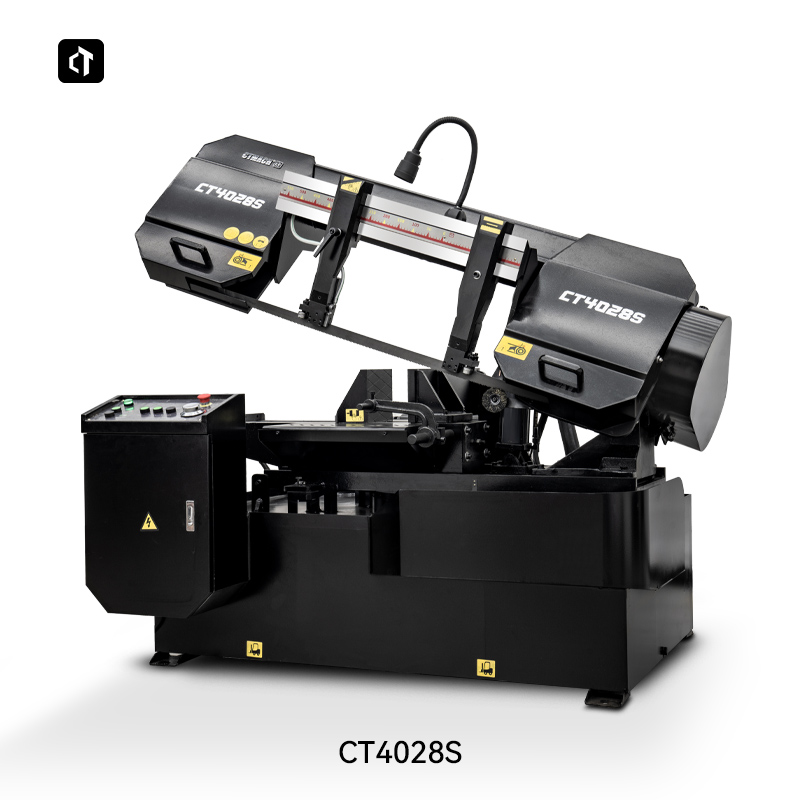

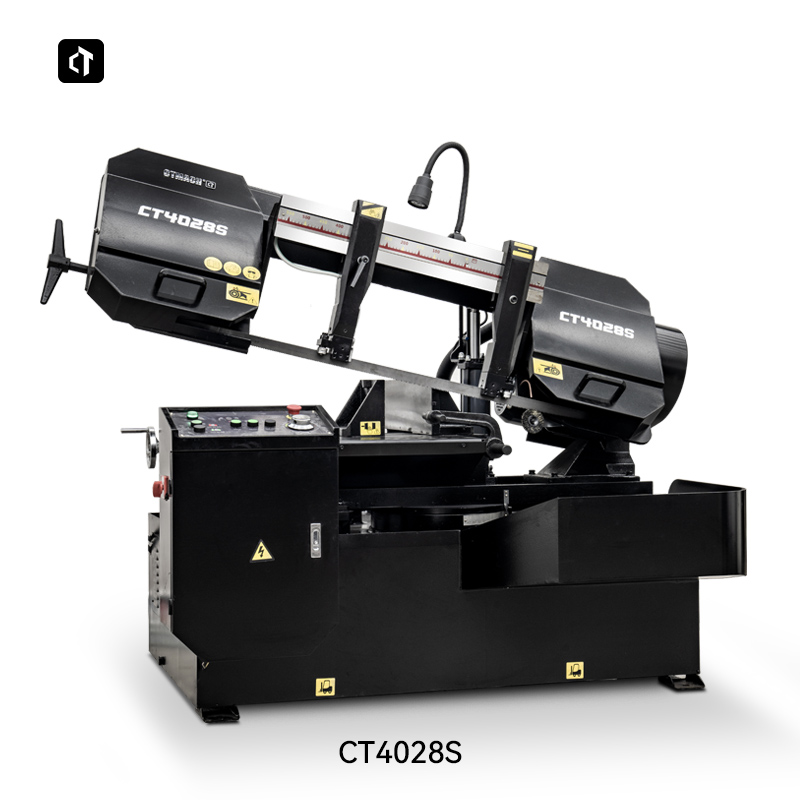

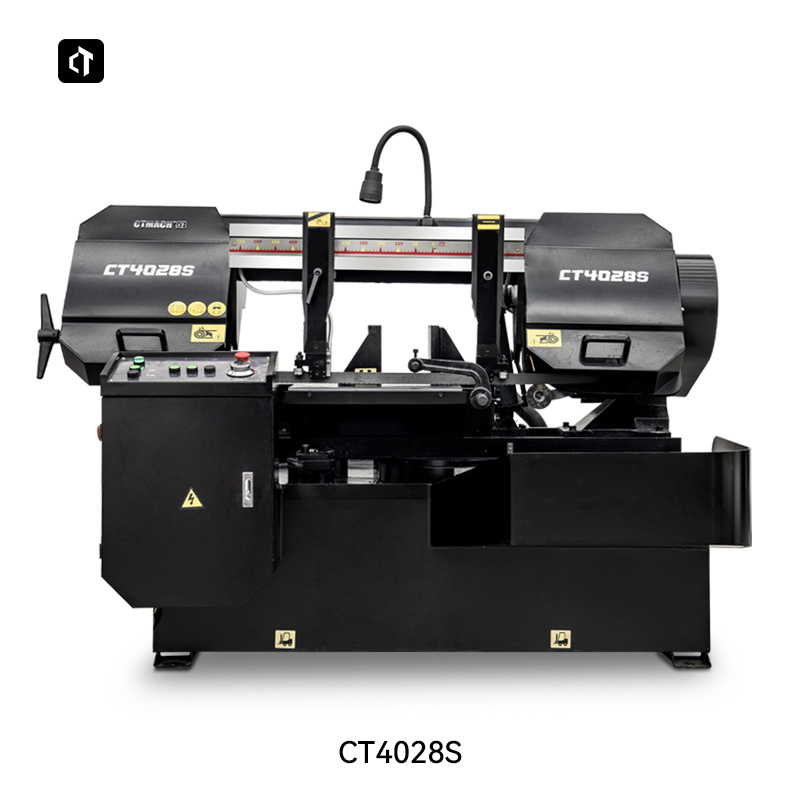

Model :
CT4028SMotor :
3790WCutting capacity 0° :
280mmCutting capacity 45° :
230*270mmThis sawing machine is a device that uses bimetallic saw blades to cut metal materials. It has the advantages of compact structure, fast sawing speed, high precision, narrow sawing kerf, low noise, and easy operation. It is a new energy-saving product that replaces circular saws and bow saws. It is widely used in electromechanical, metallurgy, automobile, bridge, shipbuilding and other industries to saw various metal materials.
| Model | CT4028S |
| Sawing Capacity | 0°: 280mm; 45°: 230*270mm |
| Saw Blade Linear Speed | 25, 48, 72 m/min |
| Speed Gears | Three-speed transmission |
| Feed Adjustment Method | Hydraulic stepless speed regulation |

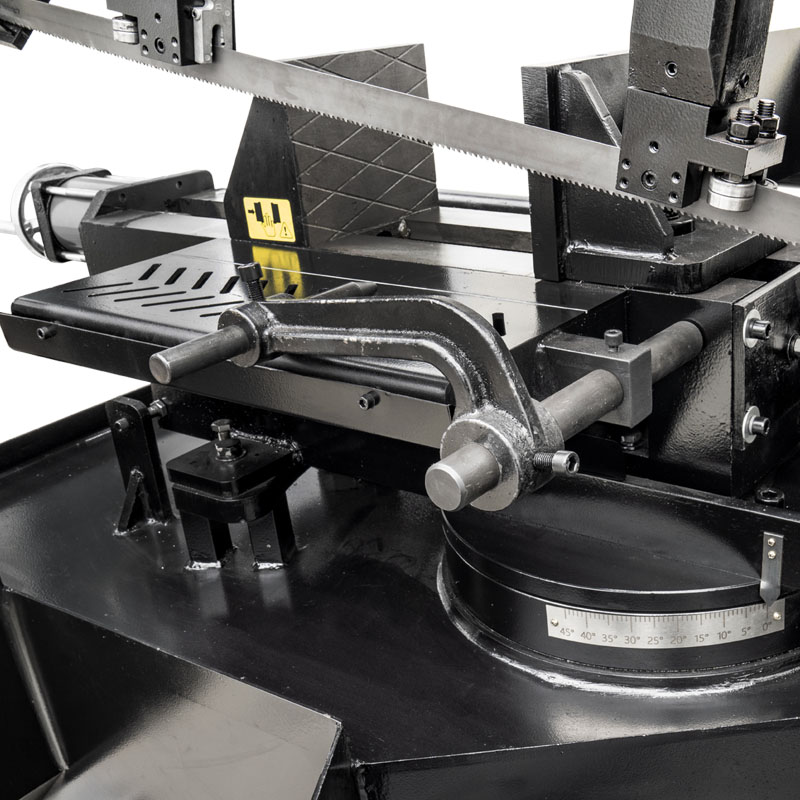

| Clamping Method | Manual clamping |
| Visor Structure | Side-mounted type |
| Minimum Workpiece Clamping Size | 10mm |
| Saw Blade Specifications | 34*1.1*3860mm |
| Band Saw Blade Tensioning Method | Manual tensioning |
| Main Motor Power | 3KW |
| Hydraulic Motor Power | 750w |
| Cooling Pump Power | 40w |
| Hydraulic System Oil Pressure | 2.5-3.5MPa |
| Swing Arm Verticality Error | 0.2mm/100mm |
| Parallelism Error | 0.1mm/100mm |
| Machine Tool Input Power | AC 380V, 50Hz |
| Total Machine Tool Power | 3.79KW |
| Table Height from Ground | 730mm |
| Hydraulic Oil Tank Volume | 45L |
| Cooling Water Tank Volume | 40L |
| Discharge Method | Manual moving type |
| Feeding Method | Manual moving type |
| External Dimensions | 2200* 1460* 1800mm |
| Machine Weight | 1060kg |
