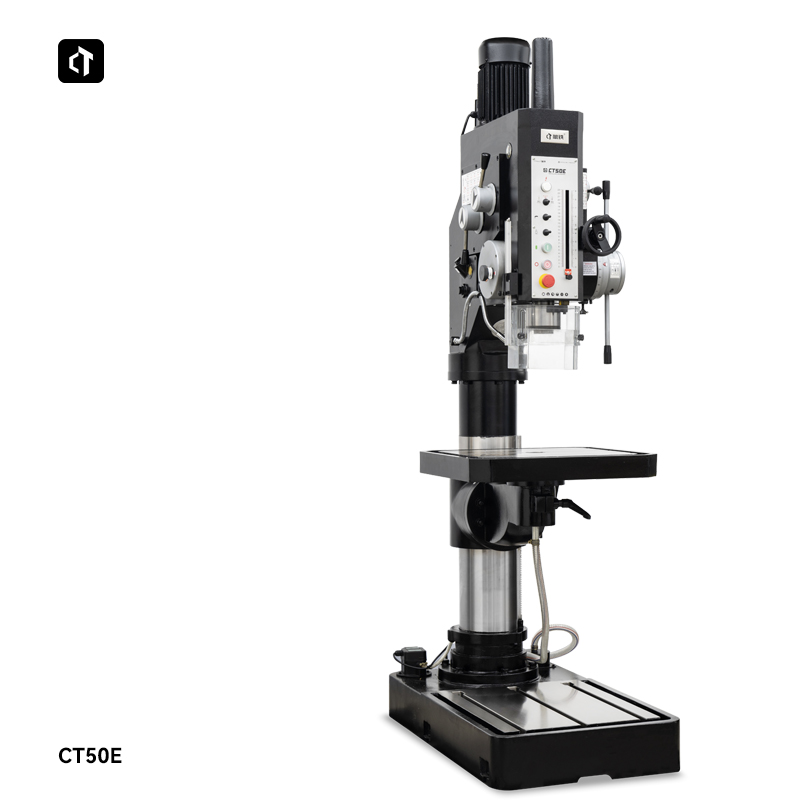

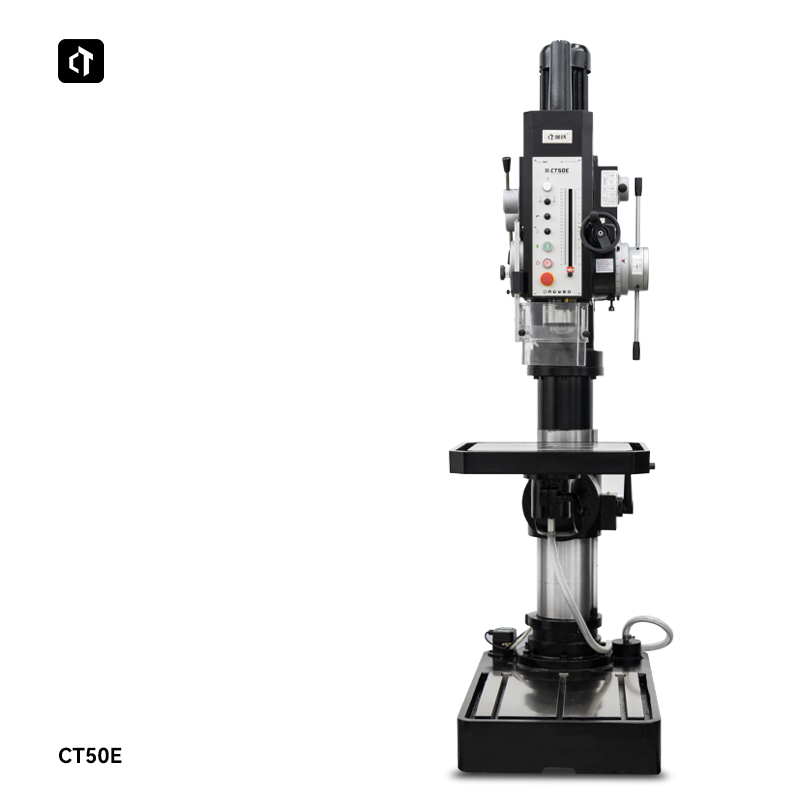

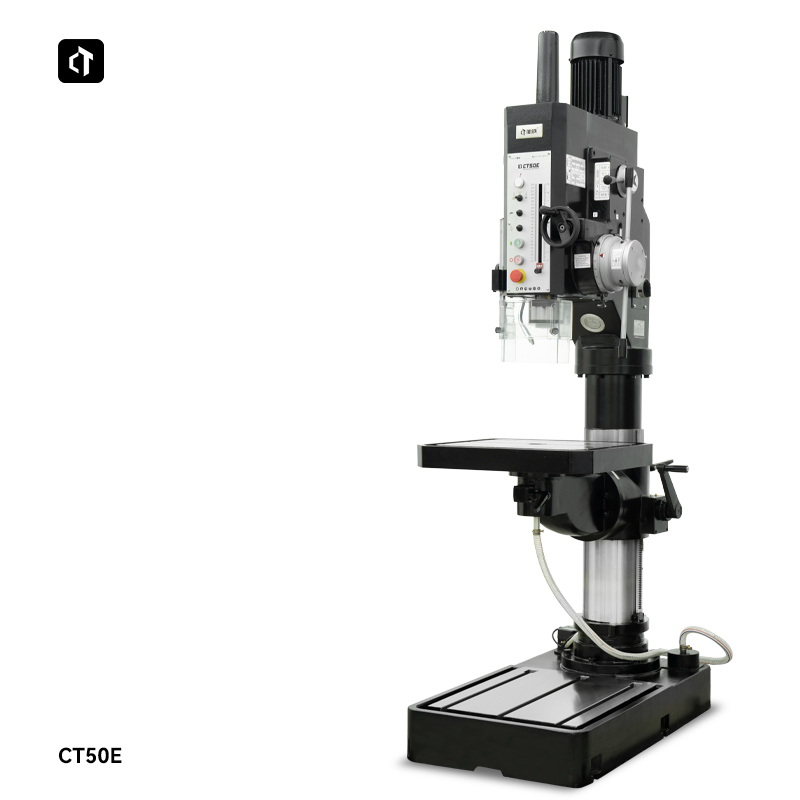

CT50E Vertical drilling machine

CT50E Vertical drilling machine

CT50E Ideal for industrial work shop use,MT4 spindle, geared head drilling machineThread tapping, up to M38,Autofeed range 0.10,0.20, 0.30 mm/rev,Chuck guard with mirco-switch,12 steps drilling speed,Manual spindle travel up to 220 mm, Auto spindle travel up to 180 mm,T-slot worktable and base,Adjustable table height by the crank,Standard cooling system and working light.

Model :
CT50E
Motor :
2200W
Drilling Capacity :
50mm mild steel 58mm cast iron
Spindle Travel :
180mm automatic / 220mm manual

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

1. UP-grade cast iron

2. High precision bearing

3. High-precision spindle and all gear harden processed

4. 12 spindle speed to meet different requirement

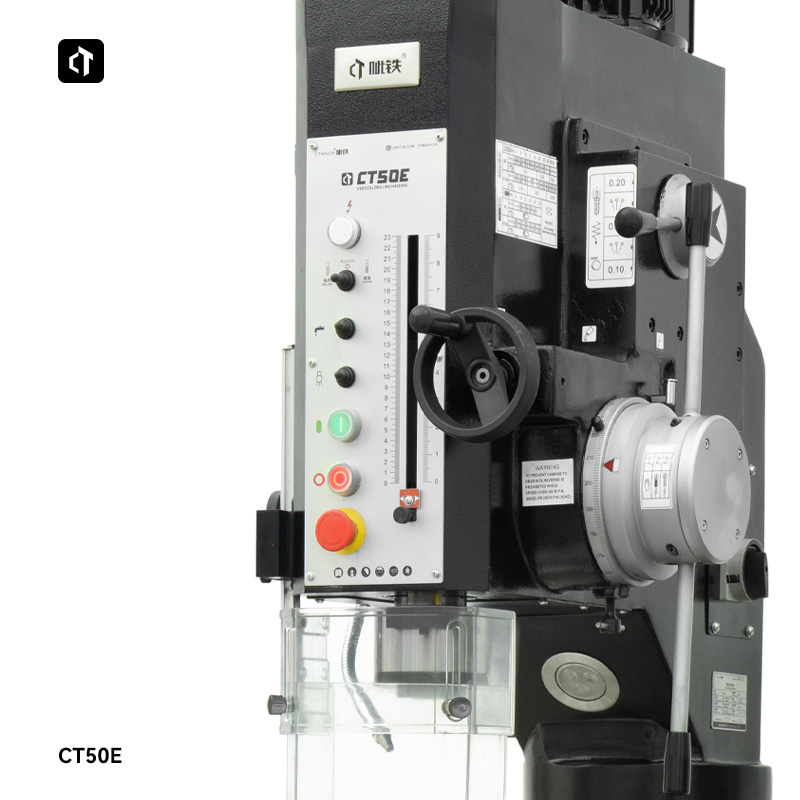

5. New control panel with CE

6. 400 mm deep throat

7. 600 x 500 mm big worktable

8. Worktable left/right turning

9. Built in cooling system

Model	CT50E
Drilling diameter	50mm mild steel 58mm cast iron
Tapping diameter	M30 mild steel M38 cast iron
Spindle feed stroke	180mm automatic / 220mm manual
Distance from spindle axis to column	400mm
Distance from spindle nose to worktable	30~610mm
Distance from spindle nose to base	915~1135mm
Spindle speed series	12
Spindle speed range	60,85,110,135,185,135,340,440,575,740,960,1270RPM
Spindle taper	MT4
Spindle feed series	3
Feed rate	0.10，0.20，0.30mm/rev
Worktable size	600×550mm
Worktable lifting stroke	395mm
T-slot	18mm
Base	1060×600mm
Motor	2.2KW
Machine size	10606002245mm
Packing size	12575245cm
Net weight	860Kg
Gross weight	950Kg
