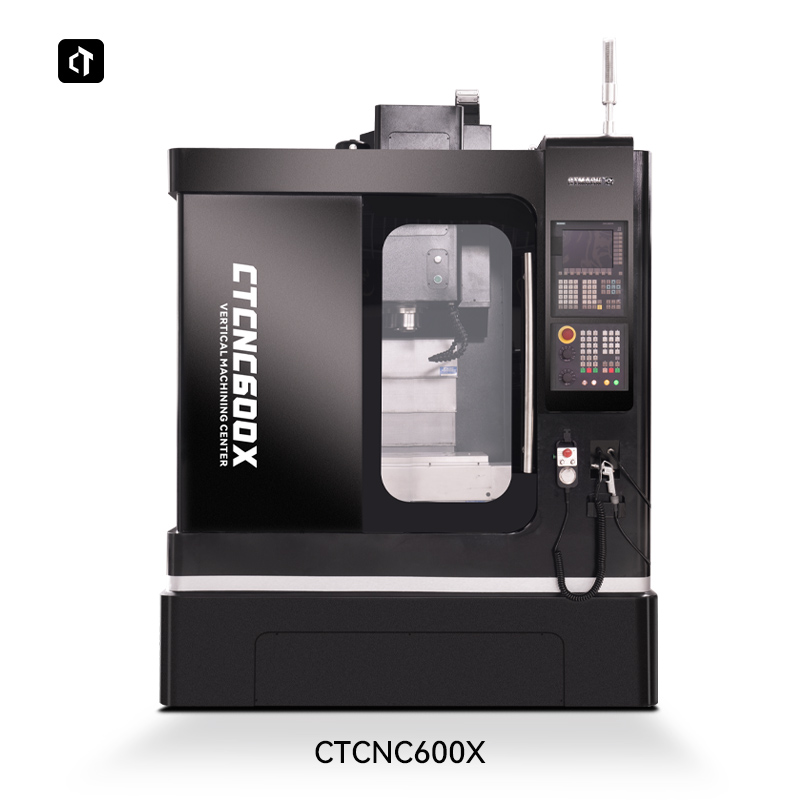

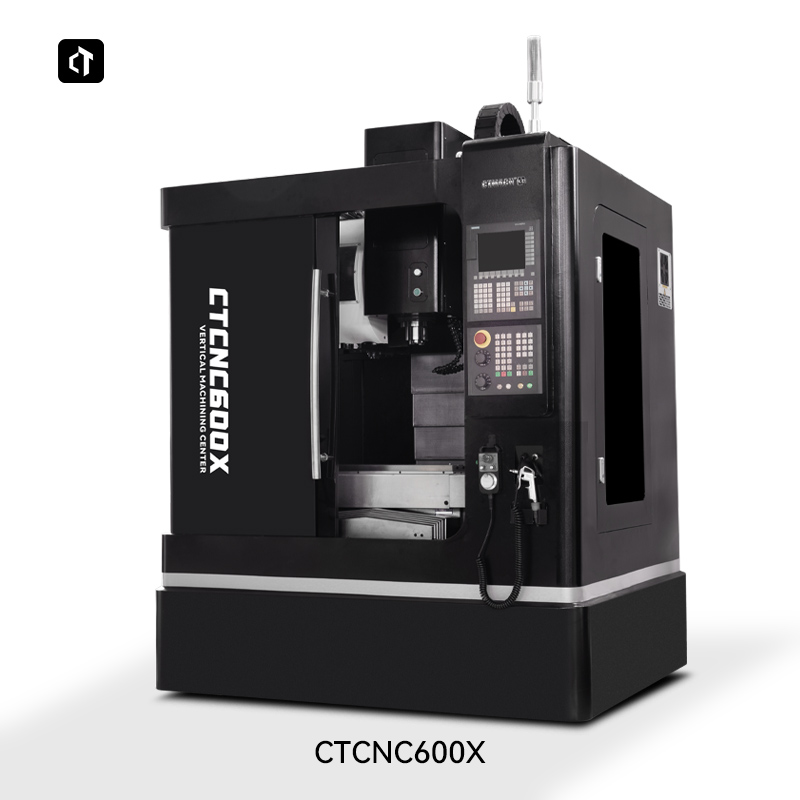

The compact machining center CTCNC600X can complete the automatic working cycle of drilling, milling, boring, reaming and reaming. It has high positioning and repeat positioning accuracy and good reliability. It is suitable for single-piece, small-batch or mass production in industries such as mold and batch parts production.
Model :
CTCNC600XMotor :
3.7KwMax.strokeof X :
500mmMax.strokeof Y :
290mmMax.strokeof Z :
420mmSpindle speed :
0-8000 r/minTable size :
600*330mmFeaturing a bed-type structure, high-strength cast iron material, and rationally arranged ribs, it possesses excellent rigidity.
The machine tool, equipped with a Siemens CNC system, is precision-manufactured, offering strong stability, excellent precision retention, micron-level control, intelligent compensation, and stable operation.
High positioning accuracy, with a repeatability of ±0.005mm;

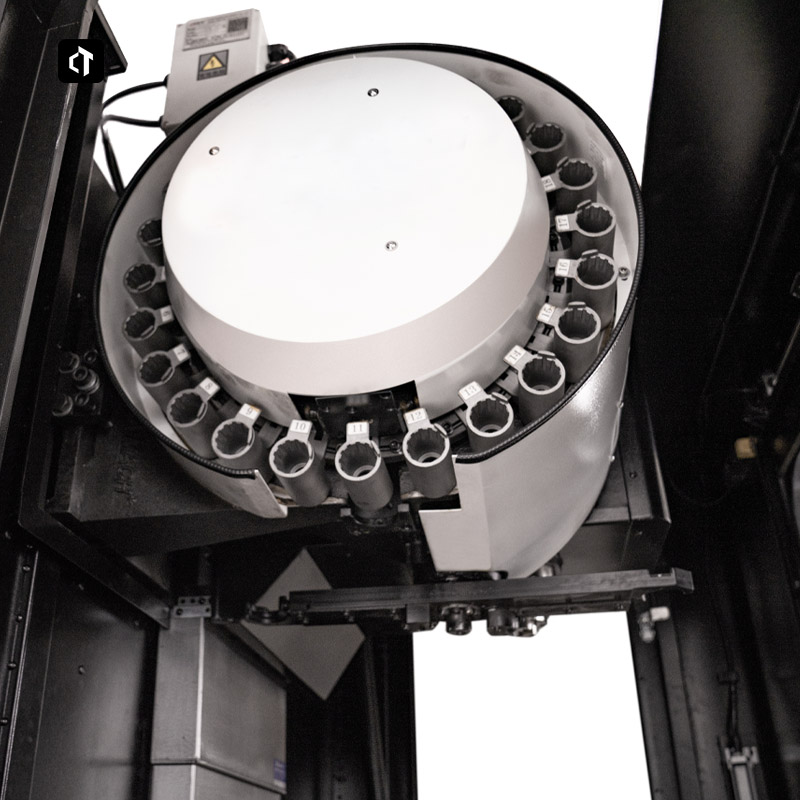

24T robotic tool magazine + BT30 quick-change spindle: The robotic arm offers fast tool changing speed and low failure rate, combined with the high-speed BT30 spindle, maximizing both tool changing and cutting efficiency, allowing for smooth and uninterrupted machining of small aluminum, copper, and steel parts.
The high-rigidity transmission system uses dedicated NSK angular contact bearings for the lead screw, ensuring low heat generation, high rigidity, and long service life during high-speed operation, providing core assurance for high-precision machining.
| Model | CTCNC600X |

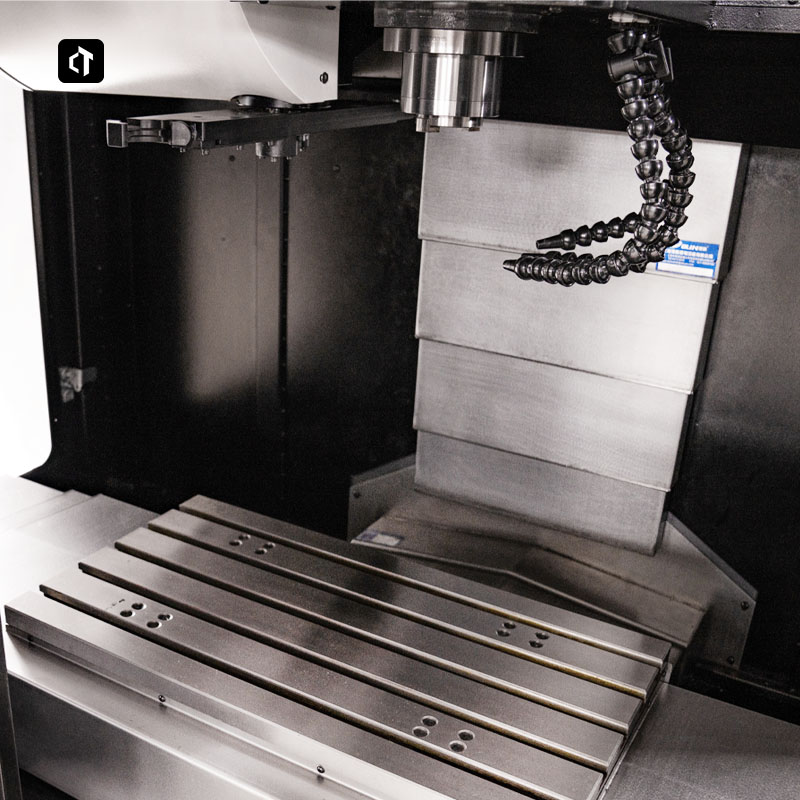

| Worktable (L*W) | 600*330mm |
| T-slot Specifications | 14mm*5*60mm |
| X/Y/Z Axis Travel | 500*290*420mm |
| Distance from Spindle End Face to Worktable | 130-580mm |
| Distance from Spindle Center to Column Surface | 423mm |
| Spindle Taper | BT30-90 |
| Tool Magazine Specifications | 24T |
| Tool Magazine Spindle Speed | 0~8000 r/min |
| Positioning Accuracy | 0.005mm |
| Repeatability | 0.005mm |
| Maximum Travel Speed of Three Axes | 10000mm/min |
| Spindle Servo Motor | 3.7KW |
| Three-Axis Servo Motor | 3.5N·M + 3.5N·M + 8N·M |
| Water Pump Power | 120w |
| External Dimensions | 1722*1456*2100mm |
| Packaging Dimensions | 1850*1800*2310mm |
| Net Weight | 2200KG |
| Gross Weight | 2350KG |
