CTCX30 11" x 29" Variable-Speed Combination Lathe/Mill

Turning, drilling & milling three-in-one machine tool

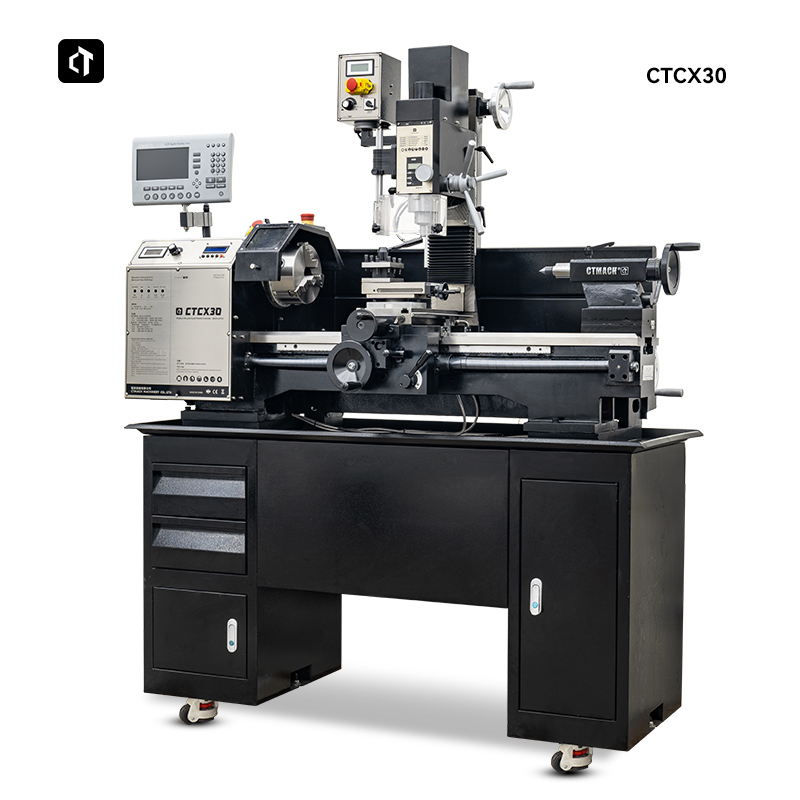

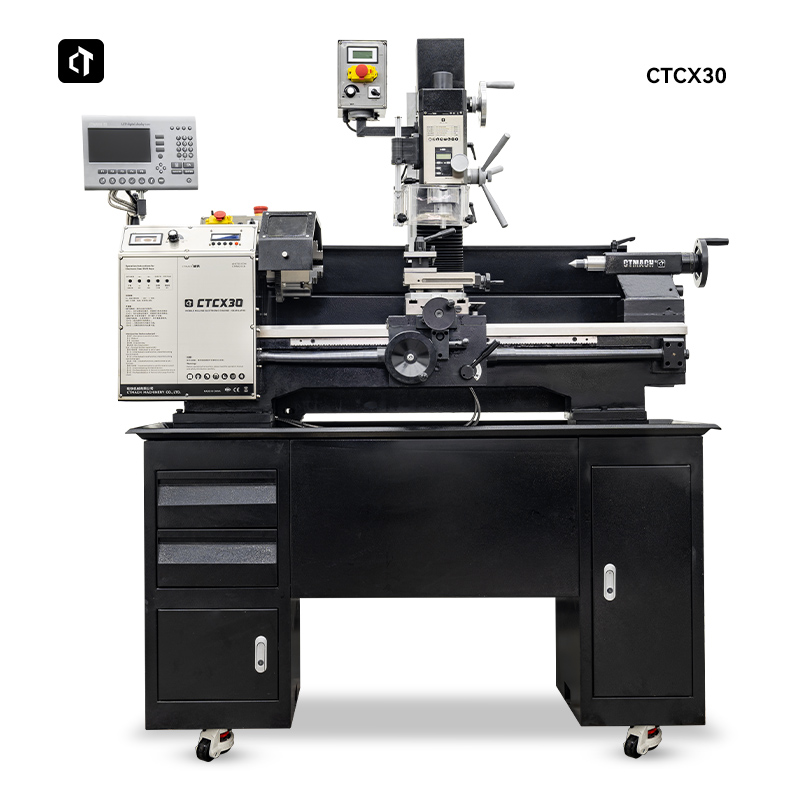

CTCX30 11" x 29" Variable-Speed Combination Lathe/Mill

This is a lathe/milling machine combination with a drilling and milling head that can move left and right, helping you turn, drill, mill, bore, boring, and face.

Model :
CTCX30
Swing over bed :
290mm
Swing over cross slide :
165mm
Distance between centers :
750mm
Drilling Capacity (steel / lron) :
30mm
Face milling capacity :
63mm

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

1. The CTMACH CTCX30 lathe/milling machine combination unit is a major updated version of the CTMACH CTCX30 with a removable milling head for more complex machining.

2. It is equipped with a complete range of workpiece clamping and tool clamping equipment and accessories to help you get started with turning, drilling, milling, boring, boring and facing.

3. Hardened and ground lathe guideways.

4. All guideways can be adjusted by wedge strips.

5. Camlock D1-4 large spindle bore Φ38mm

6. The hardened spindle is supported by high-precision 5-stage adjustable tapered roller bearings.

7. The tailstock is adjustable for taper turning ± 5 mm.

8. Removable milling head based on linear guides.

9. The drilling and milling head can be rotated ±90°.

10. Extra heavy-duty bracket.

11. Multifunctional wheel with height adjustment and locking function.

Model Number	CTCX30
Turning Parameters
Bed Rotation Diameter	290mm
Slide Rotation Diameter	165mm
Distance Between Centers	750mm
Bed Width	180mm
Spindle Speed Range	50~2000rpm
Spindle Bore Diameter	38mm
Spindle Taper	MT5

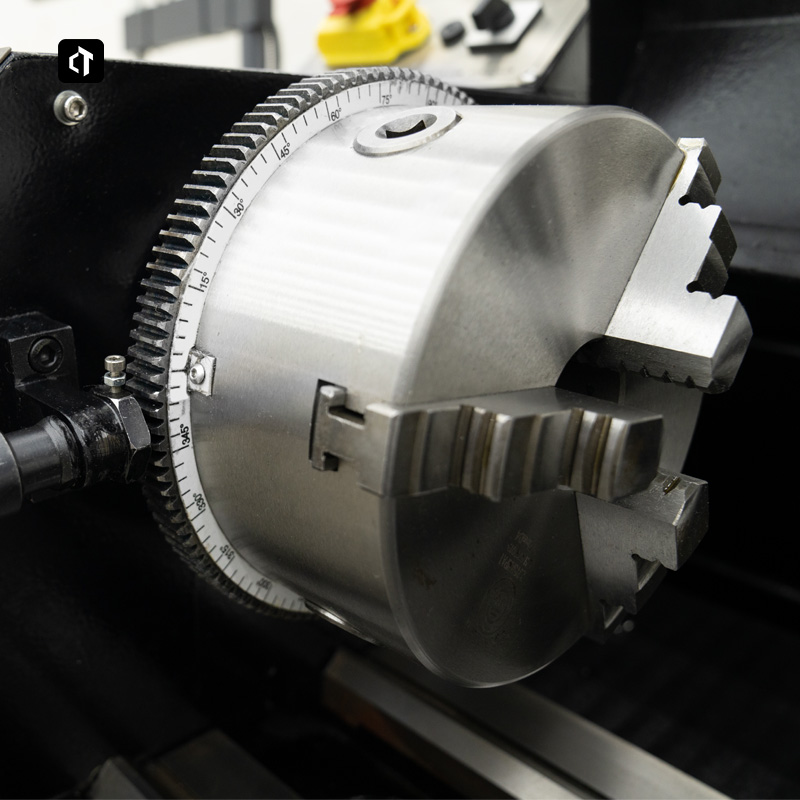

Chuck Specifications	160mm
Longitudinal Travel of Large Slide	560mm
Transverse Travel of Middle Slide	160mm
Tool Post Slide Travel	85mm
Metric/Imperial Thread Range	Program settings
Longitudinal/Transverse Feed Range	Program settings
Tailstock Taper	MT3
Tailstock Sleeve Travel	80mm
Motor	1.5Kw
Drilling/Milling Parameters
Drill Diameter	30mm
Vertical Milling Capacity	16mm
Face Milling Capacity	63mm
Spindle Taper	R8
Spindle Sleeve Travel	50mm
Spindle Speed	100-2250rpm
Motor	1.1Kw
Milling Head Left/Right Movement	500mm
Spindle Box Skew Angle	±90°
Drilling/Milling Head Box Lifting Travel	220mm
Distance from Spindle to Column	185mm
Distance from Spindle to Table	300mm
Table Dimensions	300*150mm
Number of T-Slots * Width	2*10mm
Other
Net weight (support frame)	432Kg
Gross weight (support frame)	587Kg
External dimensions	15176183cm
Packaging dimensions	15985195cm
