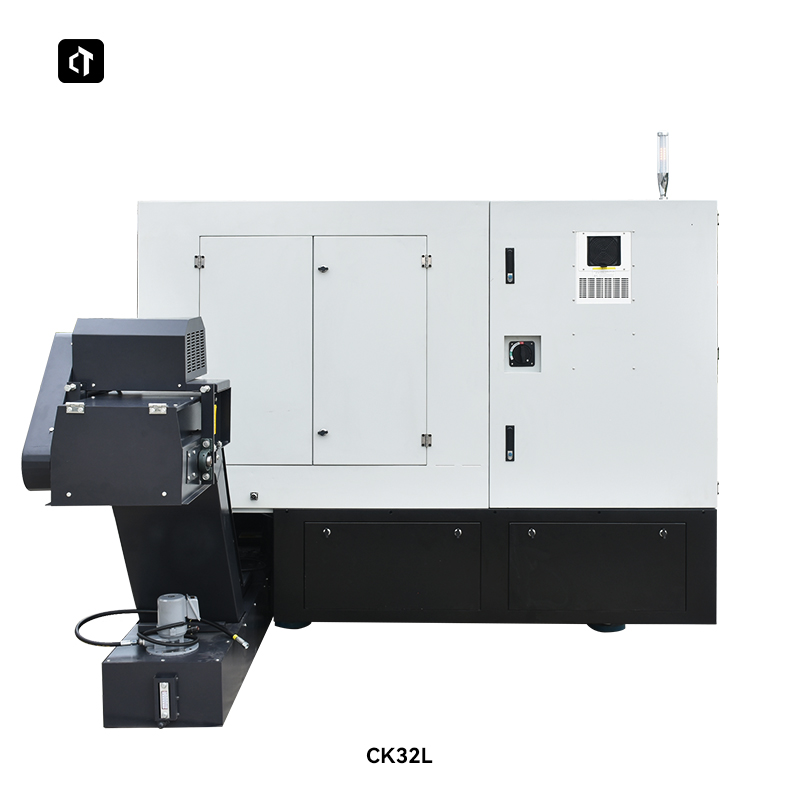

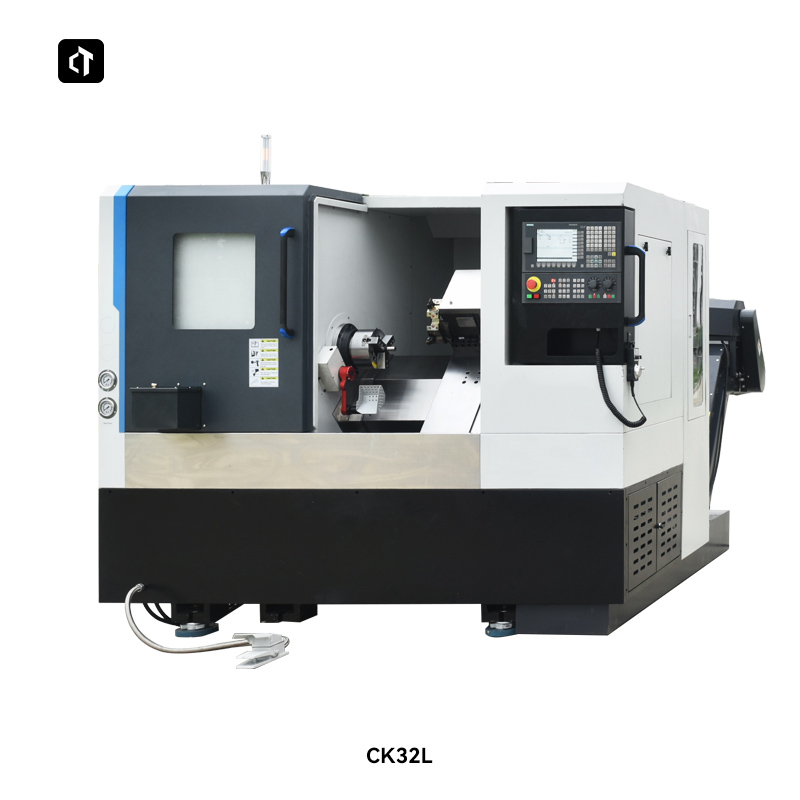

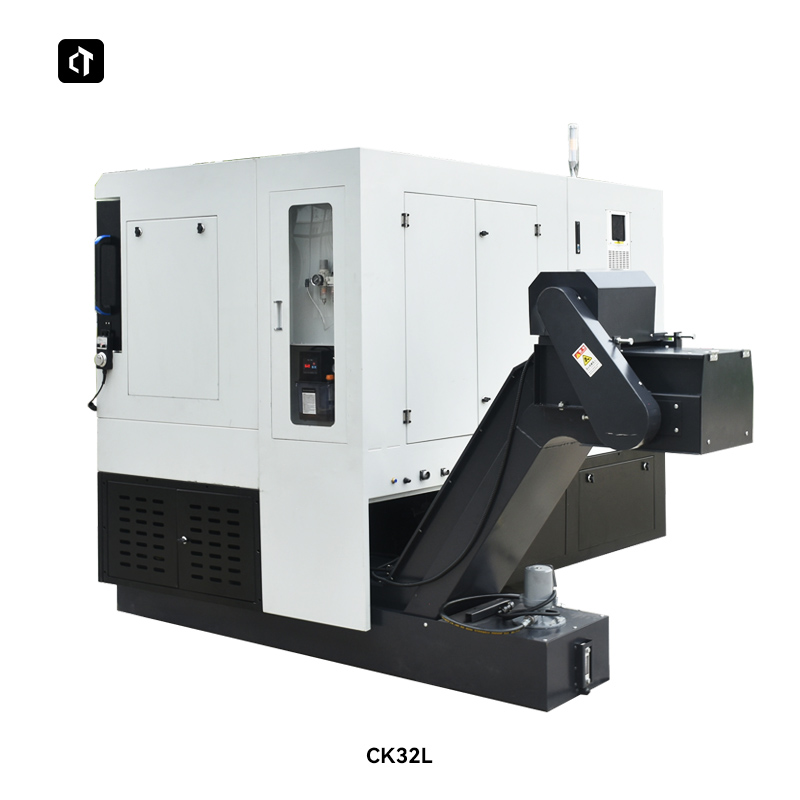

CTMACH CK32L Slant CNC lathe

CTMACH CK32L Slant CNC lathe

The CTMACH CK32L machine tool can machine cylindrical, conical, circular, end faces, and grooves, and can drill holes to machine various types of threads. Its integrated slant bed structure is leak-proof, highly rigid, and easy to operate. With its superior performance, robust rigidity, long-term stability, and higher precision, the CTMACH CK32L CNC lathe will provide you with perfect machining services.

Model :
CK32L
Swing over bed :
320mm
Swing over cross slide :
160mm
Distance between centers :
500mm
Motor :
5.5KW

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features:

High precision slant CNC lathe with Taiwan screw & linear guideway.

High precision cartridge type spindle ensure the rigidity and precision.

Taiwan high precision C3 grade ball screw ensure positioning accuracy more stable.

Siemens, Fanus, Syntec, Fagor controller as optional.

Monoblock cast iron of the whole machine ensure high rigidity.

Standard Configuration：1、GSK 980TDL controller. 2、GSK feed motor and driver. 3、Cartridge type spindle. 4、5.5kw GSK servo spindle motor. 5、Hydraulic 3-jaw chuck 200mm. 6、Hydraulic tailstock. 7、Hydraulic 8 station turret. 8、Work light. 9、Automatic lubrication system. 10、Automatic cooling system. 11、Taiwan screw and Linear guide rail.

Optional Configuration:1、Siemens, Fanuc, Syntec, Fagor Controller. 2、6 or 8 station electric turret. 3、8 station driven tool turret. 4、Spring collet. 5、Automatic bar-feeder. 6、Conveyor.

Model	CK32L
Distance between centers	500mm
Max. swing over bed	320mm
Max. swing over cross slide	160mm
Max. Spindle speed	4000rpm
Spindle bore	56mm
Spindle nose	A2-5
Chuck diameter	160mm
X axis travel	210mm
Z axis travel	500mm
X/Z axis Rapid traverse	15/15 m/min
TurretType	Hydraulic turret
Tool station number	8
Tool holder	20*20mm
Tailstock Sleeve Type	Hydraulic sleeves
External diameter	60mm
Max. travel	80mm
Taper of bore	MT4
Spindle motor power	5.5 KW
Coolant pump power	120W
Type of guideway & screw	Taiwan linear guideway & Screw
Overall dimension(LWH)	2650* 1550*1750mm
Packing size(LWH)	2850* 1750*2150mm
Net/Gross weight	2400/2700kg

Hot Tags : Automatic Lathe Slant Bed Turning Center Inclined Guideway Lathe 45-Degree Slant Bed Slant Bed CNC Lathe
