The precision achieved with CNC machining makes mass production a reality.
The CTCNC36C is driven by a powerful 5.5kW motor capable of spinning the A2-5 precision spindle at speeds from 100–3000 RPM.
The X/Z axes are equipped with high-precision linear guides, achieving X/Z repeatability of 0.01mm, flatness of 0.03/300mm, and surface roughness of 0.8-1.6. It operates at extremely high speeds, easily handling complex tolerances.
Model :
CTCNC36CSwing over bed :
350mmSwing over cross slide :
130mmMotor :

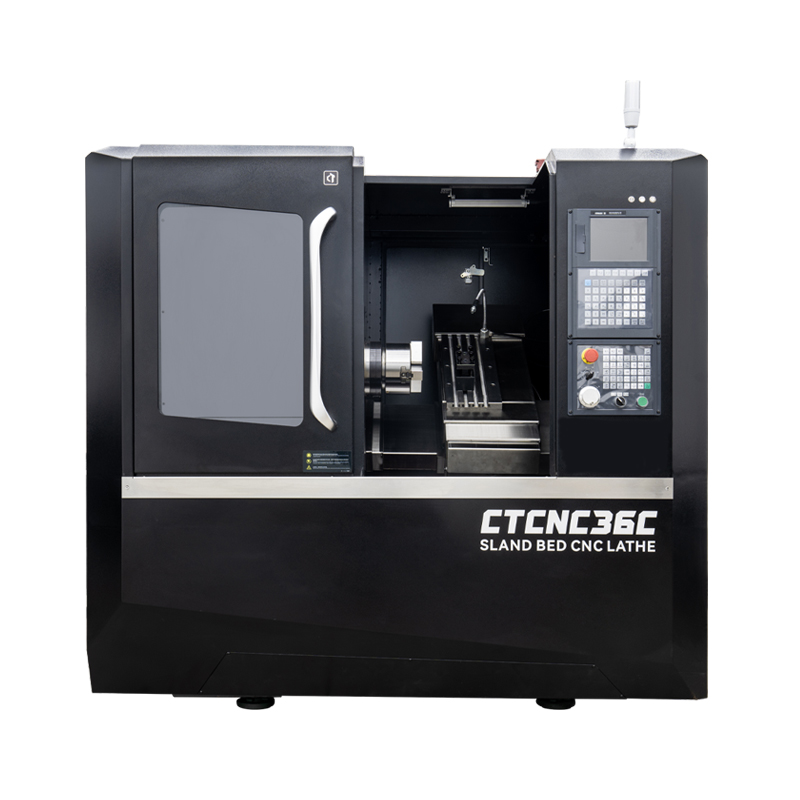

5.5KWCompact, high-rigidity slant bed turning center.
The slant bed features a triangular load-bearing structure, providing strong load-bearing capacity and preventing deformation during machining of large workpieces and heavy cutting, ensuring stability even under heavy-duty cutting.
High-performance CNC system with feed servo drive and servo motors ensures high precision and strong overload resistance.
High-precision linear guides on the X/Z axes ensure accurate positioning, extremely high speed operation, and effortless handling of complex tolerances.
The traditional slant bed design utilizes gravity-fed natural chip removal, eliminating chip entanglement and making it suitable for high-intensity automated continuous production.
The high-rigidity spindle unit provides ample torque at low speeds and smooth rotation at high speeds, making roughing and finishing operations effortless.
It features a complete automatic lubrication and cutting fluid circulation system.
Three-color status indicator lights provide clear visibility of the operating status.
| Model | CTCNC36C |
| Servo Motor | Absolute value servo motor |
| Machine Tool Type (Integral) | |
| Bed Mechanism | Slant bed roller linear guide |
| Bed | X-axis slide 700 |
| Z-axis 300*1000 | |
| Protection Type | Stainless steel full guardrail |
| Working Range | |
| Maximum Rotation Diameter | 350mm |
| Maximum Rotation Diameter via Cart | 130mm |
| Maximum Length from Spindle End Face to Cart | 380mm |
| Tool Mounting Center Height | 65mm |
| X、Z Axis Travel | |

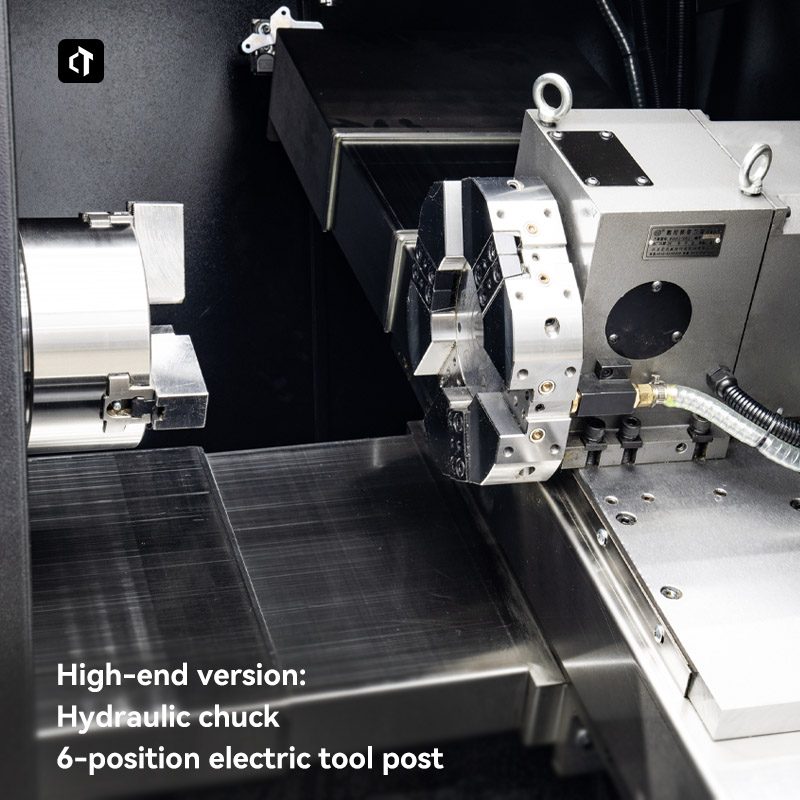

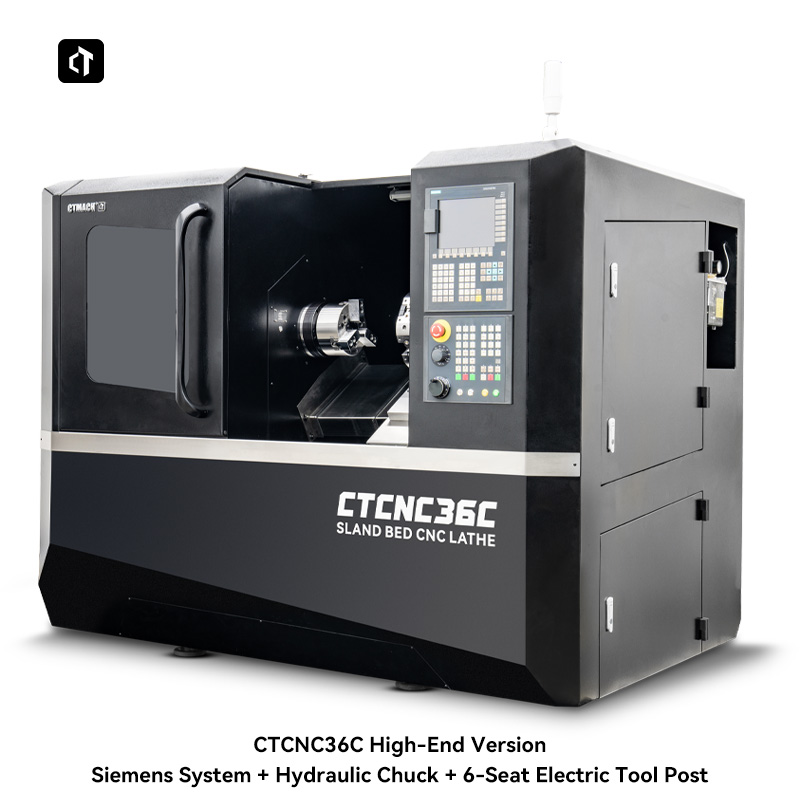

| Assembled: Hydraulic Chuck + 6-Station Turret Machine | 584mm(X）、227mm（Z) |

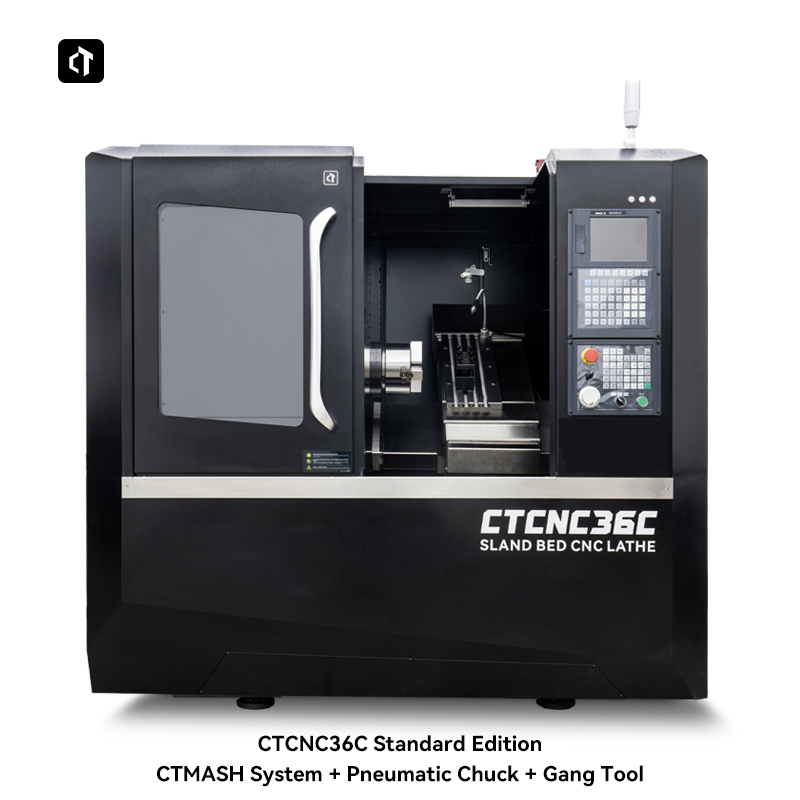

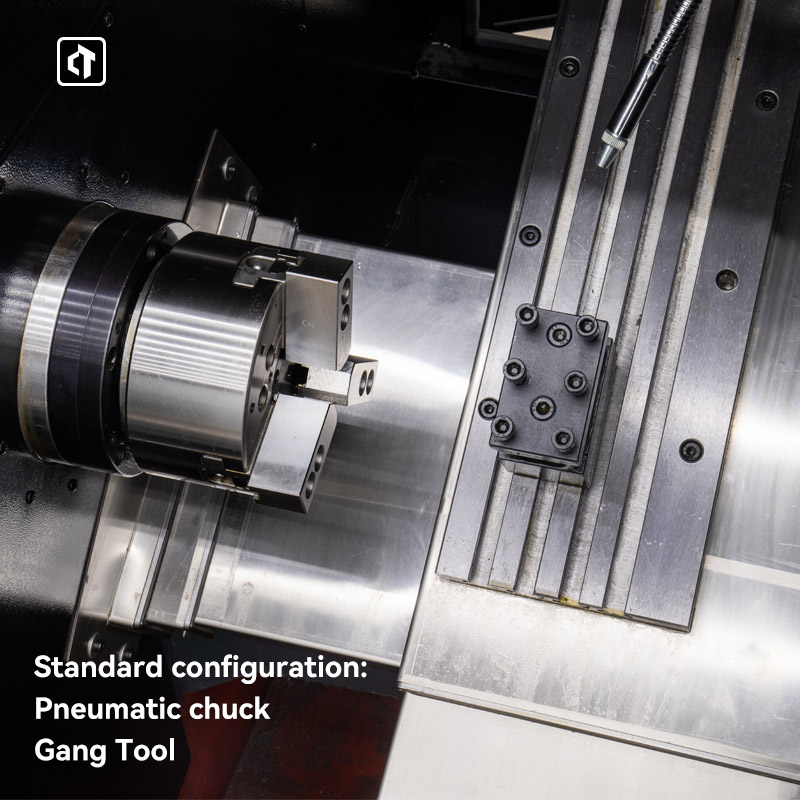

| Assembled: Pneumatic Chuck | 700mm(X）、246mm（Z) |
| Maximum X-Axis Travel Speed | 15000mm/min |
| Maximum Z-Axis Travel Speed | 15000mm/min |
| Spindle Section | |
| Applicable Chuck Specifications for Spindle | φ52mm |
| Spindle Flange Interface | A2-5 Unit Spindle |
| Spindle Head Runout | 0.005mm |
| Spindle Bearing Specifications | 7215、7213、P5 |
| Spindle Inner Diameter | 22° |
| Spindle Through-Bore Diameter | 42mm |
| Maximum Spindle Speed | 100-3000r/min |
| Spindle Motor Power | 5.5KW |
| Optional Spindle Chuck | Pneumatic/hydraulic chuck |
| Leadscrew Style | Ball screw |
| Tool Post Section | |
| Applicable Tool Holder | 20*20mm |
| Accuracy Section | |
| X-axis or Repeatability Accuracy | 0.01mm |
| Z-axis or Repeatability Accuracy | 0.01mm |
| Diameter Consistency | 0.03/300mm |
| Flatness | 0.03/300mm |
| Roughness | 0.8-1.6 |
| Machine Tool Dimensions | 1935*1352*1850mm |
| Machine Tool Weight | 1400kg |
Ctmach Machinery Co.,Ltd. is committed to providing specially designed products, technical support and customer service at the lowestcost. Our focus is to provide tools and resources to help clients achieve their creative goals and help clients transform concepts into actual products. Whether you are engaged in R&D, education, short-term production or just a creative entrepreneur, Bite's small machine tools can allow you to meet your needs more easily, faster and more economically. Specializing in small household machine tool customization centers, household lathes, household drilling and milling machines, small multi-functional turning, drilling and milling
