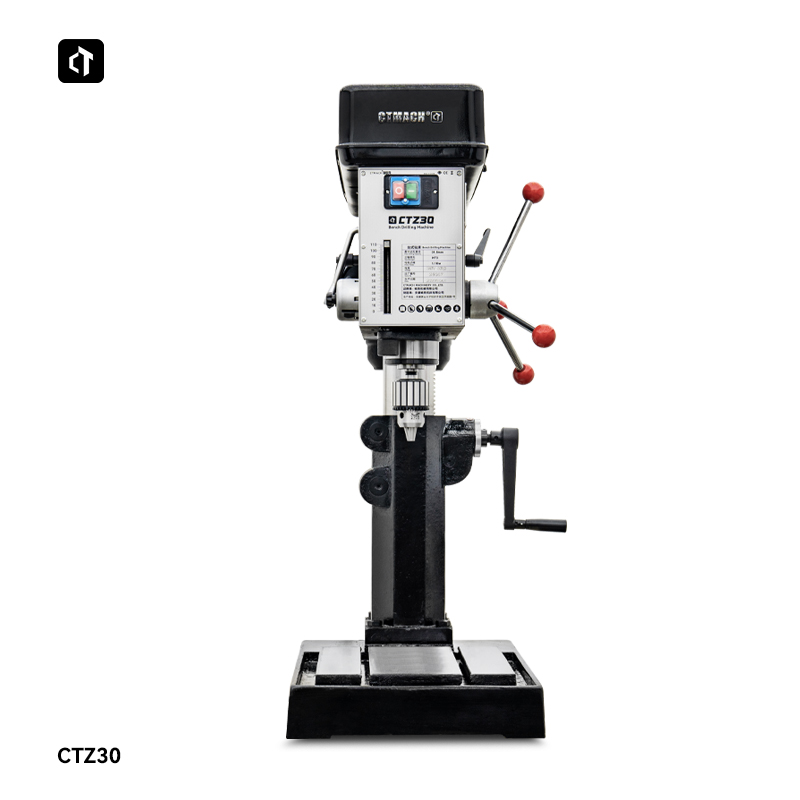

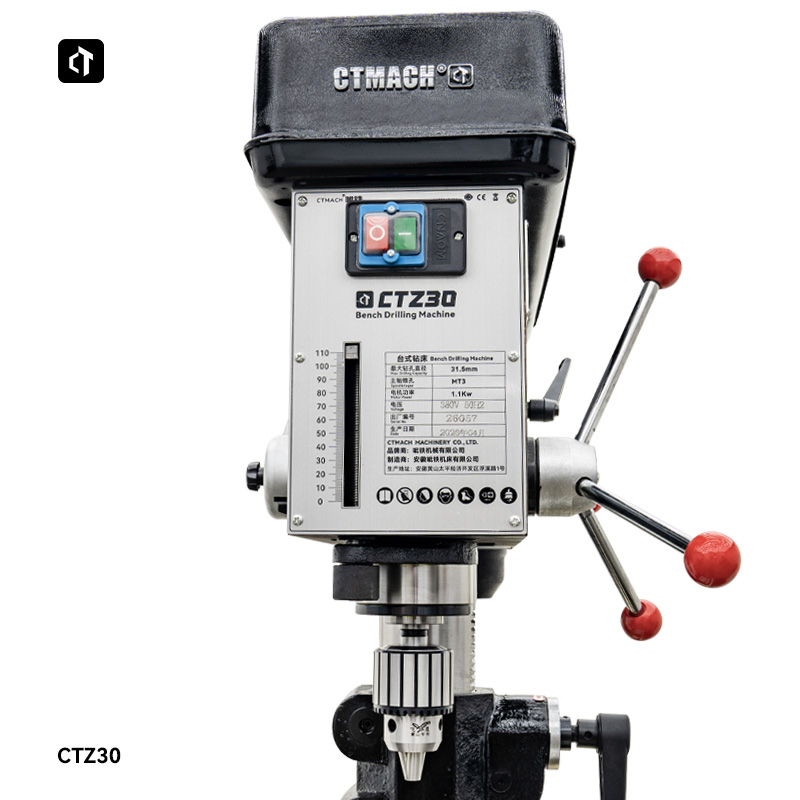

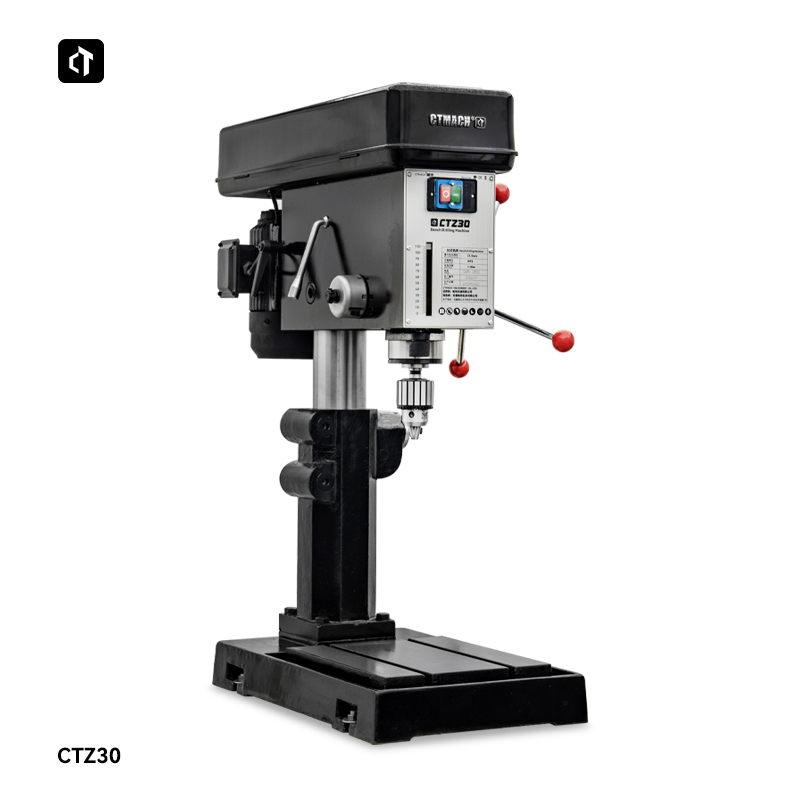

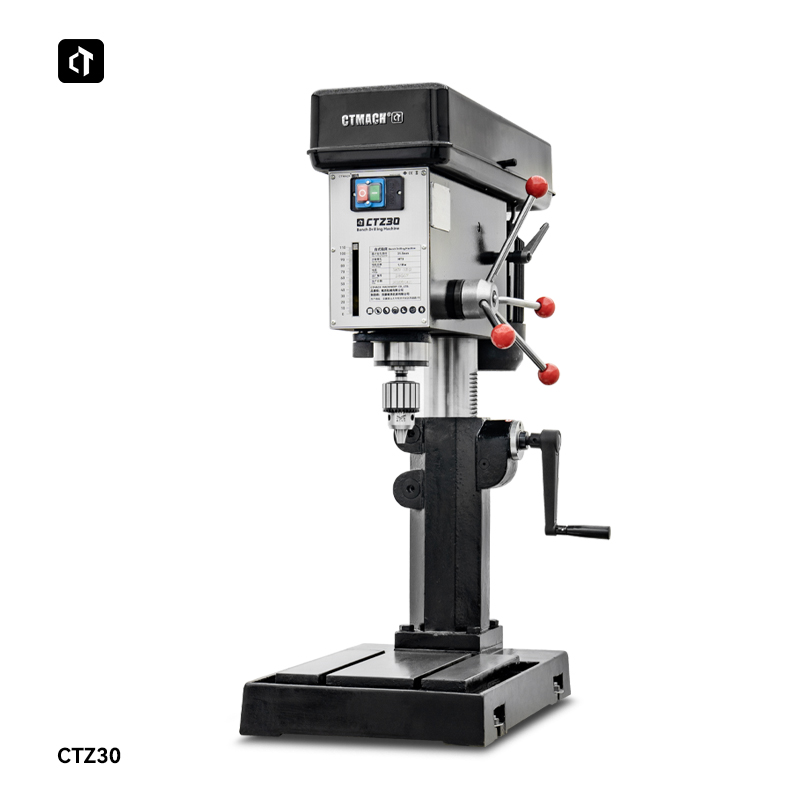

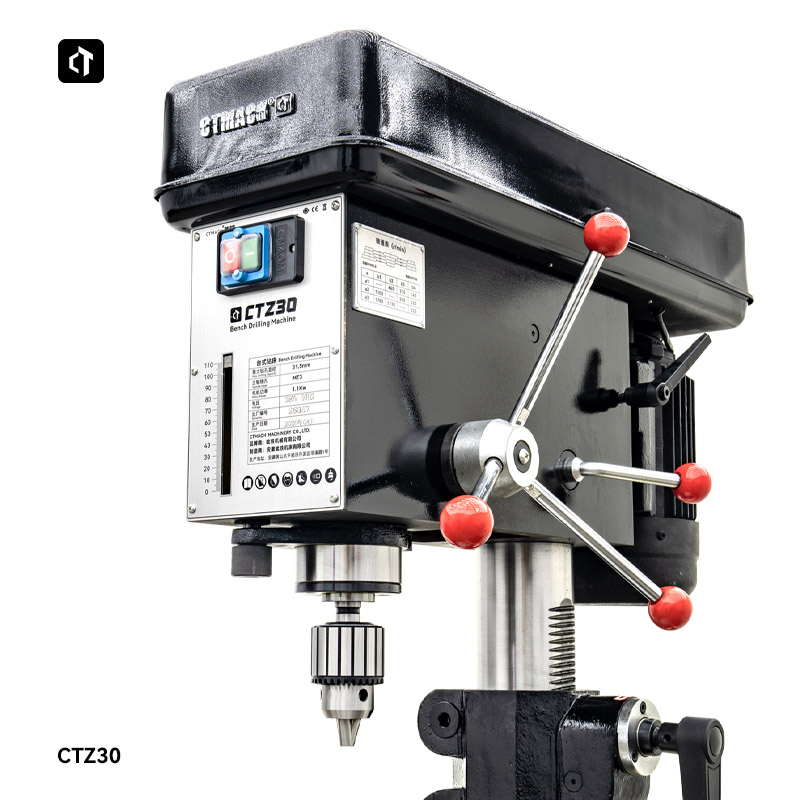

CTZ30 Benchtop Drill Press

CTZ30 Benchtop Drill Press

The CTZ32 benchtop drilling machine is suitable for drilling, reaming, and straightening holes in metal and other materials, as well as drilling countersunk holes and electrical end faces.

It is widely used in the instrumentation industry, machinery manufacturing departments, and repair departments for both single-piece and batch production.

Model :
CTZ30
Motor :
1100W
Drilling Capacity :
31.5mm
Spindle Travel :
110mm

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Unique force-boosting design provides superior manual feed machining capability, making machining easy and labor-saving;

The machine tool is equipped with a cooling system.

High machining accuracy and good rigidity;

Gear drive ensures high transmission efficiency and large cutting torque; gear hardening results in high load-bearing capacity and long service life; primarily suitable for single-piece and batch production in the instrument industry, machinery manufacturing plants, and repair shops.

Model	CTZ30
Maximum Drilling Diameter	31.5mm
Maximum Spindle Stroke	110mm
Spindle Head Travel	350mm
Lower End Taper Hole of Spindle	MT3
Spindle Speed Range	140~1780 RPM
Number of Spindle SpeedLevels	9
Distance from Spindle Centerline to Column Surface	235mm
Base Working Surface Dimensions	320*350mm
Distance from Spindle End to Base Working Surface	350—700mm
Spindle Head Rotation Angle Around Column	±180º
Motor Power	1.1kw
Machine Tool Dimensions (L * W * H)	8454301250mm
Packaging Dimensions (L * W * H)	9051111cm
Machine Tool Weight (N.W.)	215kg
