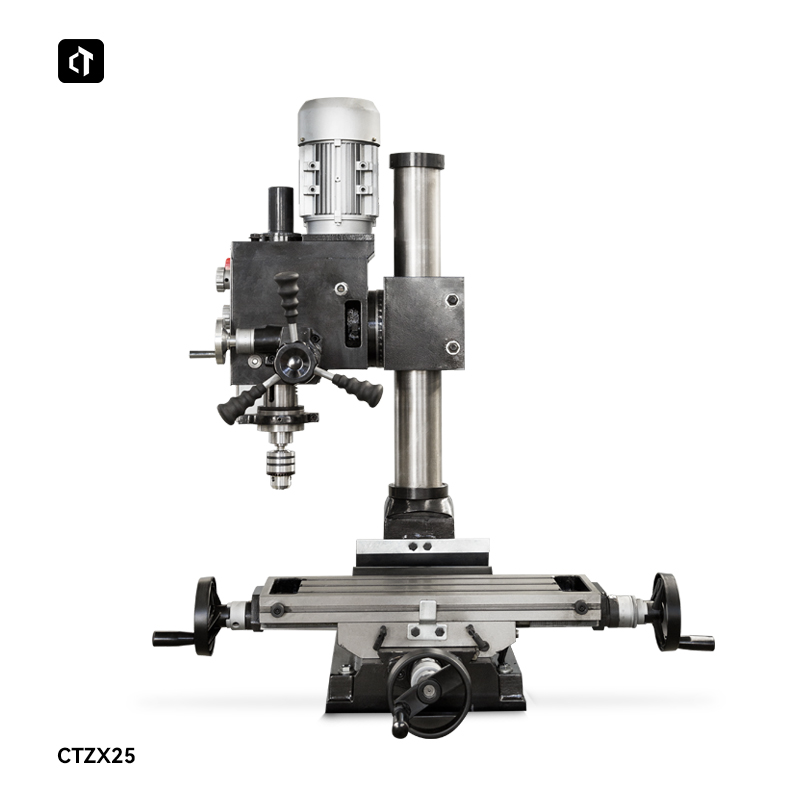

Designed for precision drilling, the CTZX25 cylindrical gear head milling machine features intuitive functions for maximum accuracy.
Model :
CTZX25Drilling Capacity (steel / lron) :
25mmFace milling capacity :
52mmEnd milling capacity :
16mmMotor :
750wFeatures
1. The main shaft adopts gear transmission, 6-speed transmission (including high and low speed gears), which is convenient for speed change.
2. The main spindle box can be raised and lowered, rotated 360° around the column, and tilted left and right ±90°
3. The main spindle box worktable is lifted and lowered using a worm gear and worm mechanism, which is easy to operate.
4. The drilling depth can be controlled by the ruler and fixed distance nut fixed on the sleeve, which is convenient and accurate.
5. The XY axis adopts dovetail guide rails with adjustable taper inserts, which are wear-resistant, can be overloaded, face contact, and have good rigidity.
| Model | CTZX25 |
| Drilling Capacity (lron) | 25mm |
| Face Milling Capacity | 52mm |
| End Milling Capacity | 16mm |
| Table size | 520x160mm |
| T-axis stroke | 16mm |
| Table travel (X-, Y-Axis) | 290，140mm |
| Spindle taper | MT3 |
| Spindle stroke | 85mm |
| Max. Spindle to Column | 203mm |
| Max. Spindle to Table | 445mm |
| Head tilt | ±45° |
| Spindle speeds | 95~1420rpm |
| Motor Power | 750W |
| N.W. | 132KG |
| Overall dimensions | 680x680x1030mm |
