CTZD45V-9" x 31" High-precision metal Mill/Drill

High Efficiency Drilling Milling Machine

Drilling/Milling Machine for Metal Working

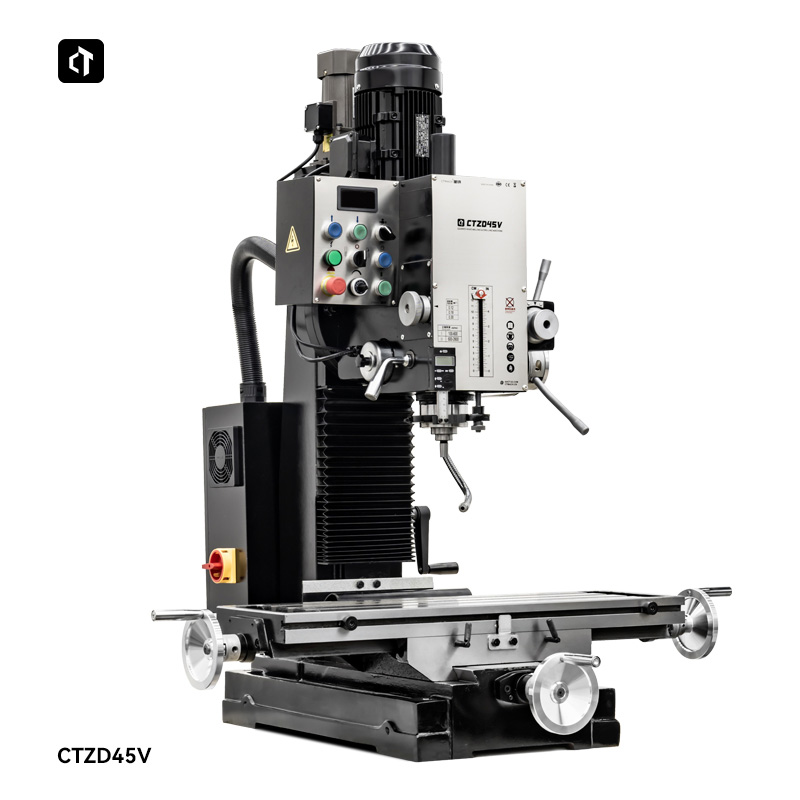

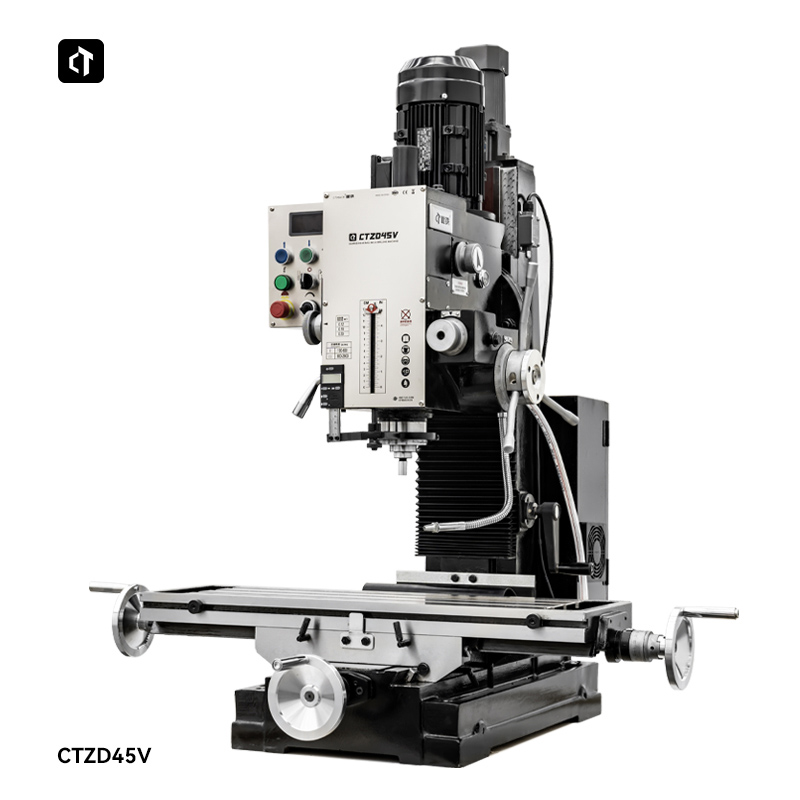

CTZD45V-9" x 31" High-precision metal Mill/Drill

This CTZD45V machine can be used for drilling, reaming and expanding holes up to 45 mm in cast iron and threading screws up to M30, milling up to 80 mm wide and notch up to 32 mm. It is also suitable for cutting and frontal milling.

Model :
CTZD45V
Drilling Capacity (steel / lron) :
45mm
Face milling capacity :
80mm
End milling capacity :
32mm
Tapping Capacity :
M30
Motor :
1500W

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

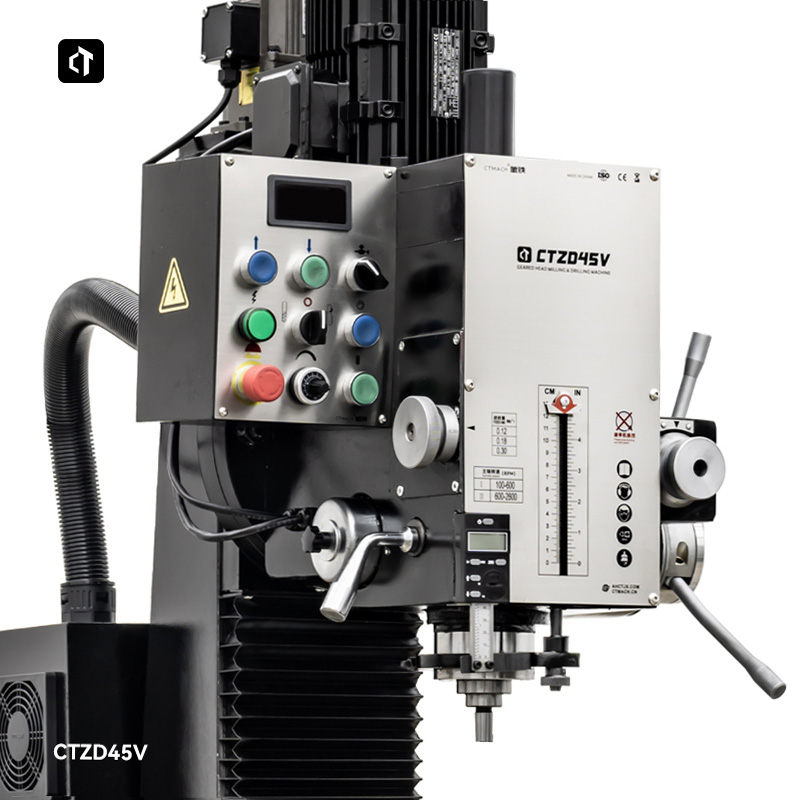

1.5kW high-power three-phase motor, frequency converter, 220V input, continuously variable spindle speed control.

Spindle speed up to MAX 2500 RPM. Employs high-precision SKF bearings.

Automatic milling head lifting and automatic spindle feed.

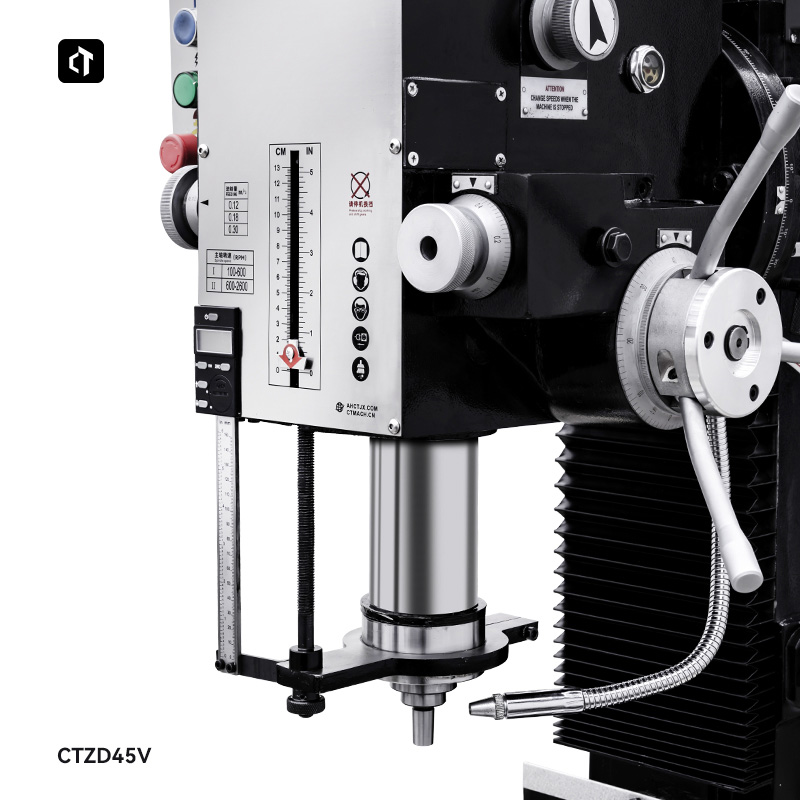

Spindle depth limit and automatic tapping reverse, enabling batch drilling and tapping. Digital spindle depth display improves milling feed accuracy.

The worktable and column utilize dovetail guideways for sufficient rigidity and stability.

Model	CTZD45V
Maximum drilling diameter	45mm
Maximum face milling capacity	80mm
Maximum vertical milling capacity	32mm
Table size	800x240mm
Spindle automatic feed range	0.06~0.30/prm
X-axis travel	580mm
Y-axis travel	275mm
Z-axis travel	450mm
Spindle taper	MT4
Spindle travel	130mm
Maximum taper capacity	M30
Distance from spindle axis to column guide rail	260mm
Spindle head turn angle	±45
Spindle continuously variable transmission (CVT)	100~600rpm 600~2500rpm
Spindle automatic feed	0.12、0.18、0.30mm/r
Motor power	1.5KW
Dimensions	115107143cm
Packaging dimensions	10292115cm
Net weight	310kg
Gross weight	335kg
