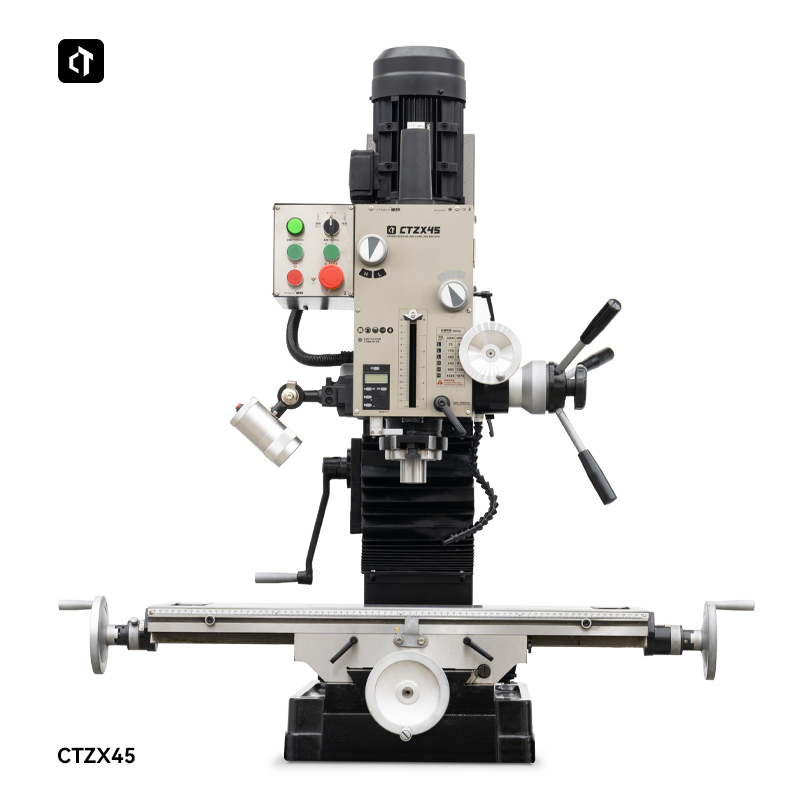

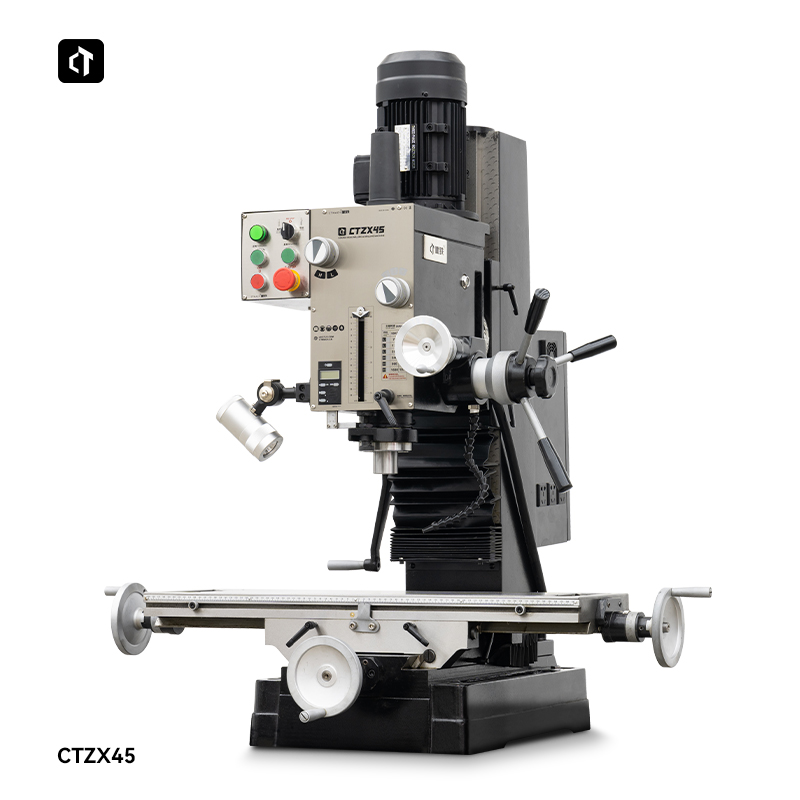

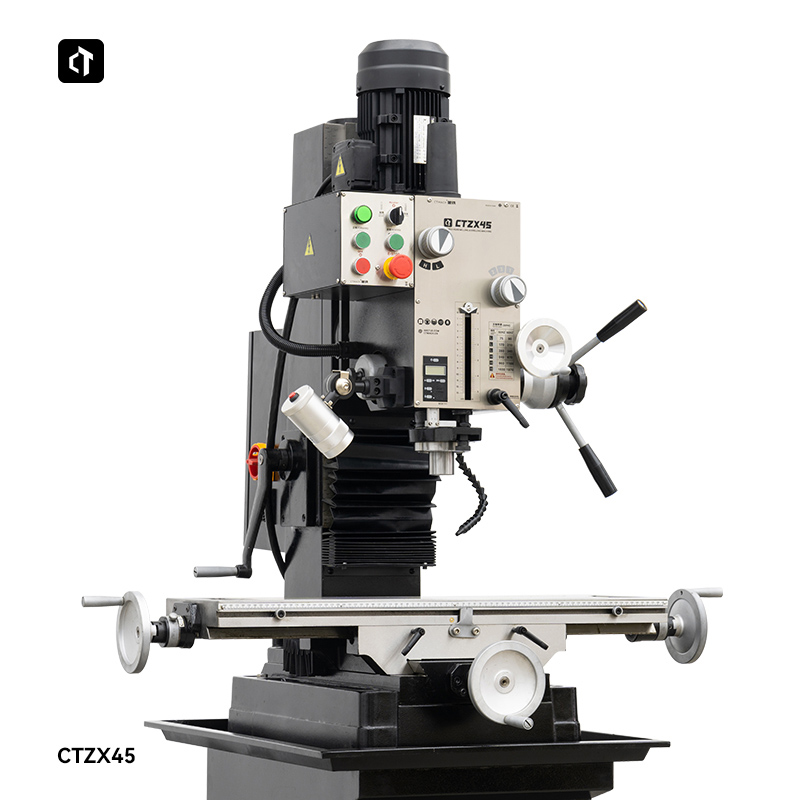

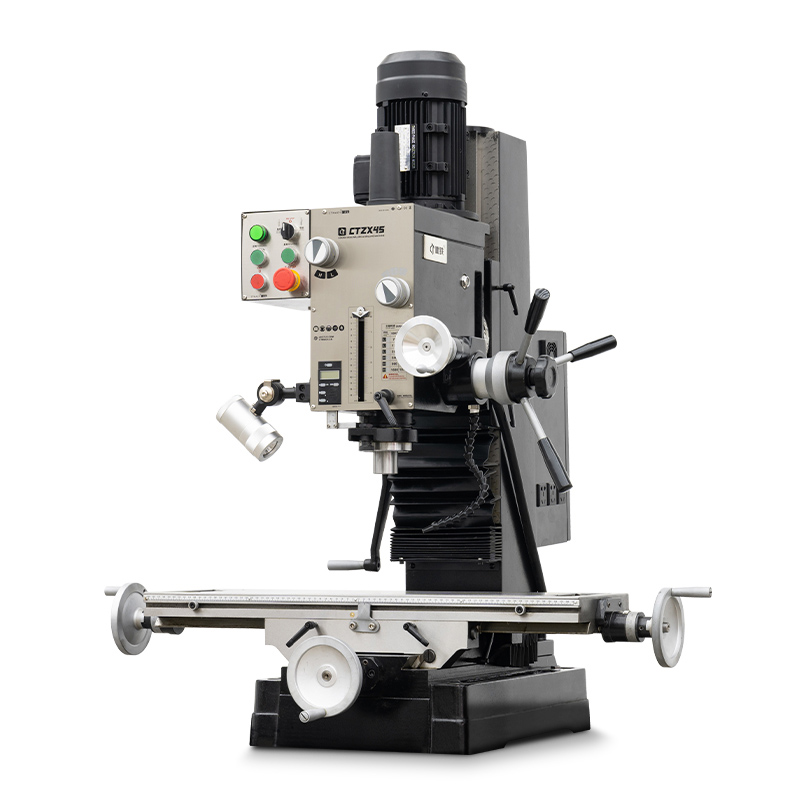

CTZX45-9" x 31" R8 High-precision metal Mill/Drill

Drilling/Milling Machine for Metal Working

High Efficiency Drilling Milling Machine

CTZX45-9" x 31" R8 High-precision metal Mill/Drill

The machine can be used to drill, ream and expand holes up to 45 mm in cast iron, tap bolts up to M30 mm, mill widths up to 80 mm and mill slots up to 32 mm. It is also suitable for cutting and face milling.

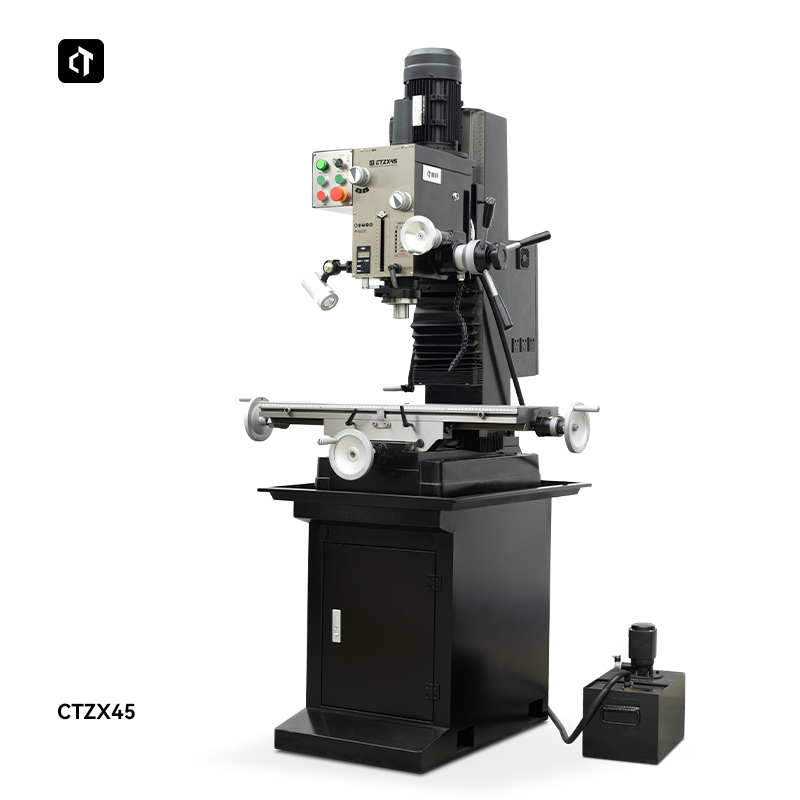

The CTZX45 version comes standard with a large work surface measuring 800 x 240 mm and a cooling system.
The machine is in stock immediately.

Model :
CTZX45
Drilling Capacity (steel / lron) :
45mm
Face milling capacity :
80mm
End milling capacity :
32mm
Tapping Capacity :
M30
Motor :
1500w

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

It is suitable for drilling, reaming and boring on metal materials and other materials, and can also perform end milling, end milling and tapping.
1.5Kw high-power three-phase motor, frequency conversion processing, 220V input, can achieve 6-speed gear speed change. The speed range is wide and practical. The spindle speed can reach MAX 1970RPM.
Adopt high-precision SKF bearings.

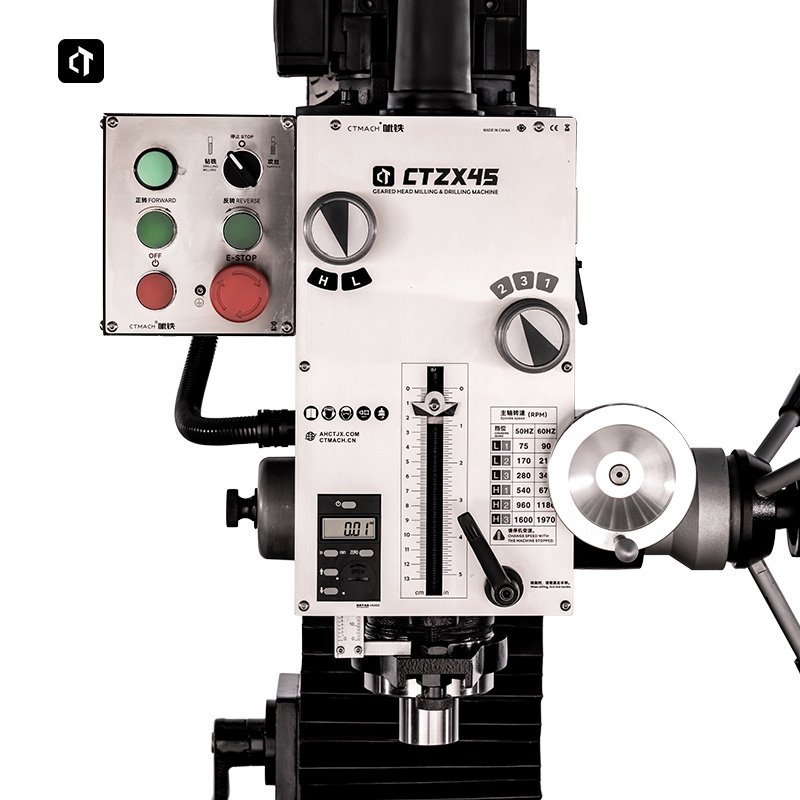

Oil-immersed spindle box, gear quenching and grinding treatment, the silent effect is quieter than the stepless speed regulation form. Spindle depth limit, tapping automatic reversal, can realize batch drilling and tapping.
Spindle depth digital display can improve milling feed accuracy.
The worktable and column adopt dovetail guide rails with sufficient rigidity and stability.

Model	CTZX45
Maximum drilling diameter	45mm
Maximum face milling cutter diameter	80mm
Maximum end milling cutter diameter	32mm
Maximum tapping capacity	M30
Spindle travel	125mm
Maximum distance from spindle end to worktable	450mm
Spindle box left and right tilt angle	±90°
Spindle taper	R8
Spindle speed	75~1600 RPM(50HZ）90~1970 RPM(60HZ）
Worktable area	800x240mm
Worktable Y travel	190mm
Worktable X travel	560mm
Minimum distance from spindle axis to column surface	260mm
Main motor power	1.5Kw
Machine tool dimensions (length × width × height)	1150×970×1540mm
Machine tool weight (net weight)	320Kg
