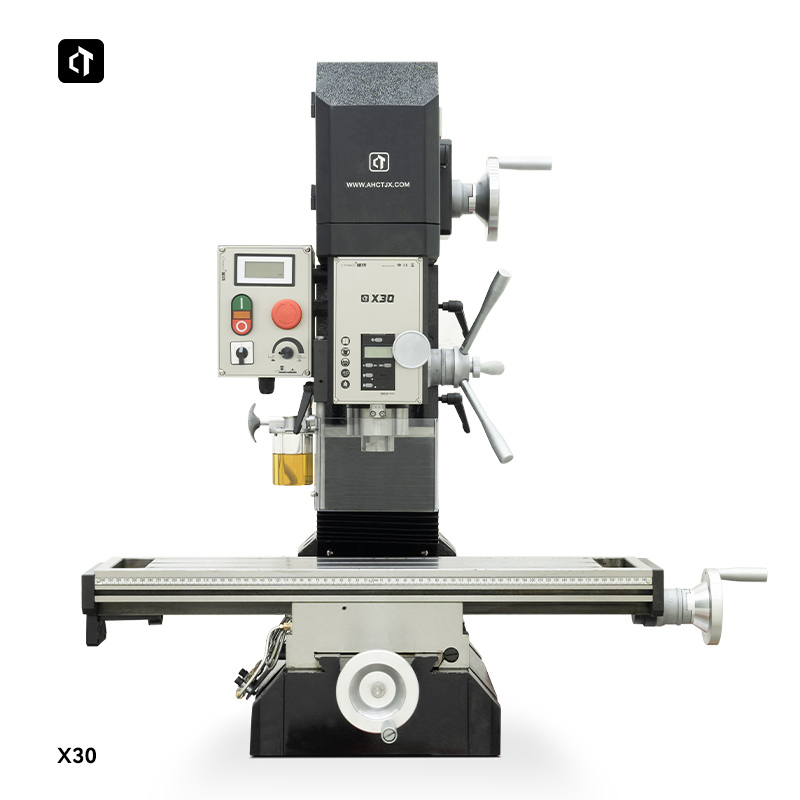

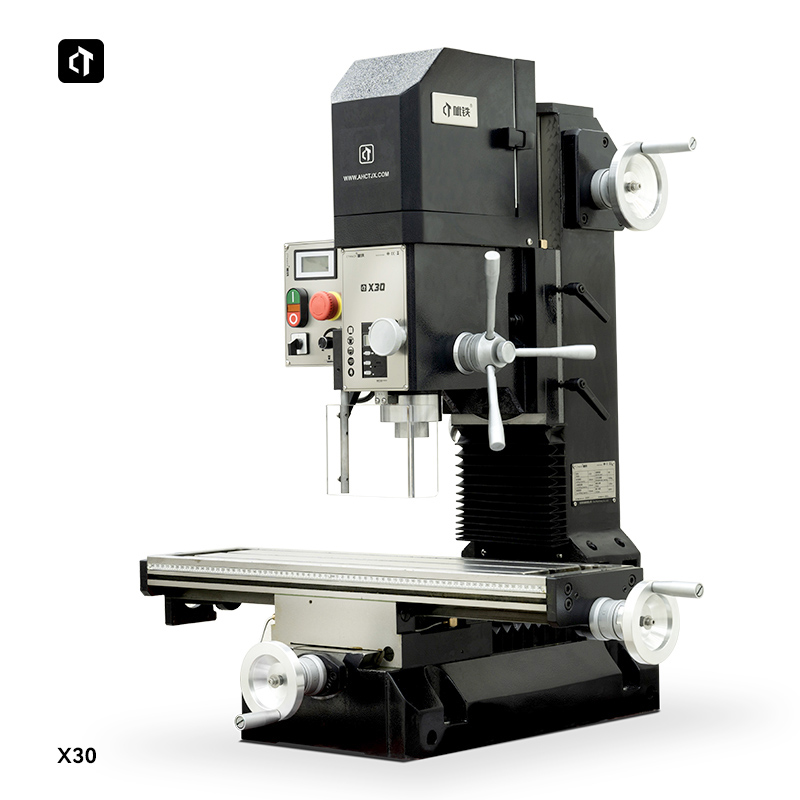

The X30 drilling and milling machine is designed for customers who want to convert to CNC machines. Its overall structure and rigidity are far superior to ordinary manual milling machines.
Model :
X30Drilling Capacity (steel / lron) :
30mmFace milling capacity :
63mmEnd milling capacity :
20mmMotor :
1500wFeatures

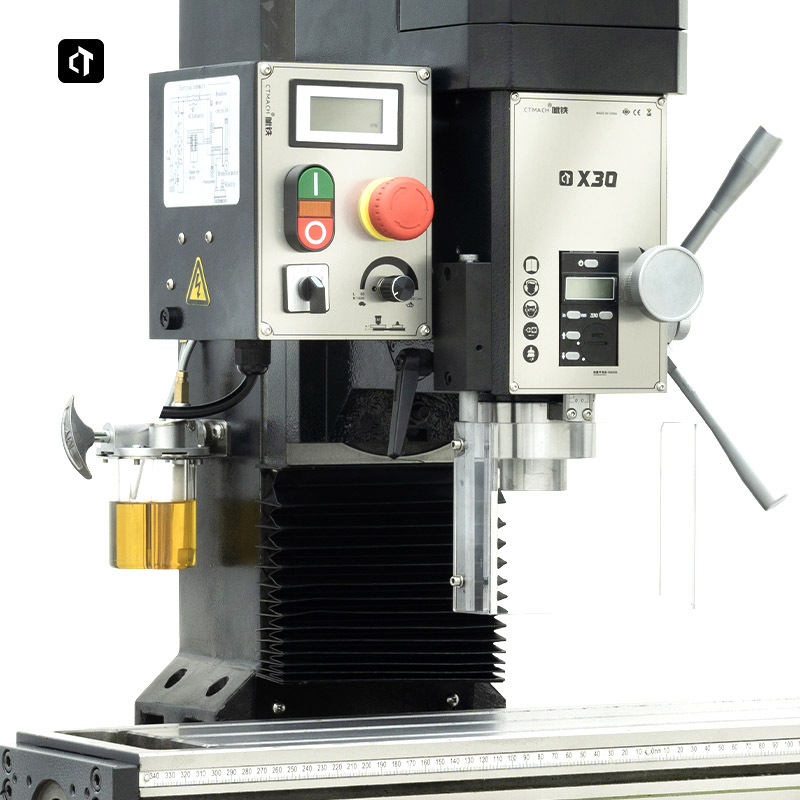

This prototype is designed based on a small CNC milling machine and machining center, and embodies the concept of precision manufacturing. It is equipped with an original three-axis ball screw and an oil circuit pump system to ensure accurate transmission and efficient lubrication; the thickened columns, base and workbench create a small, exquisite but rigid structure to provide stable support for high-intensity processing.
At present, it has demonstrated excellent performance as a manual machine tool. What is more worth mentioning is that the upgrade potential is huge - the machine is pre-set with a three-axis motor mount, and there is no need to change the mechanical structure. Only by adding a three-axis motor and a CNC system, it can easily transform from a manual mode to a CNC drilling and milling machine, meeting diverse processing needs and providing a convenient option for your production upgrade.
| Model | X30 |
| Drilling diameter | 30mm |
| End milling diameter | 20mm |
| Face milling diameter | 63mm |
| Worktable size | 700mm*180mm |
| T-slot specifications | 12mm*3 |
| Worktable load-bearing capacity | 80KG |
| Spindle taper | R8 |
| Spindle sleeve travel | 70mm |
| Distance from spindle end face to worktable | 50~340mm |
| Distance from spindle center to column guide surface | 210mm |
| Worktable travel (XY) | 480*180mm |
| Spindle head travel (Z) | 280mm |
| Spindle speed range | L 50~1500，H 1400~3000RPM |
| Screw accuracy grade | P4 |
| Spindle motor power | 1.5KW |
| Machine tool appearance dimensions | 880*780*980mm |
| Machine tool packaging dimensions | 74*74*108cm |
| Machine tool weight | 150Kg |
| Packaging weight | 175Kg |
