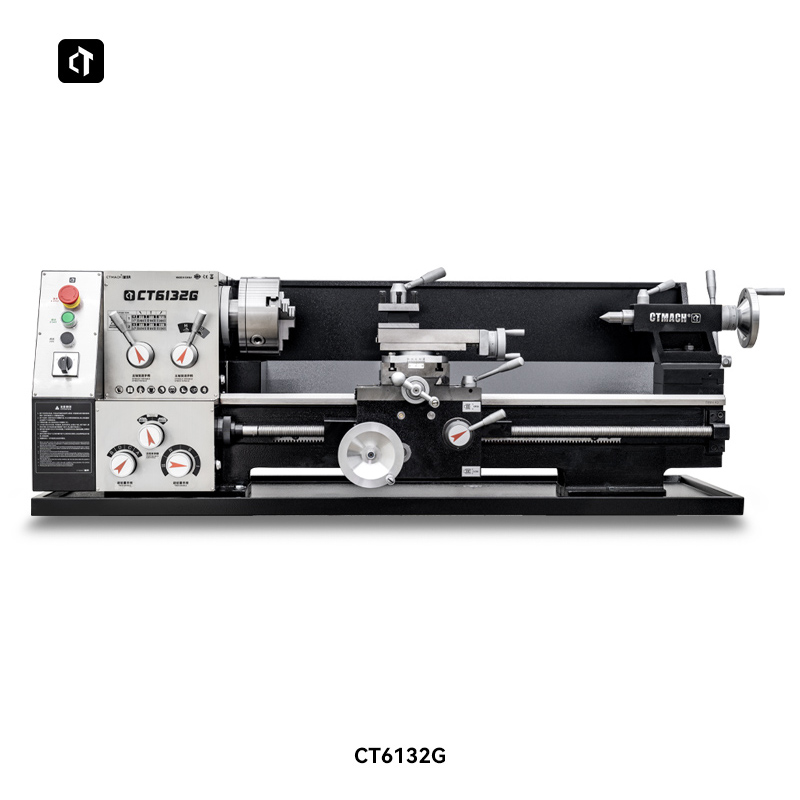

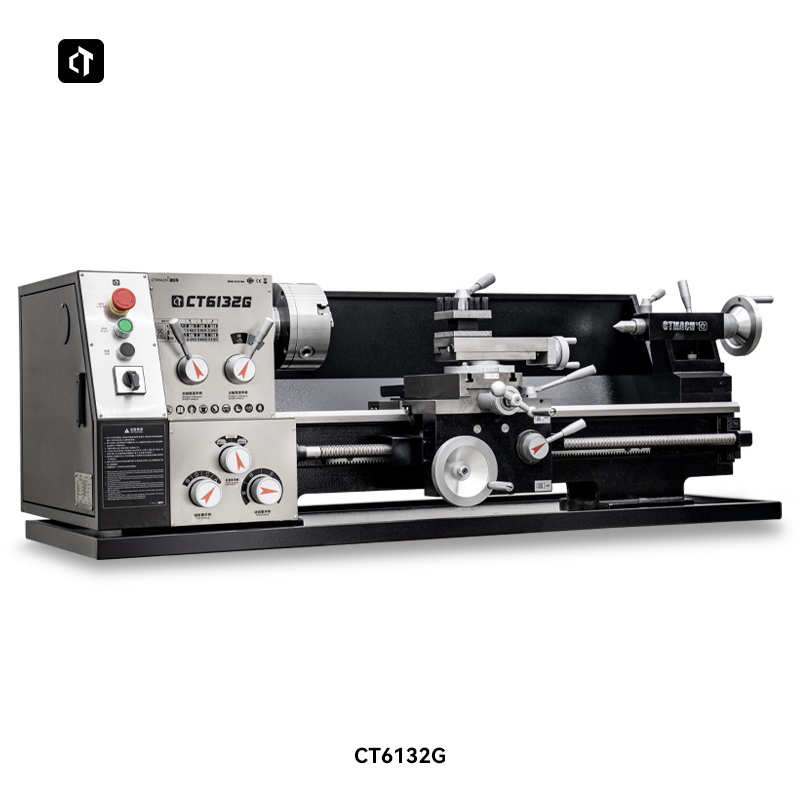

12" x 30" Metal Turning Lathes-CT6132G

12" x 30" Metal Turning Lathes-CT6132G

It is a highly precise and robust semi-professional lathe, with a cast iron structure and metal finishes. Being equipped with automatic advancement, this lathe allows you to thread both in inches and in metric measurements.

Model :
CT6132G
Swing over bed :
320mm
Swing over cross slide :
220mm
Distance between centers :
750mm
Motor :
1100W

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Swing over bed 320mm

Swing over cross slide 220mm

Distance between centers 750mm

Industrial class specification, compact form factor

1. Industrial grade small machine tool, high precision, good rigidity, large torque, simple operation and maintenance.

2. Using imported SKF bearings, the machine runs more smoothly, the operation time is longer, and the bearing fatigue is reduced under the most severe conditions.

3. High strength hardening gear, 12 gear change, durable.

4. Vertical and horizontal automatic cutting, screw positive and negative turn, can turn left and right screw thread.

5. High-frequency quenching and precision grinding of bed guide rail, wear-resistant, high precision;

6. The size of the lathe makes it suitable for home workshops, light industry or educational use.

Model	CT6132G
Bed rotation diameter	320mm
Maximum turning length	750mm
Center carriage rotation diameter	220mm
Spindle through hole diameter	38mm
Spindle taper hole	MT5
Maximum lateral travel of tool rest	160mm
Maximum longitudinal travel of small tool rest	100mm
Number of metric threads to be processed	12
Number of imperial threads to be processed	18
Metric thread pitch range to be processed	0.25~4mm
Imperial thread pitch range to be processed	4~96 T.P.I
Longitudinal feed of tool rest per spindle rotation	0.087~2.049mm/r
Lateral feed of tool rest per spindle rotation	0.019~0.444mm/r
Maximum movement of tailstock sleeve	80mm
Tailstock taper hole	MT3
	160mm
Spindle speed series	12
Spindle speed range	65~1600r/min
Motor	1100W
Net weight	≈240kg
Dimensions	1500610450mm
