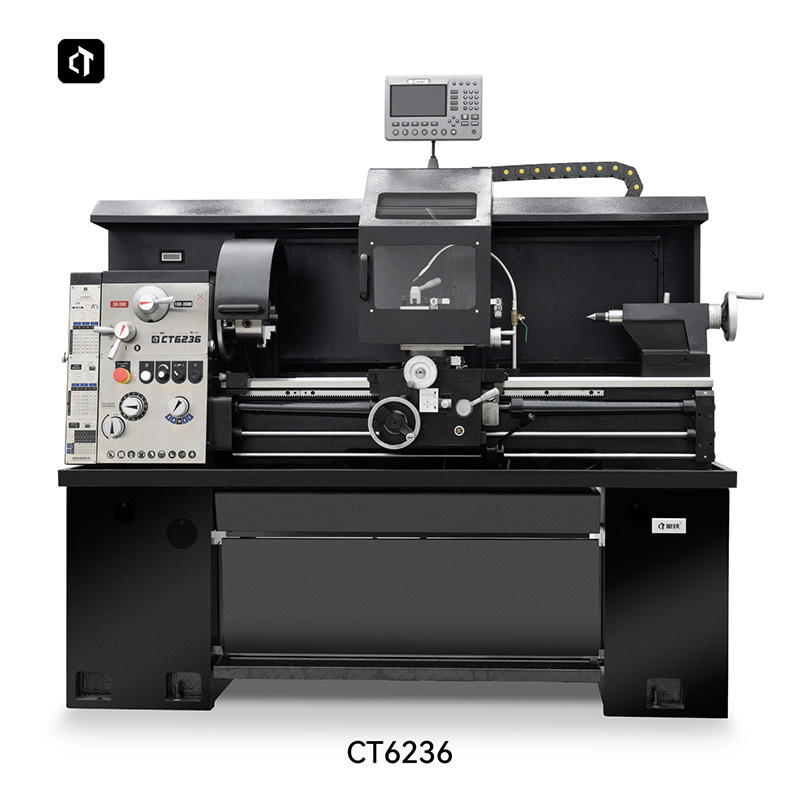

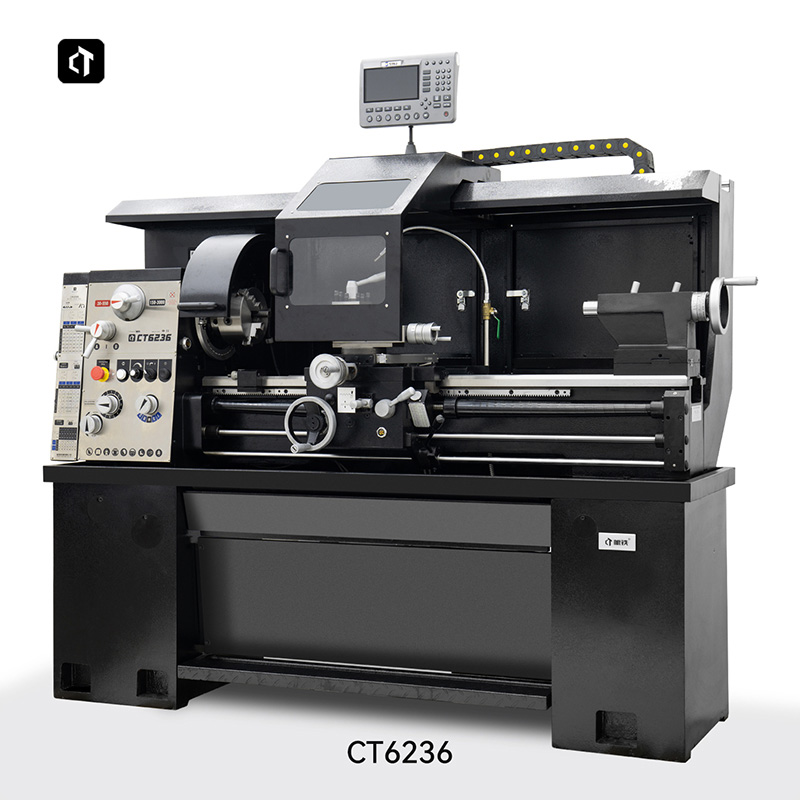

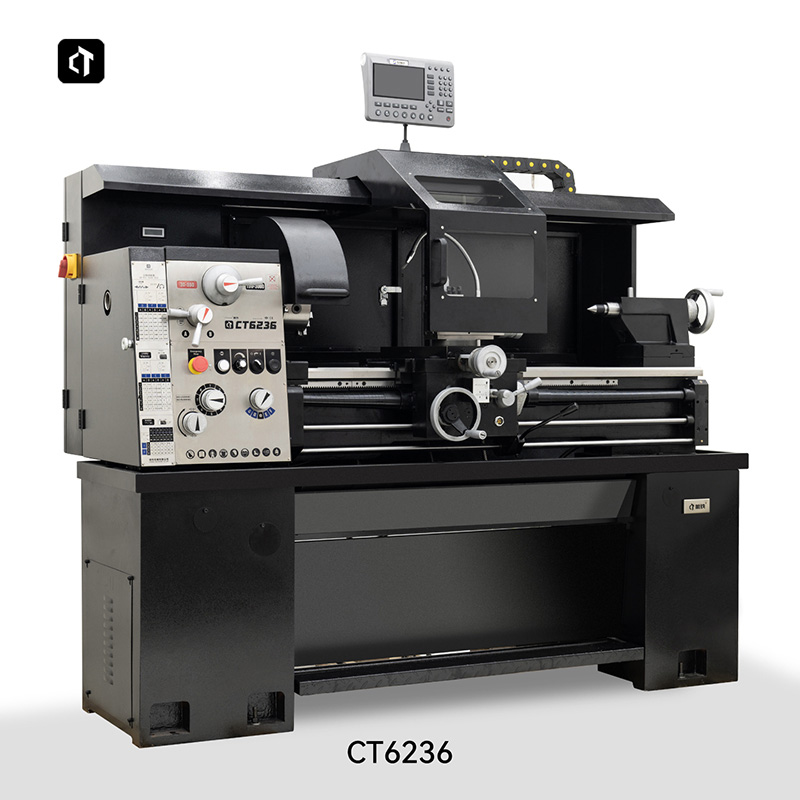

CTMACH CT6236 - 14" × 39.37" Metal Lathe

The CT6236 is a high‑precision industrial‑grade heavy‑duty table‑top thread‑cutting lathe, designed for industrial turning of metallic or plastic workpieces with surfaces of revolution.

This machine performs fundamental turning operations: external turning and internal boring of cylindrical and conical surfaces, end facing, parting‑off, drilling and tapping.

It is equipped with a 2.2 kW high‑power motor. The spindle adopts gear shifting with high/low speed ranges, featuring stepless speed regulation within each range. It has ground gears, a double‑V bed with hardened guideways, delivering excellent rigidity and high precision.

The complete machine adopts human‑oriented design, manufactured in compliance with CE and ISO standards for safe, reliable operation, and is fitted with power‑failure protection.

The machine base cabinet comes with a chip collection box for easy chip disposal, as well as a foot‑operated power‑off brake device.

Standard equipment includes linear glass scales for digital readout, LED work lamp and cooling system.

Model :
CT6236
Swing over bed :
356mm
Swing over cross slide :
220mm
Distance between centers :
1000mm
Gear shifting method :
High/Low gears, stepless per‑range
Motor :
2.2Kw

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

The CT6236 is a high‑precision industrial‑grade heavy‑duty table‑top thread‑cutting lathe, designed for industrial turning of metallic or plastic workpieces with surfaces of revolution.

This machine performs fundamental turning operations: external turning and internal boring of cylindrical and conical surfaces, end facing, parting‑off, drilling and tapping.

The complete machine adopts human‑oriented design, manufactured in compliance with CE and ISO standards for safe, reliable operation, and is fitted with power‑failure protection.

The machine base cabinet comes with a chip collection box for easy chip disposal, as well as a foot‑operated power‑off brake device.

Standard equipment includes linear glass scales for digital readout, LED work lamp and cooling system.

Capacities:
Swing Over Bed	356mm
Swing Over Cross Slide	220mm
Swing Over Gap	506mm
Length of Gap	238mm
Distance Between Center	1000mm

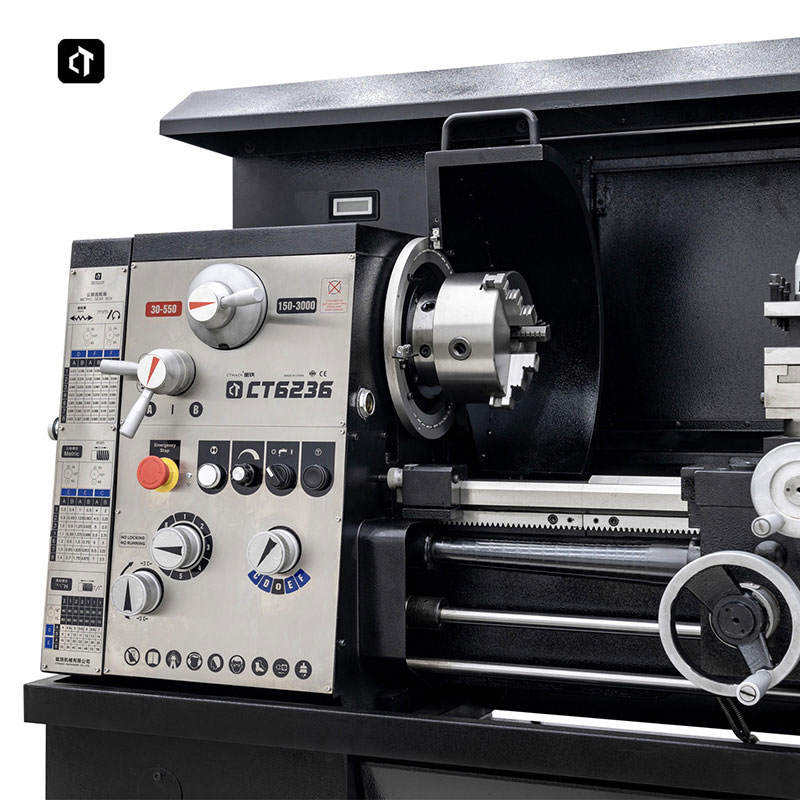

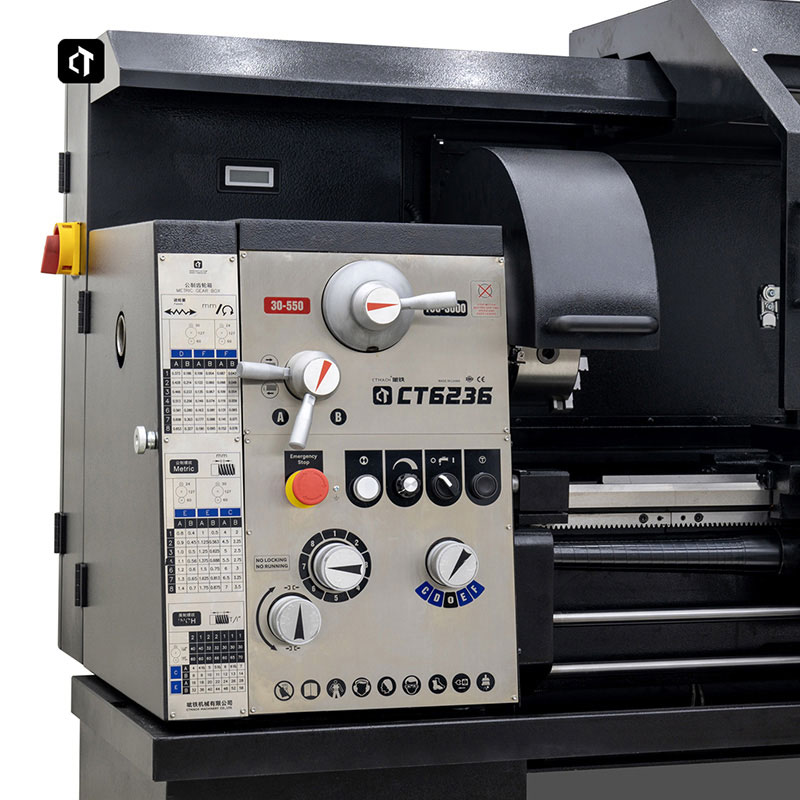

Headstock:
Hole Through Spindle	38mm
Taper in Spindle Nose	D1‑4
Taper in Spindle Nose	MT5
Spindle Taper Adapter	MT3
Spindle Bearing Type	Taper Roll Bearing
Number of Spindle Speeds	High/Low gears, stepless per‑range
Range of Spindle Speeds	30‑550R.P.M 150~3000R.P.M
Gearbox:
Number of Longitudinal and Cross Feeds	42
Range of Longitudinal Feeds(mm/rev.)	0.043‑0.653
Range of Cross Feeds(mm/rev.)	0.027‑0.413
Number of Metric Threads	42
Range of Metric Threads	0.4‑7.0mm
Number of Inch Threads	28
Range of Inch Threads	4‑56TPI
Leadscrew	22mmx1258mm
Feed Rod Diameter	19mm

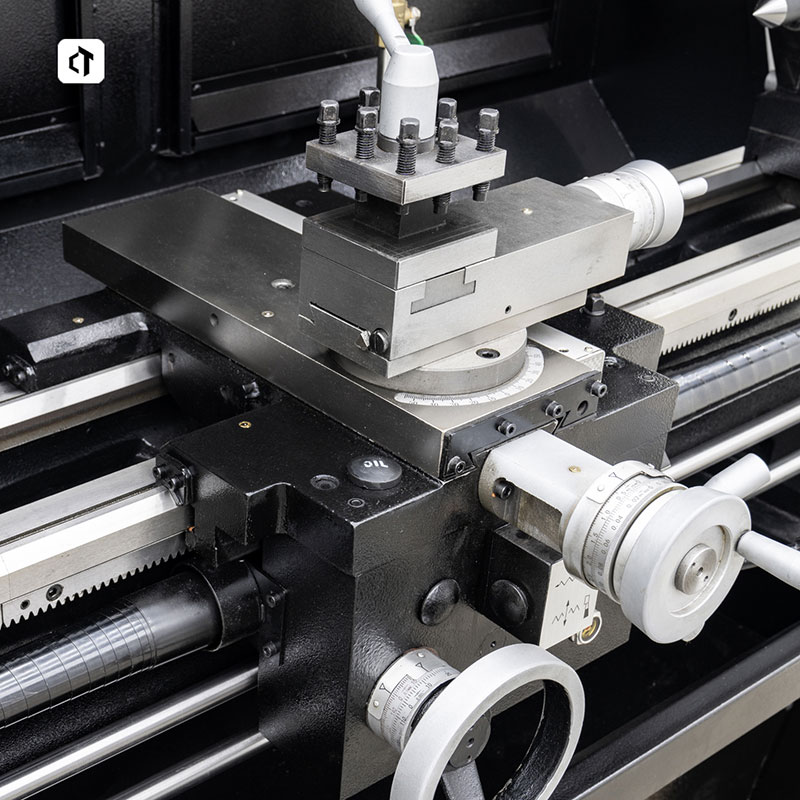

Compound and Carriage:
Toolpost Type	4‑Way
Maximum Tool Size	16mm x16mm
Maximum Compound Slide Travel	95mm
Maximum Cross Slide Travel	180mm
Maximum Carriage Travel	946mm
Tailstock:	Tailstock:
Tailstock Spindle Travel	100mm
Diameter of Tailstock Spindle	45mm
Taper in Tailstock Spindle	MT4
Miscellaneous:
Length of Bed	1378mm
Width of Bed	203mm
Height of Bed	279mm
Overall Dimensions(L x W x H)	1822x787x1260mm
Main Motor	2.2KW, 1ph
Net Weight	750kg
Shipping Weight	880kg
