CTZX32-7.5" x 28" R8 High-precision metal Mill/Drill

High Efficiency Drilling Milling Machine

Drilling/Milling Machine for Metal Working

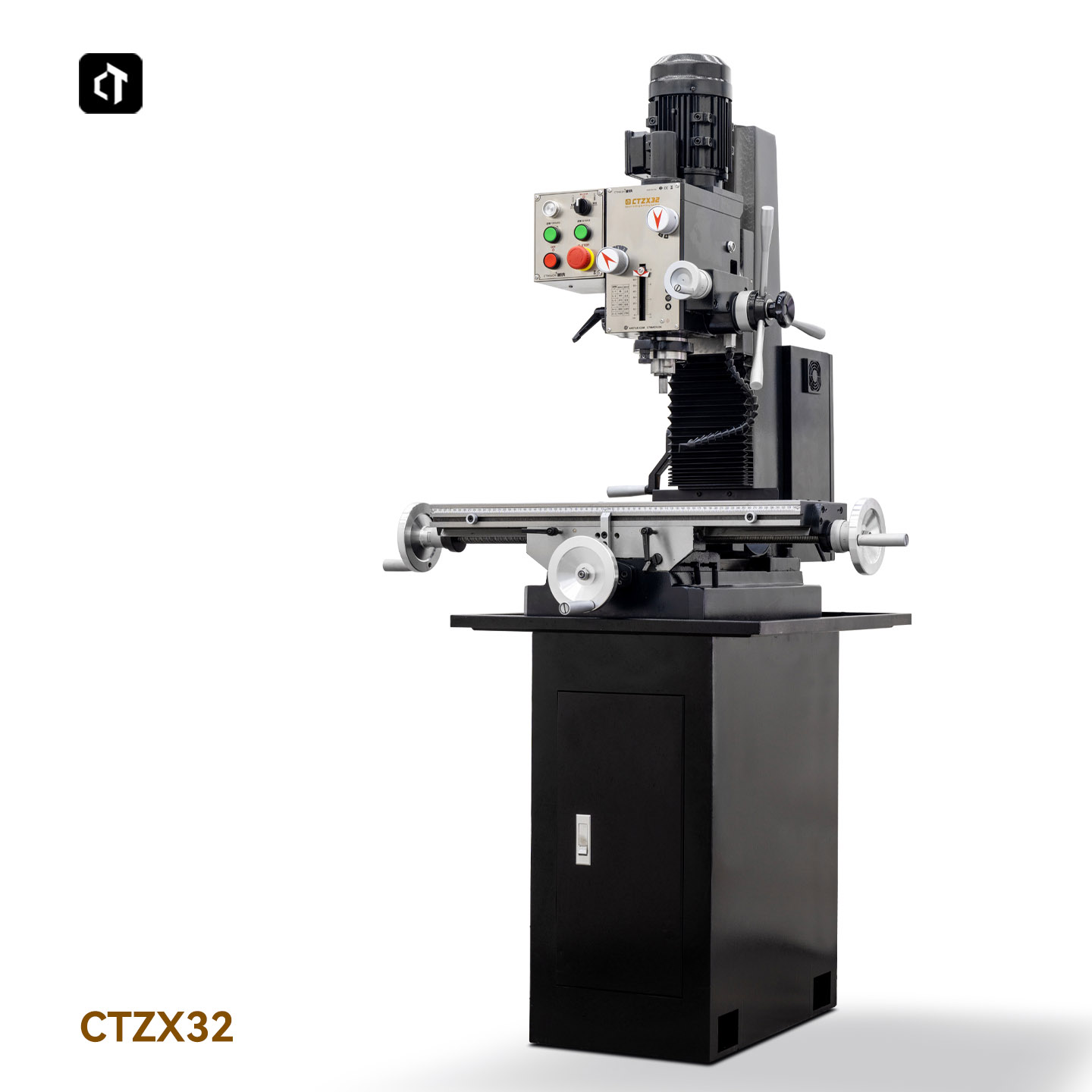

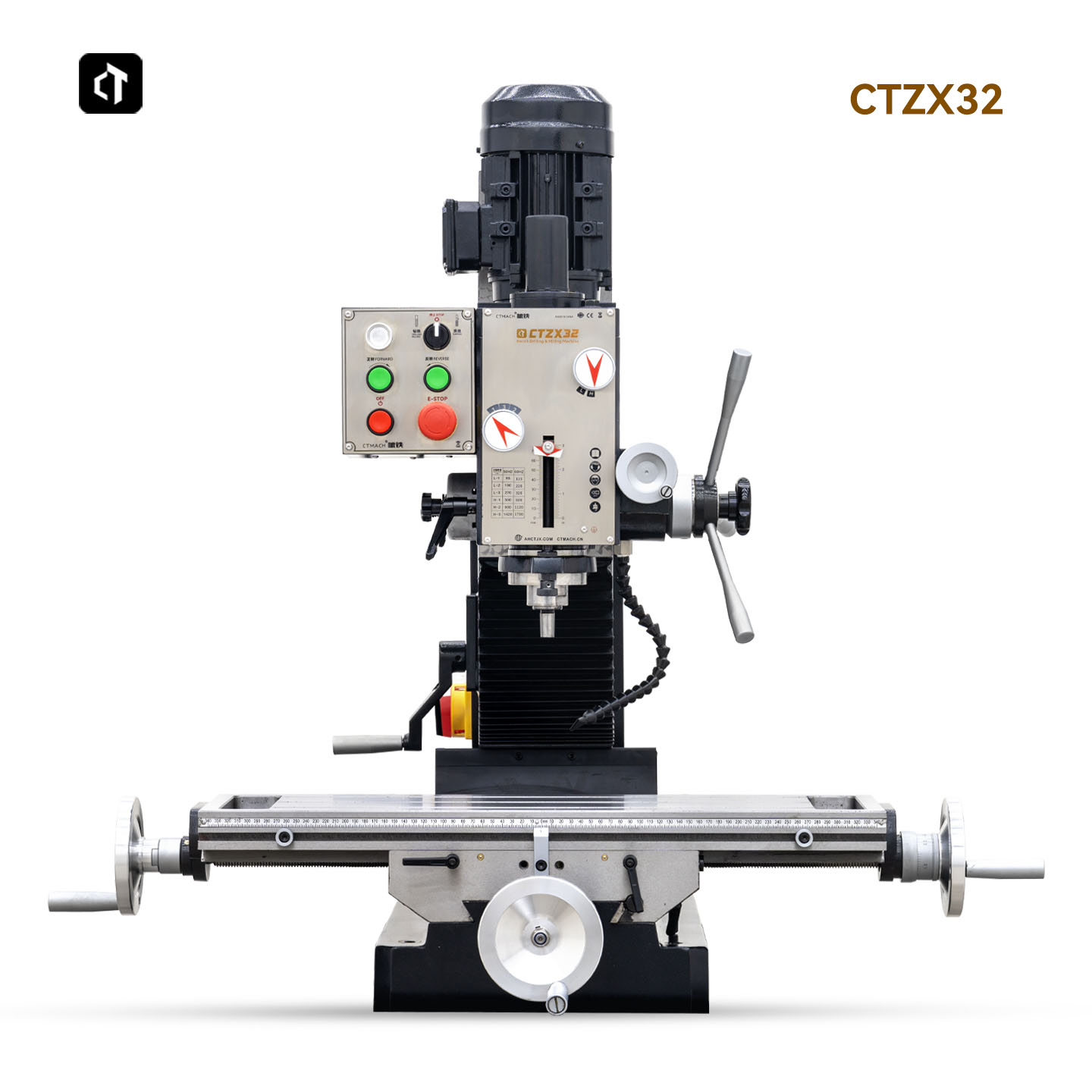

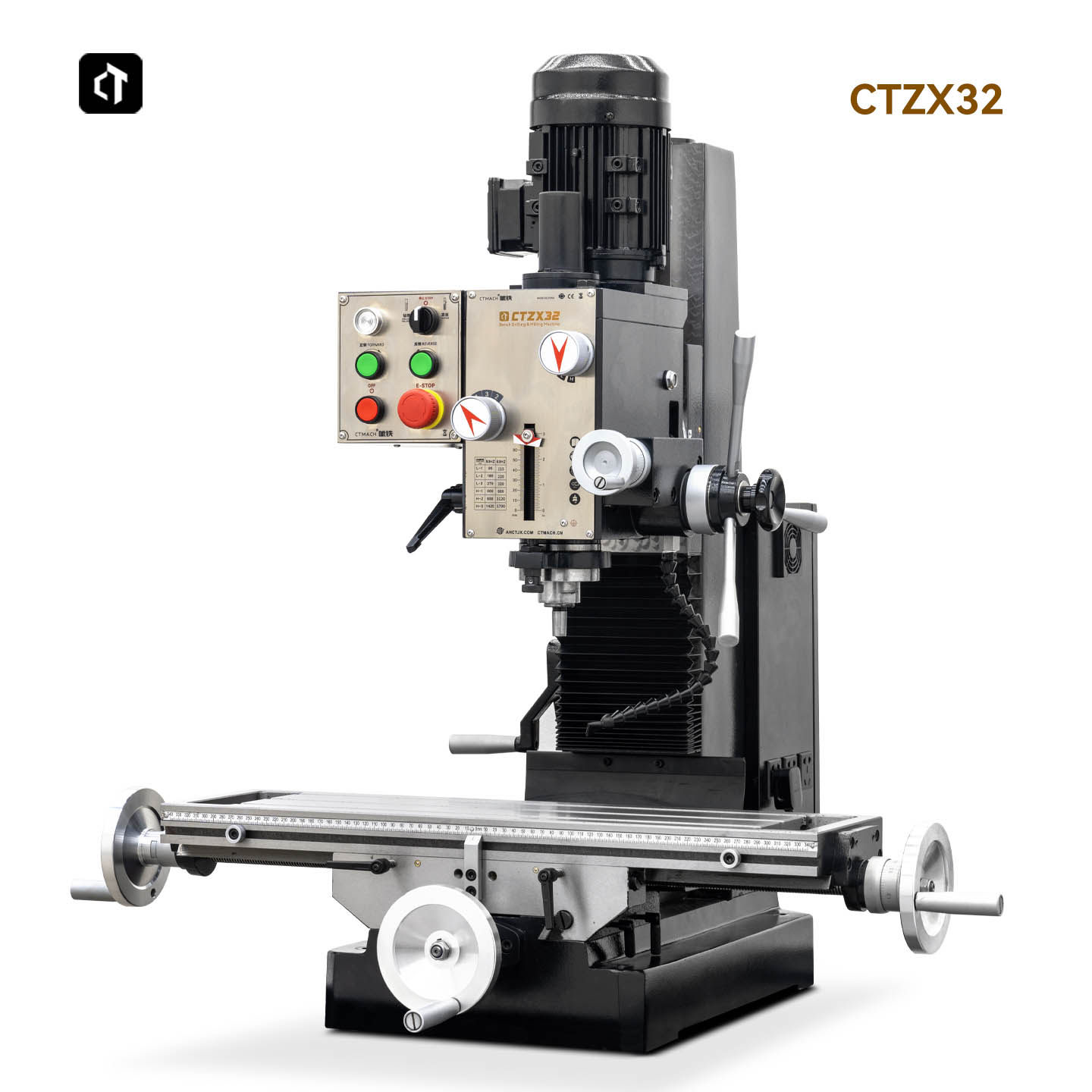

CTZX32-7.5" x 28" R8 High-precision metal Mill/Drill

The machine can be used to drill, ream and expand holes up to 32 mm in cast iron, tap bolts up to M16 mm, mill widths up to 63 mm and mill slots up to 20 mm. It is also suitable for cutting and face milling.
The CTZX32 version comes standard with a large work surface measuring 700 x 190 mm and a cooling system.
The machine is in stock immediately.

Model :
CTZX32
Drilling Capacity (steel / lron) :
32mm
Face milling capacity :
63mm
End milling capacity :
20mm
Tapping Capacity :
M16
Motor :
900w

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

It is suitable for drilling, reaming and boring on metal materials and other materials, and can also perform end milling, end milling and tapping.
900w high-power three-phase motor, frequency conversion processing, 220V input, can achieve 6-speed gear speed change. The speed range is wide and practical. The spindle speed can reach MAX 1700RPM.
Adopt high-precision SKF bearings.

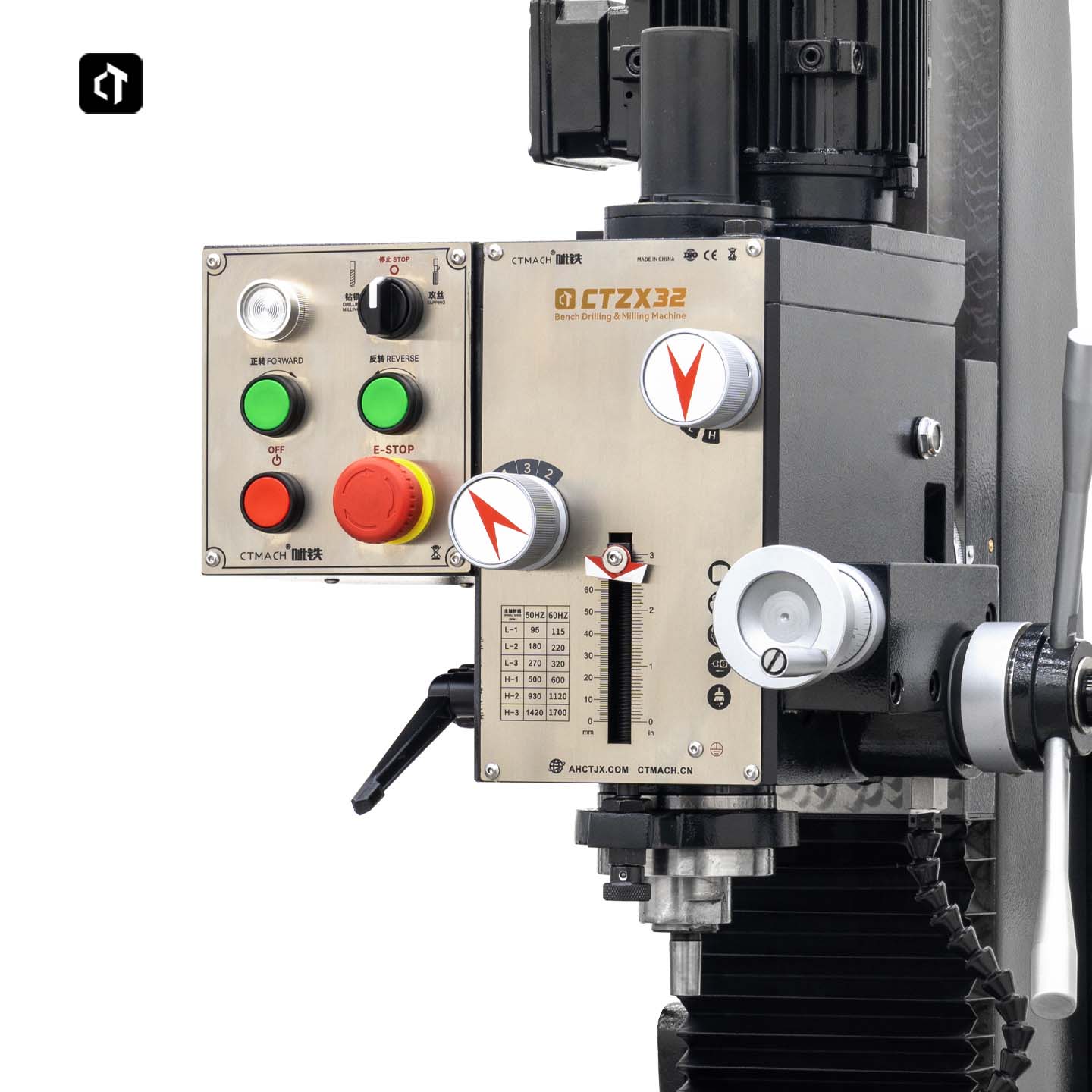

Oil-immersed spindle box, gear quenching and grinding treatment, the silent effect is quieter than the stepless speed regulation form. Spindle depth limit, tapping automatic reversal, can realize batch drilling and tapping.
Spindle depth digital display can improve milling feed accuracy.
The worktable and column adopt dovetail guide rails with sufficient rigidity and stability.

Model	CTZX32
Drilling diameter	32mm
Face milling cutter diameter	63mm
End milling cutter diameter	20mm
Tapping capacity	M16
Spindle travel	75mm
Spindle taper	R8
Spindle box tilt angle	±45°
Spindle speed	95~1420RPM(50HZ）115~1700RPM(60HZ）
Worktable area	700*190mm
Worktable travel (X/Y)	380*230mm
Milling head vertical travel (Z)	350mm
Distance from spindle axis to column surface	214mm
Distance from spindle end to worktable	50~400mm
Main motor power	900W
Overall dimensions	10508501200mm
Packaging dimensions	7474106 cm
Net weight	206Kg
Gross weight	230Kg
