CTZX40H - 8" x 24" R8 High-precision metal Mill/Drill

High Efficiency Drilling Milling Machine

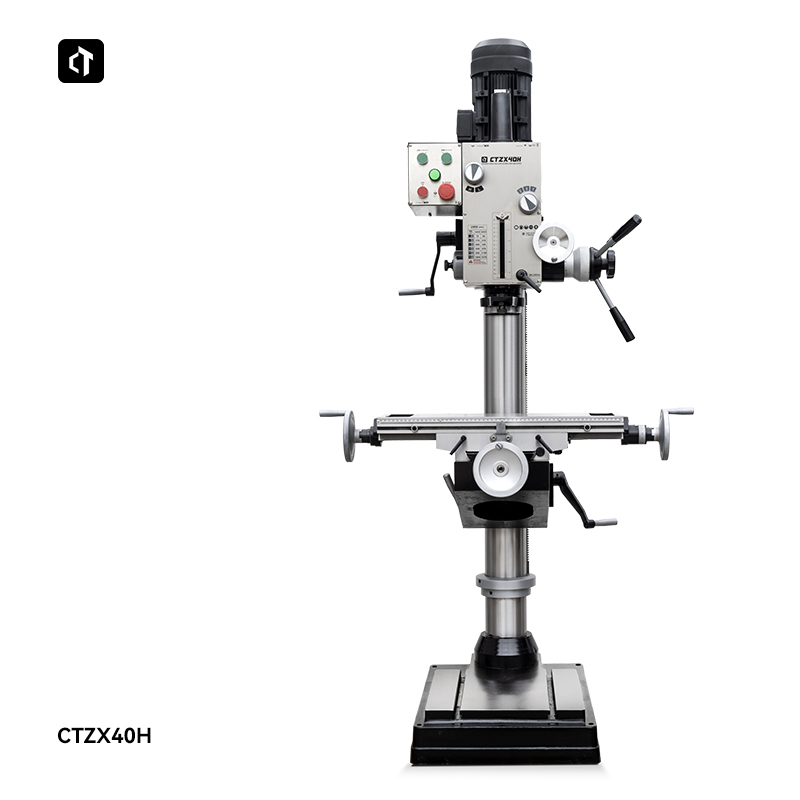

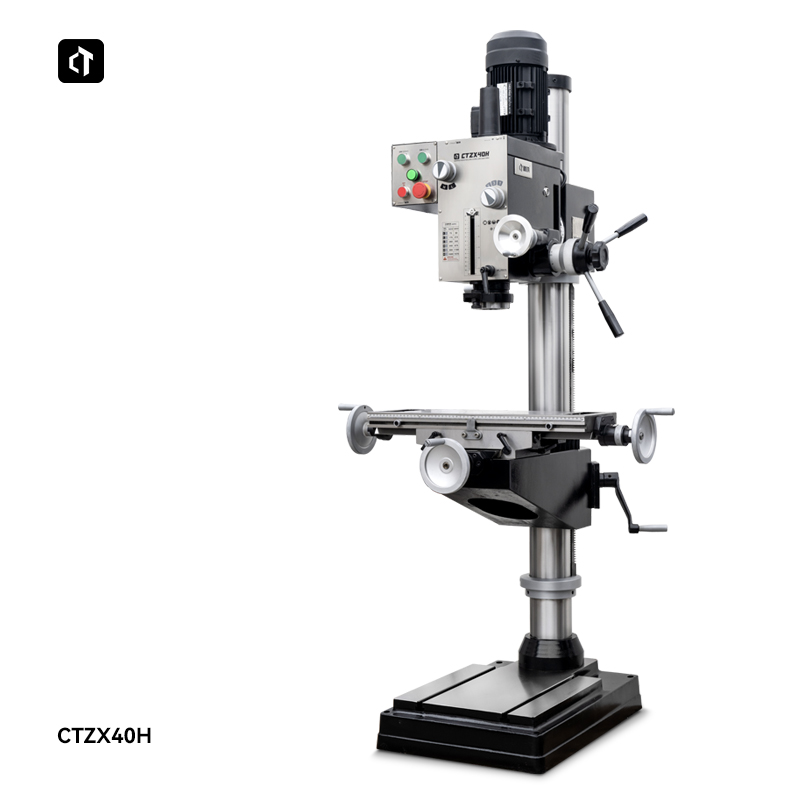

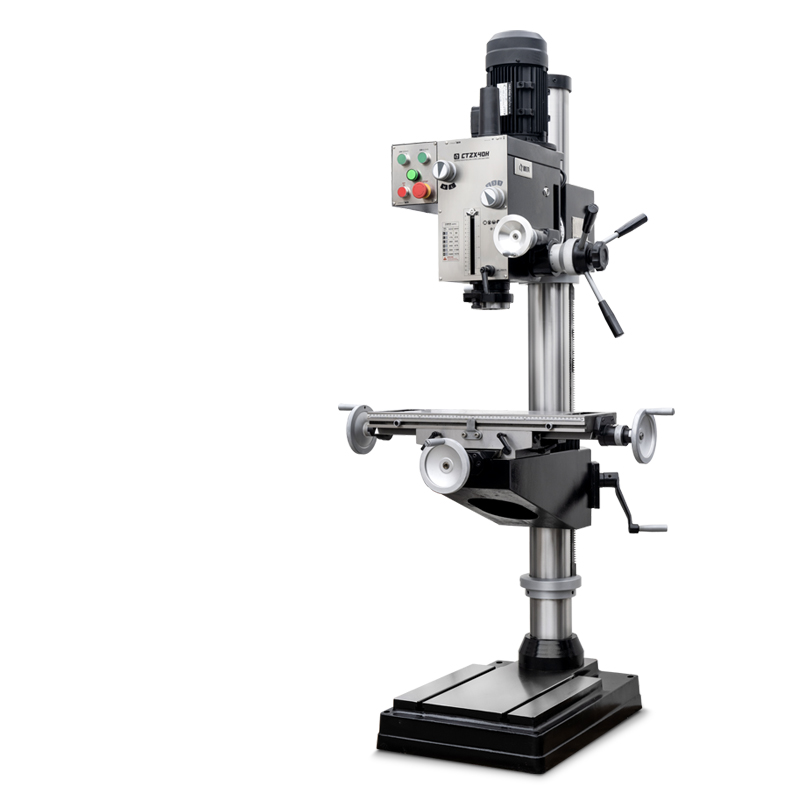

CTZX40H - 8" x 24" R8 High-precision metal Mill/Drill

The CTMACH Industrial Gear Head Auto Feed Drilling & Milling Machine utilizes a gear transmission system, delivering high torque and making it ideal for drilling, reaming, tapping, and milling a variety of common materials. The spindle supports both micro-feed and manual feed options.

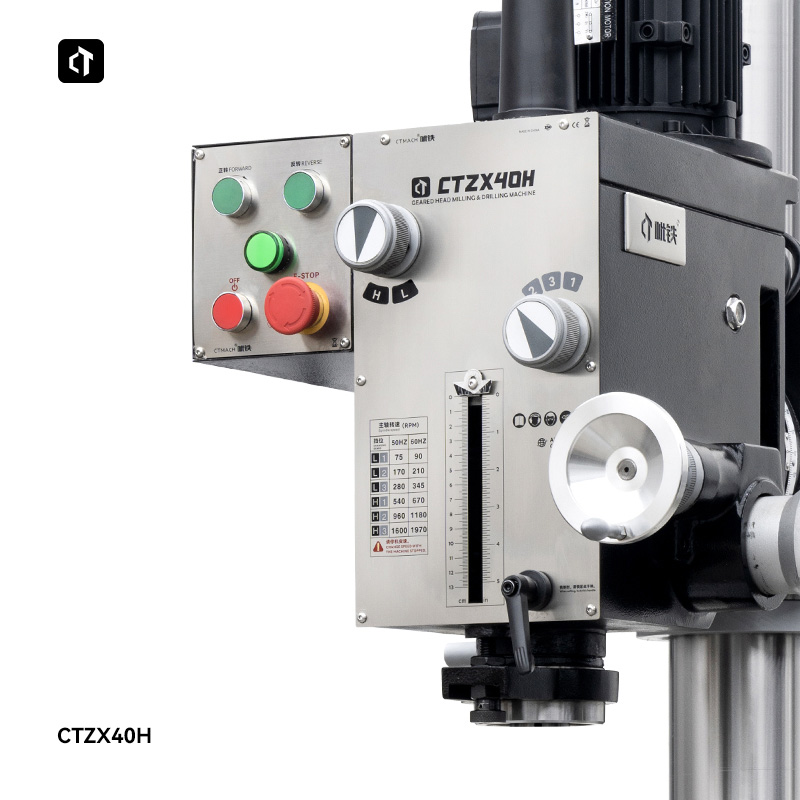

Flexible Spindle Head: The spindle head can rotate 360° and tilt ±45°, allowing flexible and convenient operation for various angles and positions.

Model :
CTZX40H
Drilling Capacity (steel / lron) :
40mm
Face milling capacity :
60mm
End milling capacity :
20mm
Tapping Capacity :
M16
Motor :
1500w

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

1.5Kw high-power three-phase motor, 6-speed gear speed change, wide and practical speed range. The spindle speed can reach MAx1600Rm and adopts high-precision SKF bearings. The oil-immersed spindle box, combined with the quenching and grinding gear process, effectively reduces the operating noise, and the effect is better than the stepless speed regulation form. The spindle depth limit can realize batch drilling and tapping.

The workbench adopts dovetail guide rails with sufficient rigidity and stability. The workbench lifting adopts a worm gear structure for easy operation

Model	CTZX40H
Drilling diameter	40mm
Face milling cutter diameter	60mm
End milling cutter diameter	20mm
Tapping capacity	M16
Spindle taper	R8
Spindle travel	120 mm
Spindle speed (6 levels)	75，170，280，540，960，1600 rpm
Worktable size	600x190mm
Worktable travel (XY)	360mm(X)，180mm(Y)
Base size	650x450 mm
Column diameter	115mm
Distance from spindle axis to column	278 mm
Distance from spindle end face to worktable	610mm
Distance from spindle end face to base	1180 mm
Motor power	1.5Kw
Machine weight	350Kg
Packaging weight	385Kg
Appearance dimensions	9357502560mm
Packaging dimensions	8376188cm
