1. When threading, changing pitch, or changing lead, there's no need to stop the machine or change gear sets; parameters can be directly input on the panel, reducing switching time from tens of minutes to just seconds.
2. Machining accuracy and consistency are significantly improved; electronic synchronization eliminates gear backlash.
3. The operating threshold is greatly lowered, making it easy for beginners to use.
Model :
CT2670ESwing over bed :
260mmSwing over cross slide :
140mmDistance between centers :
700mmMotor :
1500WFeatures:
1. 38mm large spindle bore.
2. 1500W powerful brushless motor.
3. Spindle speed up to 2250rpm, synchronous belt drive.
4. Guide bed is hardened and precision ground.
5. Spindle is supported by precision tapered roller bearings.
6. Guide is equipped with adjustable clamping plate.
7. Convenient quick lock tailstock.
8. Tailstock can be offset for easy taper turning.

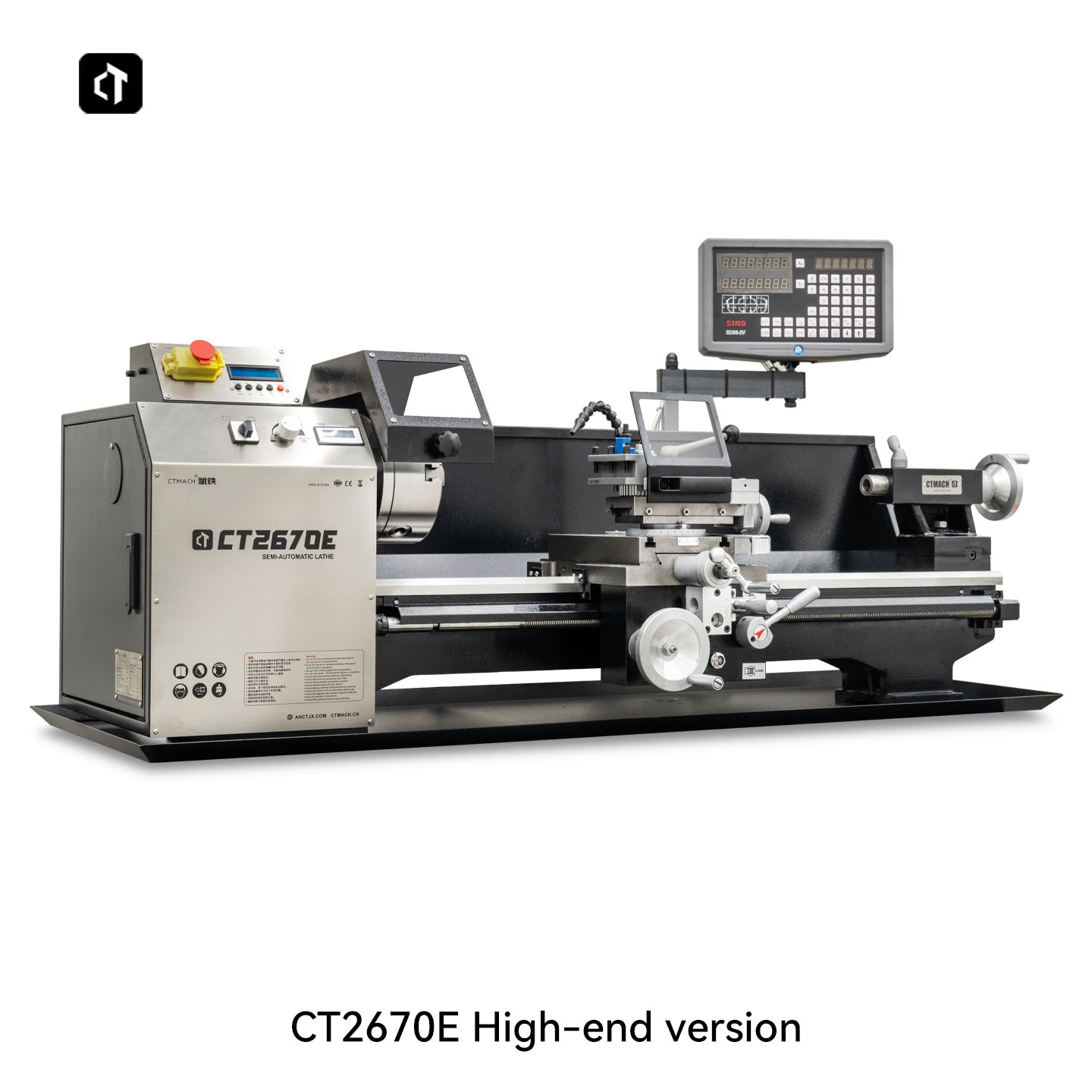

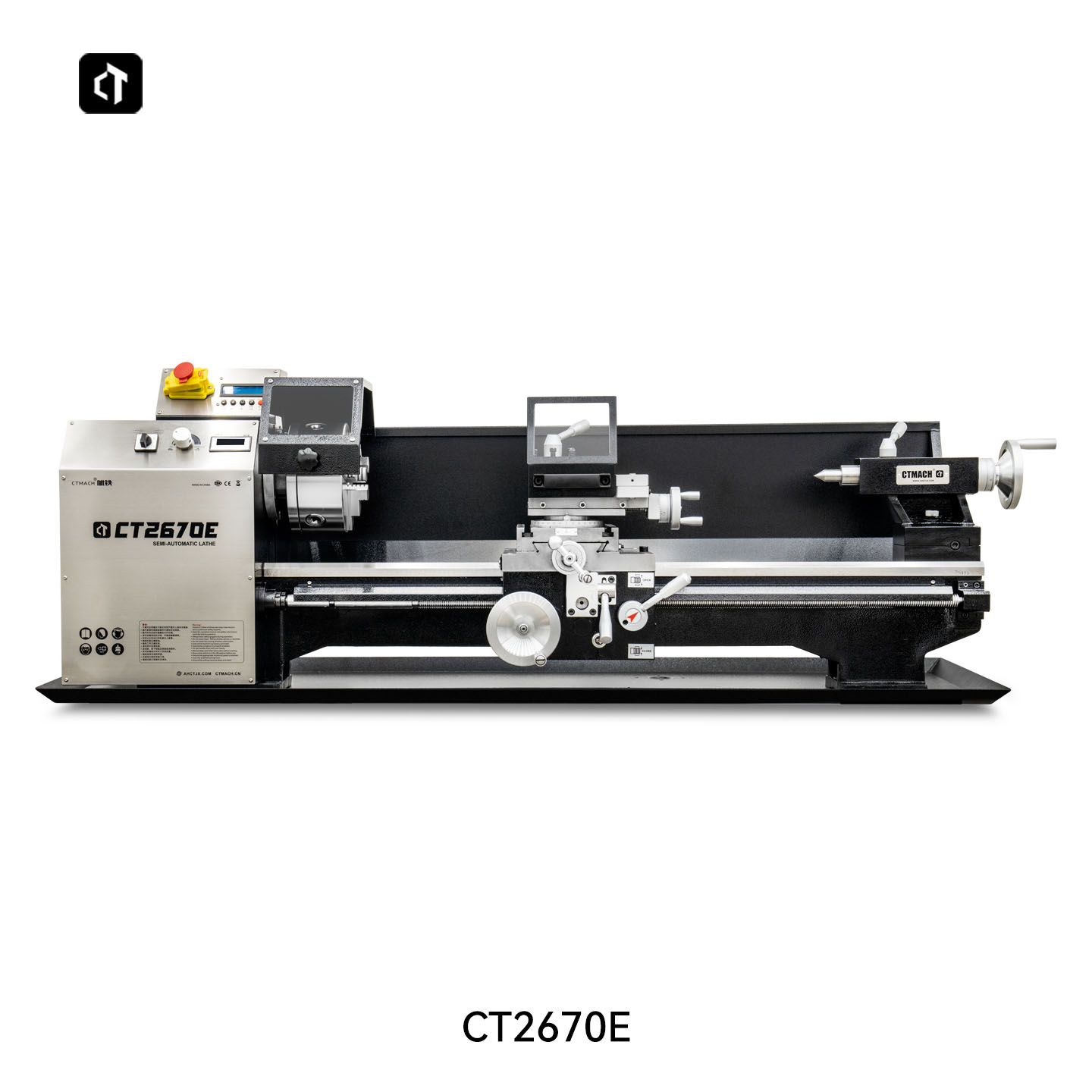

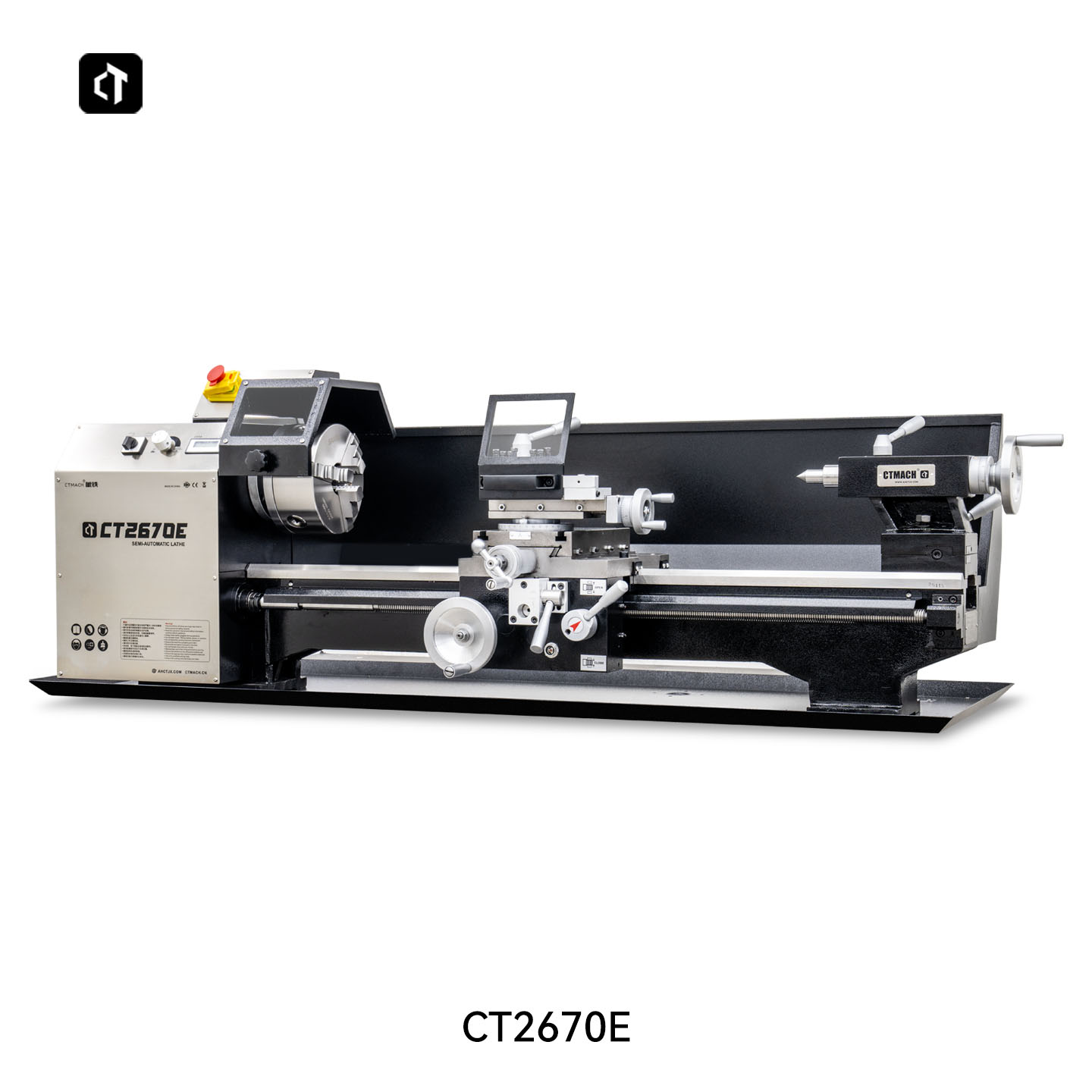

The CTMACH CT2670E Electronic lathe is a powerful piece of equipment for machining metal workpieces.
The product frame is made of cast iron and has been hardened and ground to ensure high strength and reliable vibration absorption during operation.
If an emergency occurs, simply press the emergency button to stop the device quickly and easily.
The transparent screen is designed to protect the operator from flying sparks and chips.
To make the job easier even for inexperienced lathes, there is an information sheet on the front panel of the machine.
The compact size allows you to place the device in a small production room, private or home workshop.
| Model | CT2670E |
| Slewing diameter on bed | 260mm |
| Slewing diameter on intermediate slide | 140mm |
| Distance between two centers | 700mm |
| Spindle speed | 50 ~ 2250RPM |
| Spindle taper | MT5 |
| Spindle bore diameter | 38mm |
| Metric thread types and range | 25 0.1 ~ 5.0mm |
| Imperial thread types and range | 29 96 ~ 5TPI |
| Longitudinal feed range | 0.01 ~ 0.4mm |
| Short tool post longitudinal stroke | 70mm |
| Transverse stroke | 115mm |
| Tailstock sleeve taper | MT2 |
| Tailstock sleeve stroke | 60mm |
| Motor | 1.5Kw |
| External dimensions | 1290*560*485mm |
| Packaging dimensions | 1380*575*640mm |
| Net weight | 140KG |
| Gross weight | 160KG |
