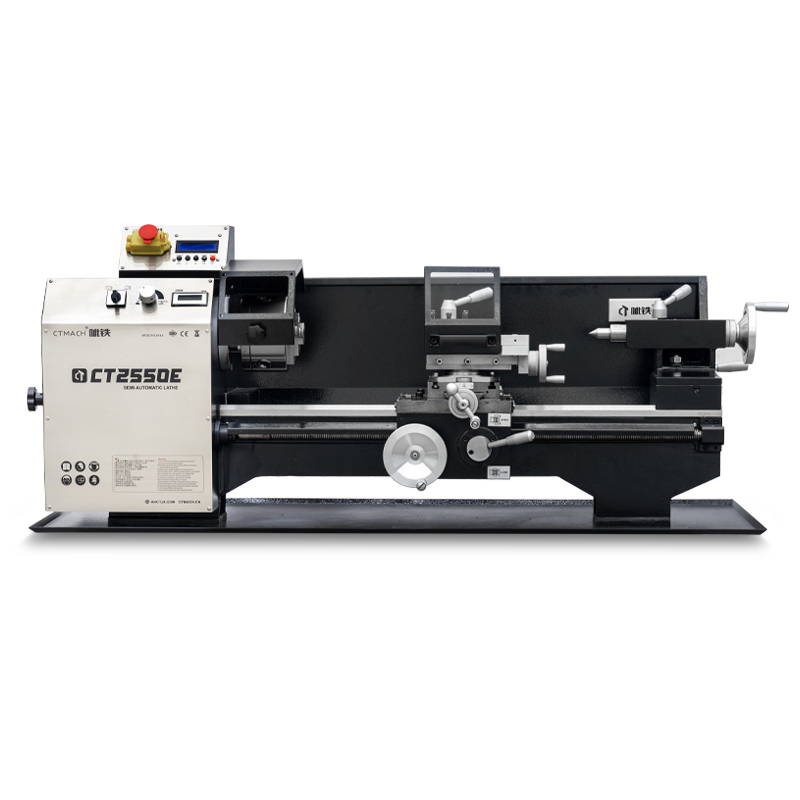

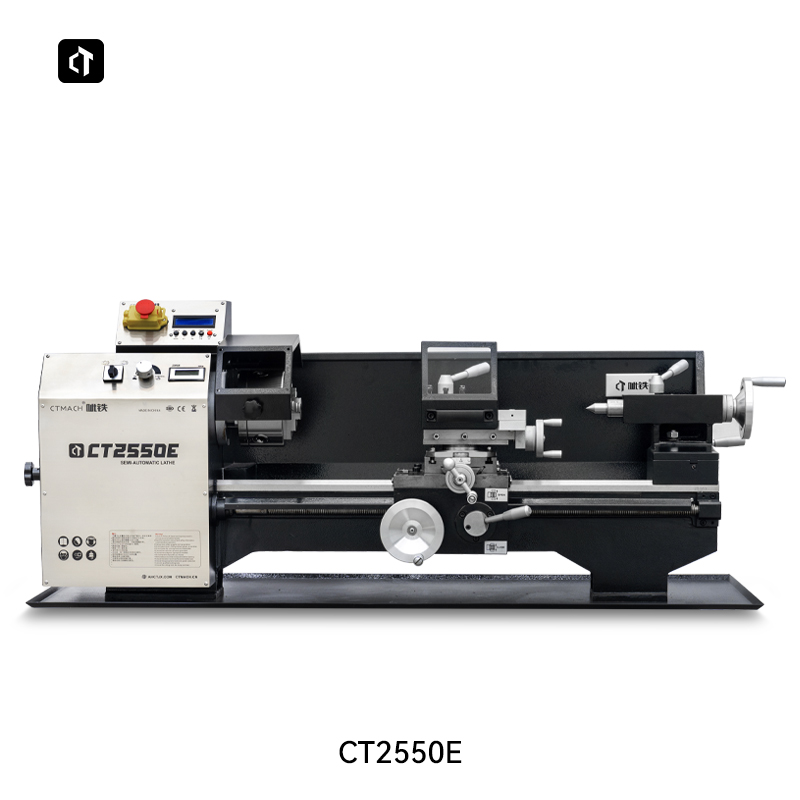

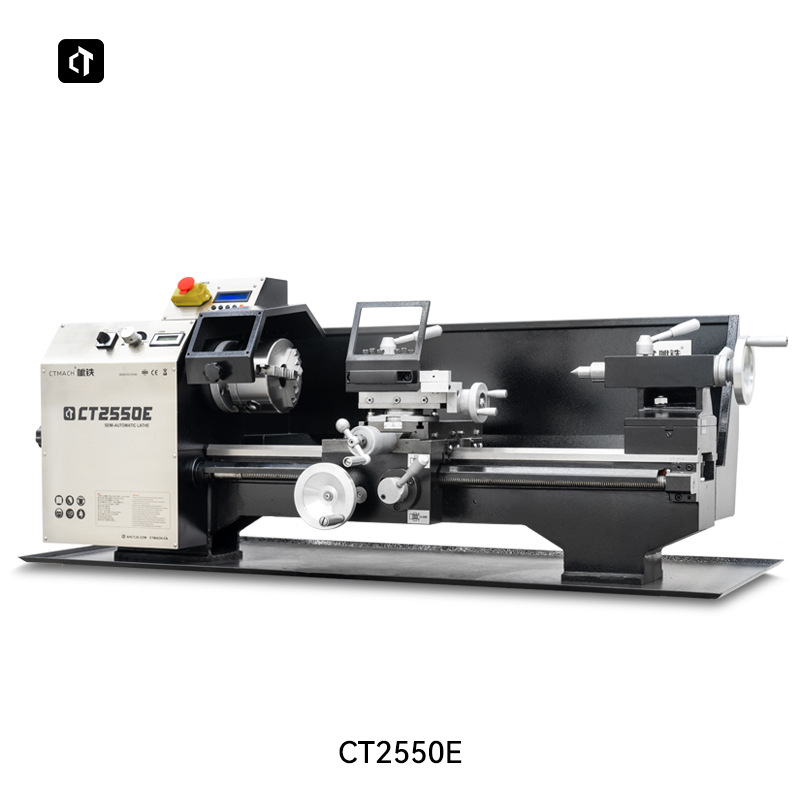

9" x 20" Electronic lathe-CT2550E

9" x 20" Electronic lathe-CT2550E

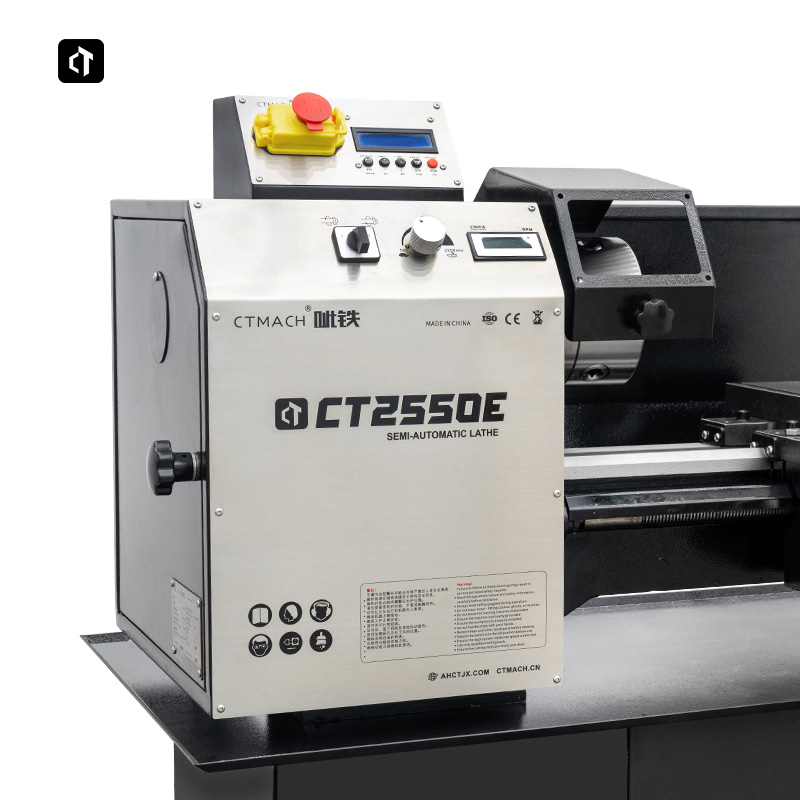

The CTMACH CT2550E Electronic lathe is a powerful piece of equipment for machining metal workpieces. The product frame is made of cast iron and has been hardened and ground to ensure high strength and reliable vibration absorption during operation. If an emergency occurs, simply press the emergency button to stop the device quickly and easily. The transparent screen is designed to protect the operator from flying sparks and chips. To make the job easier even for inexperienced lathes, there is an information sheet on the front panel of the machine. The compact size allows you to place the device in a small production room, private or home workshop.

Model :
CT2550E
Swing over bed :
240mm
Swing over cross slide :
140mm
Distance between centers :
550mm
Motor :
1500W

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features:

1. 38mm large spindle bore.

2. 1500W powerful brushless motor.

3. Spindle speed up to 2500rpm, synchronous belt drive.

4. Guide bed is hardened and precision ground.

5. Spindle is supported by precision tapered roller bearings.

6. Guide is equipped with adjustable clamping plate.

7. Convenient quick lock tailstock.

8. Tailstock can be offset for easy taper turning.

Model	CT2550E
Bed rotation diameter	240mm
Center slide rotation diameter	140mm
Distance between two thimbles	550mm
Spindle speed	50 ~ 2250RPM
Spindle taper	MT5
Spindle aperture	38mm
Metric thread type	25
Metric thread range	0.1 ~ 5.0mm
Inch thread type	29
Inch thread range	96 ~ 5tpi
Feed range	0.01 ~ 0.4mm
Turret longitudinal travel	70mm
Horizontal travel	115mm
Tailstock sleeve taper	MT2
Tailstock sleeve travel	50mm
Motor	1.5Kw
Dimensions	1220 x 525 x 485mm
Net weight	125KG
