13" x 30" Bench metal lathe-CTC330

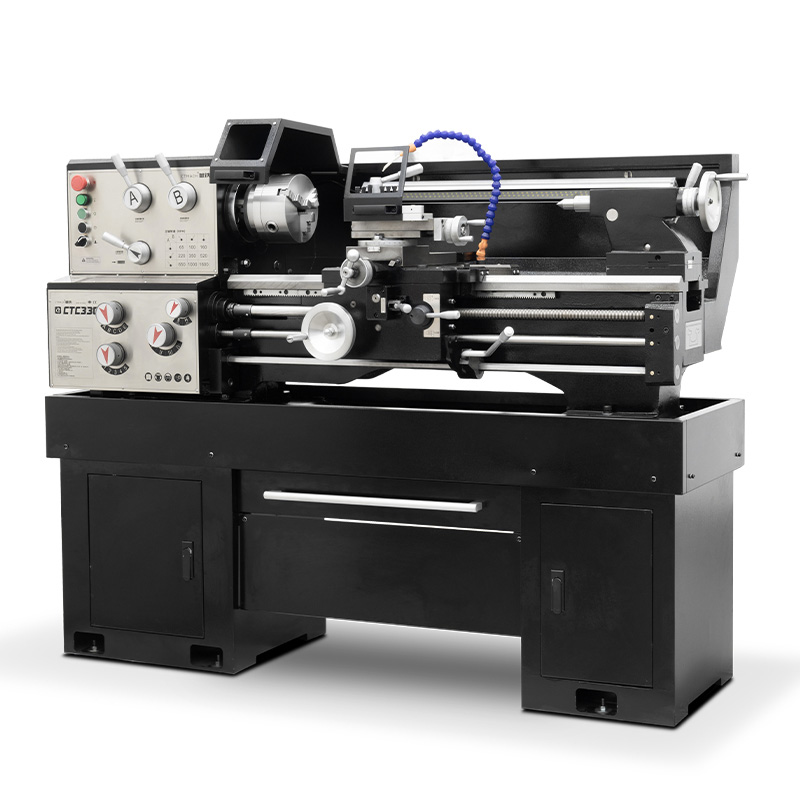

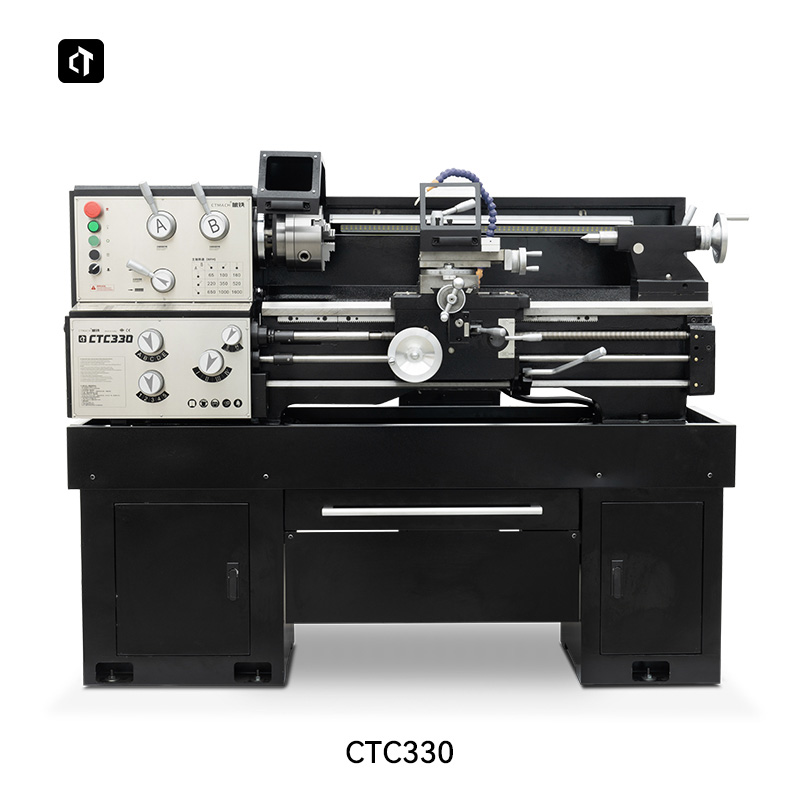

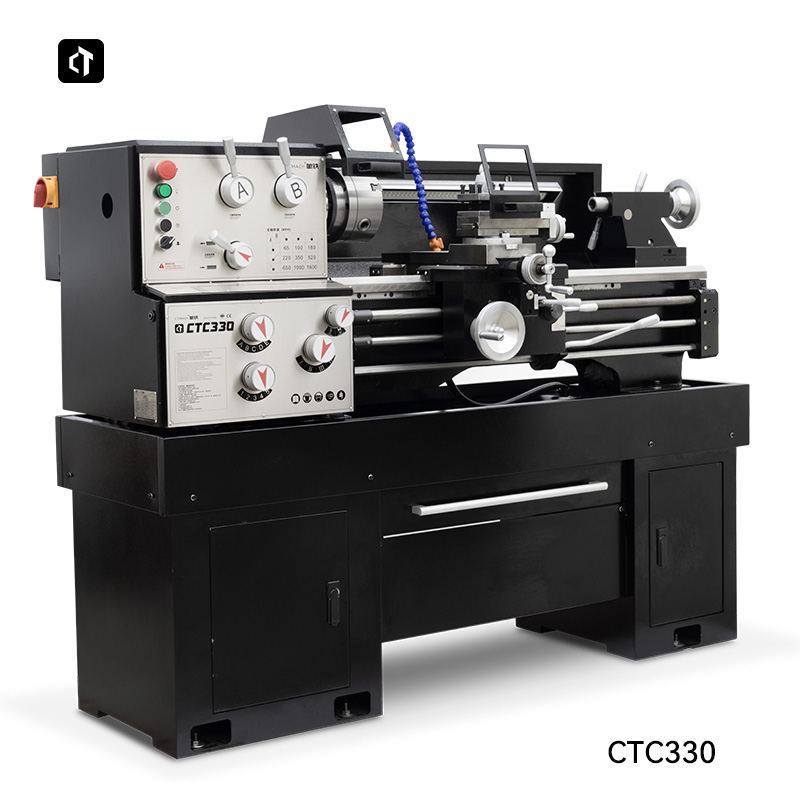

13" x 30" Bench metal lathe-CTC330

This machine tool has a wide range of uses. It is mainly used for cutting the outer circle, inner hole, end face, taper, grooving and metric thread, imperial thread, module thread and diametral pitch thread of various rotating parts. In addition, it can also be used for drilling, reaming, expanding, knurling, oil groove drawing, etc. It is suitable for processing ferrous and non-ferrous metals with high-speed steel tools and carbide tools.

Model :
CTC330
Swing over bed :
330mm
Swing over cross slide :
205mm
Distance between centers :
750mm
Motor :
2.2 Kw

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

Precision ground double V-guide structure design, with super rigidity.

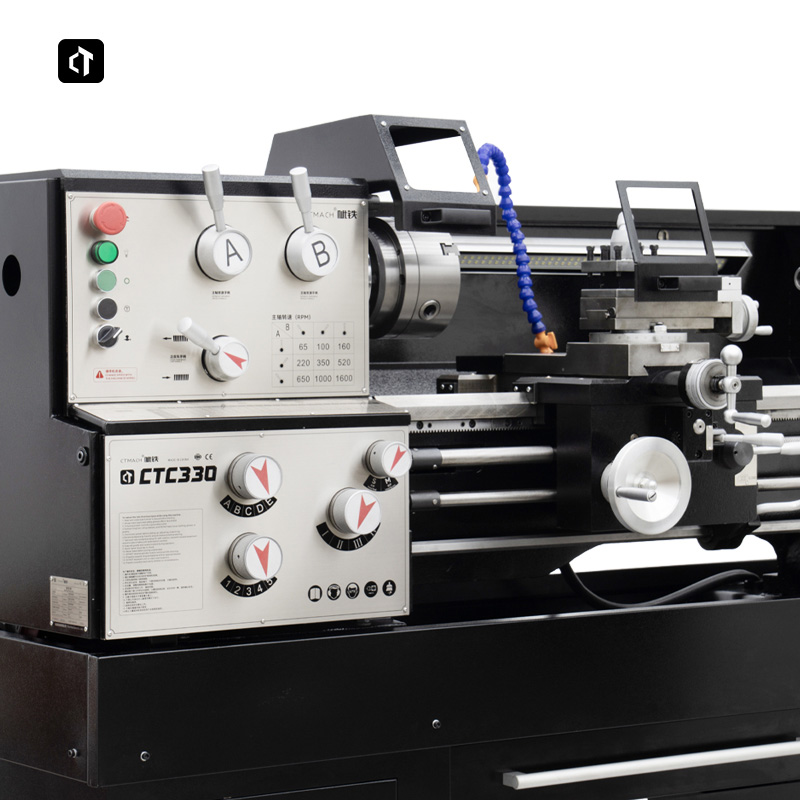

The spindle system has good rigidity and high precision. The main drive device is optimized and the spindle box gear is precisely cut.

2KW spindle motor, powerful, spindle speed 70~2000r/min, gear transmission, 9 gears.

Vertical and horizontal automatic feeding, can turn left and right threads, and can turn common threads without changing the hanging wheel.

Heavy floor cabinet, strong stability, built-in pull-out drainage drawer.

Equipped with work lights and cooling system.

Model	CTC330
Swing over bed	330mm
Swing over cross slide	205mm
Swing over gap	500mm
Distance between Centres	750mm
Bed width	210mm
Tool Height To Suit	20mm
Cross slide travel	200mm
Top slide travel	120mm
Spindle bore	38mm
Spindle speed range	70～2000 r/min (9）
Taper in Spindle Nose	MT5
Threads metric pitches	0.45～4mm （17）
Threads imperial pitches	4 1/2～64 1/n"（24）
Modulus thread	0.45～4π mm （17）
Diameter thread	15～192 π/n" （20）
Range of Longitudinal Feed	0.06～1.60mm
Range of Corss Feed	0.015～0.4mm
Tailstock ram travel	100mm
Tailstock taper	MT3
Power of main motor	2.2KW
Overall dimensions(L×W×H)	16507001300mm
N.W.	660KG
