8" x 39" Double Head Double Chuck Metal Lathe-T1000

8" x 39" Double Head Double Chuck Metal Lathe-T1000

Repair the leather head, replace the front horn to replace the bronze drum, customize the front horn to customize the bronze drum, slot the back handle, winding,foreskin handle, change male and female teeth, make female teeth, increase or decrease counterweight, repair loose counterweight, Opening, polishing, sanding, maintenance, etc.

Model :
T1000
Swing over bed :
210mm
Swing over cross slide :
130mm
Distance between centers :
1000mm
Motor :
1100w

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications

Features

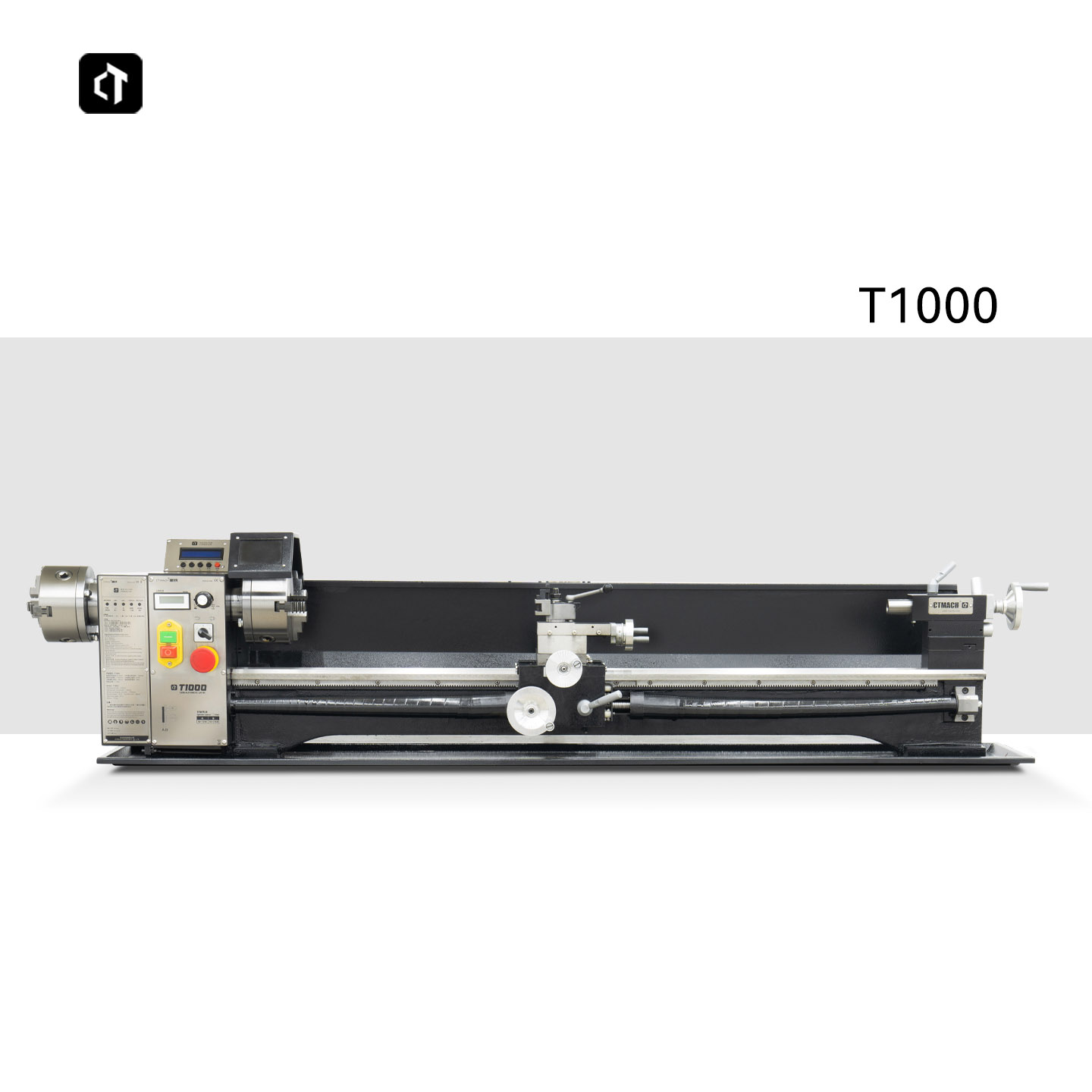

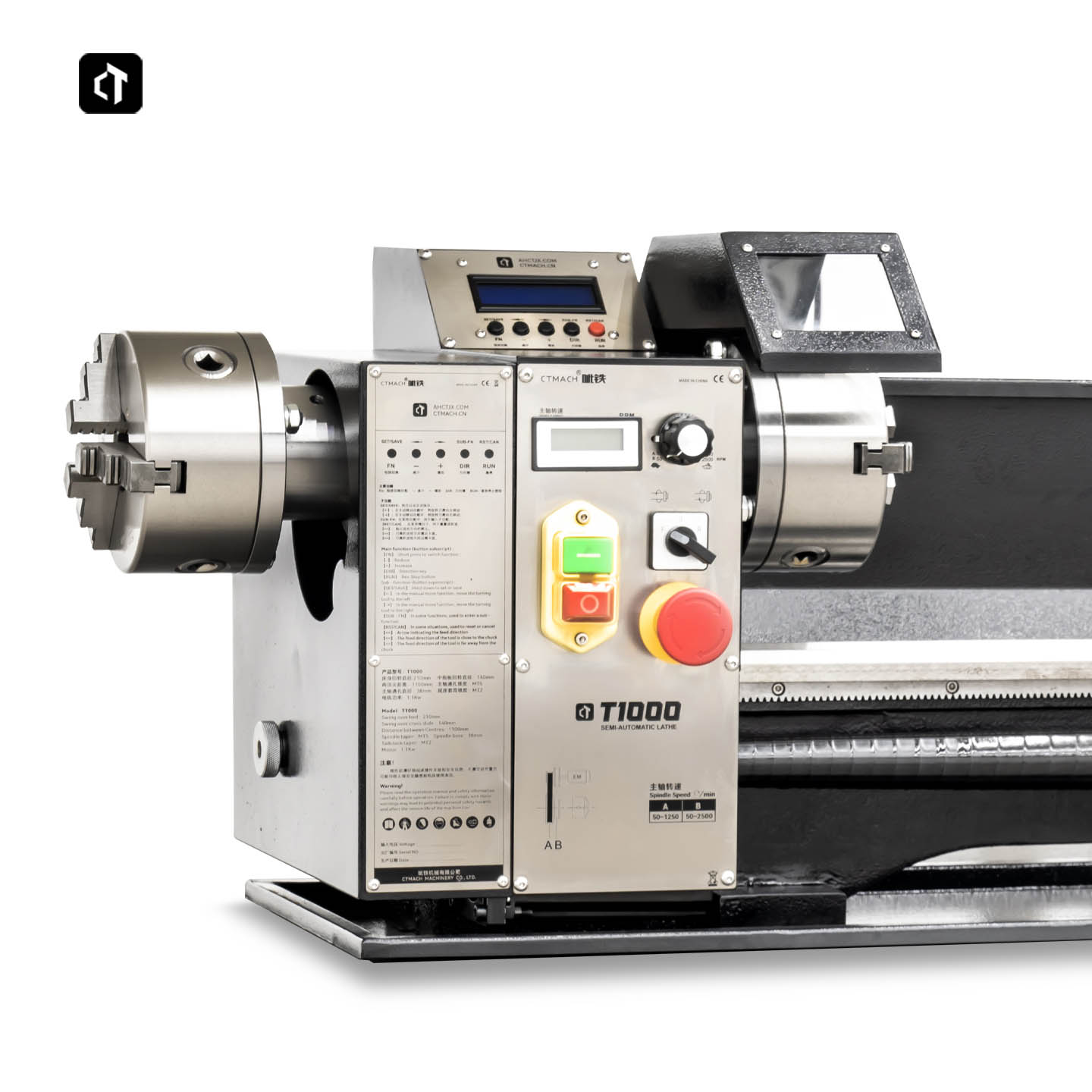

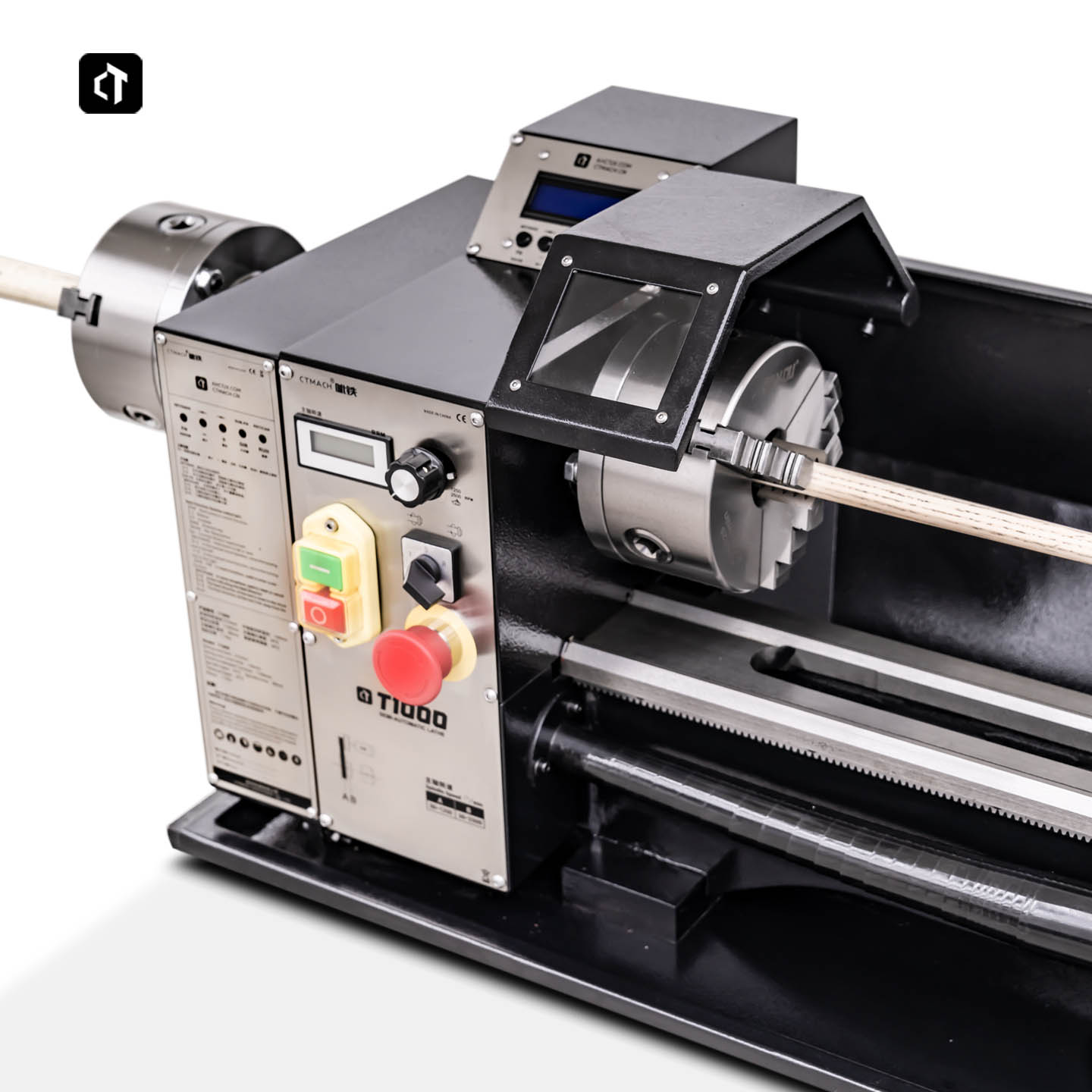

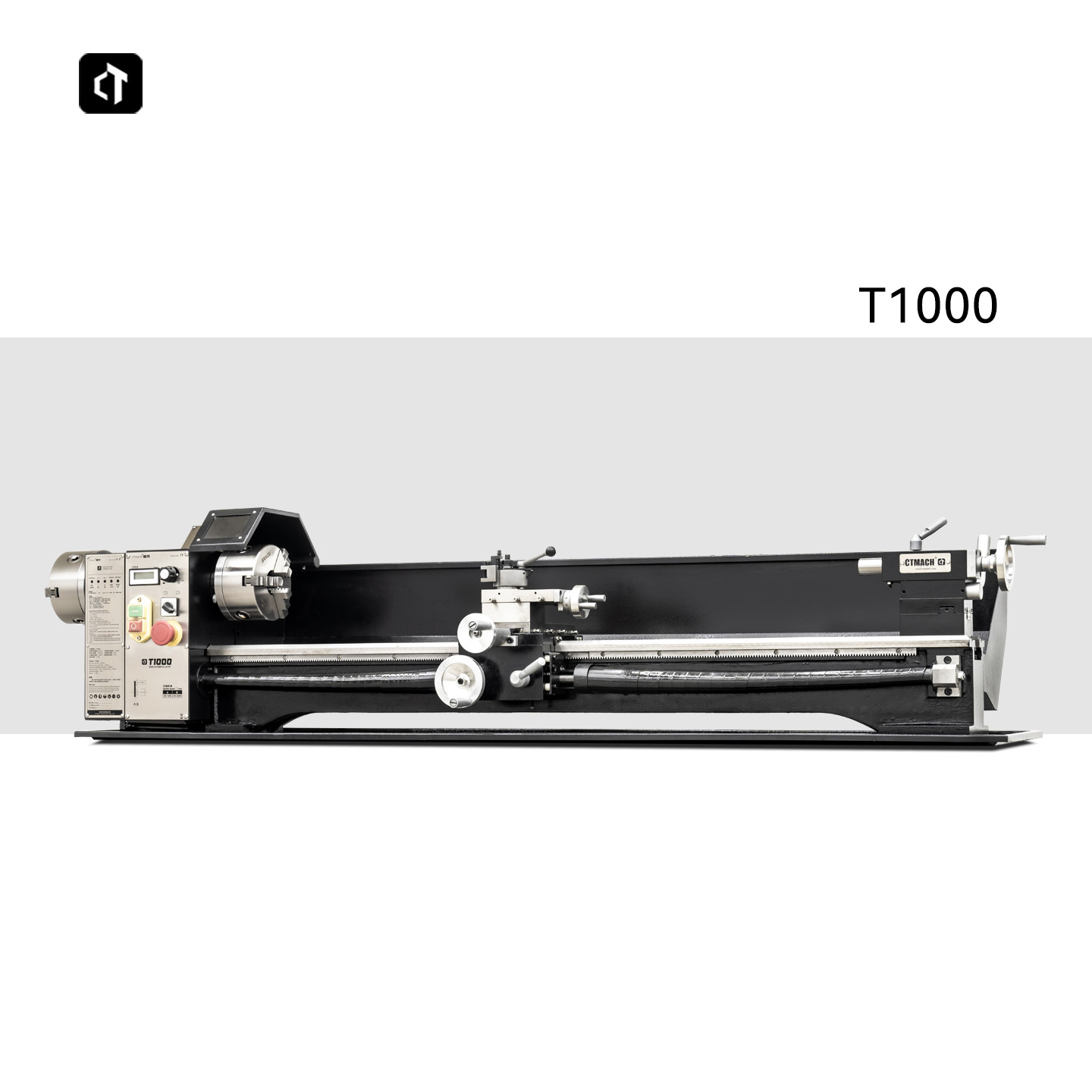

The T1000 Manual Lathe features a swing over bed of 210mm and a distance between centers of 1000mm, supporting light-duty machining with high precision. Equipped with dual chuck sizes 125mm and variable spindle speeds (50-2500 RPM), it ensures versatility for home use and specialized tasks like billiard cue work. Certified with CE and compliant with EU safety standards, it guarantees market access and reliability. The product is easy to operate, competitively priced, and backed by professional engineering support.

Model	T1000
Bed Swing Diameter	210mm
Center Carriage Swing Diameter	130mm
Ejector Distance	1100mm
Spindle Speed Range	50-1250&50~2500rpm
Spindle Taper	MT5
Spindle Hole Diameter	38mm
Turret Carriage Travel	55mm
Center Carriage Travel	65mm
Tailstock Quill Taper	MT2
Tailstock Quill Travel	50mm
Feed Range	0.01~0.4 mm/r
Metric Thread Range	0.1~5.0mm
Inch Thread Range	6~96 T.P.I
Motor	1100W
Dimensions	1670440360mm
Packaging	1644949cm
Net Weight	104Kg
Gross Weight	124Kg
