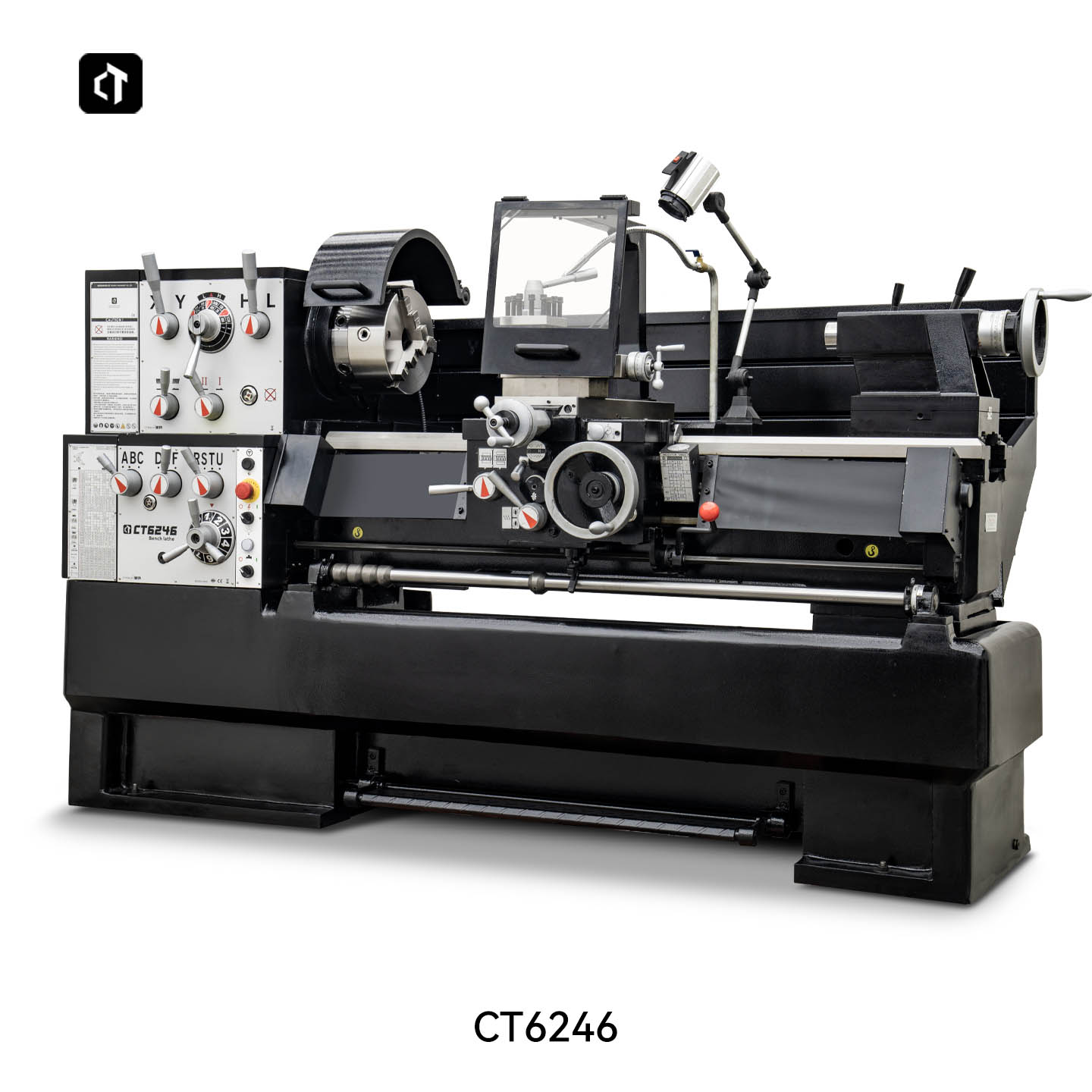

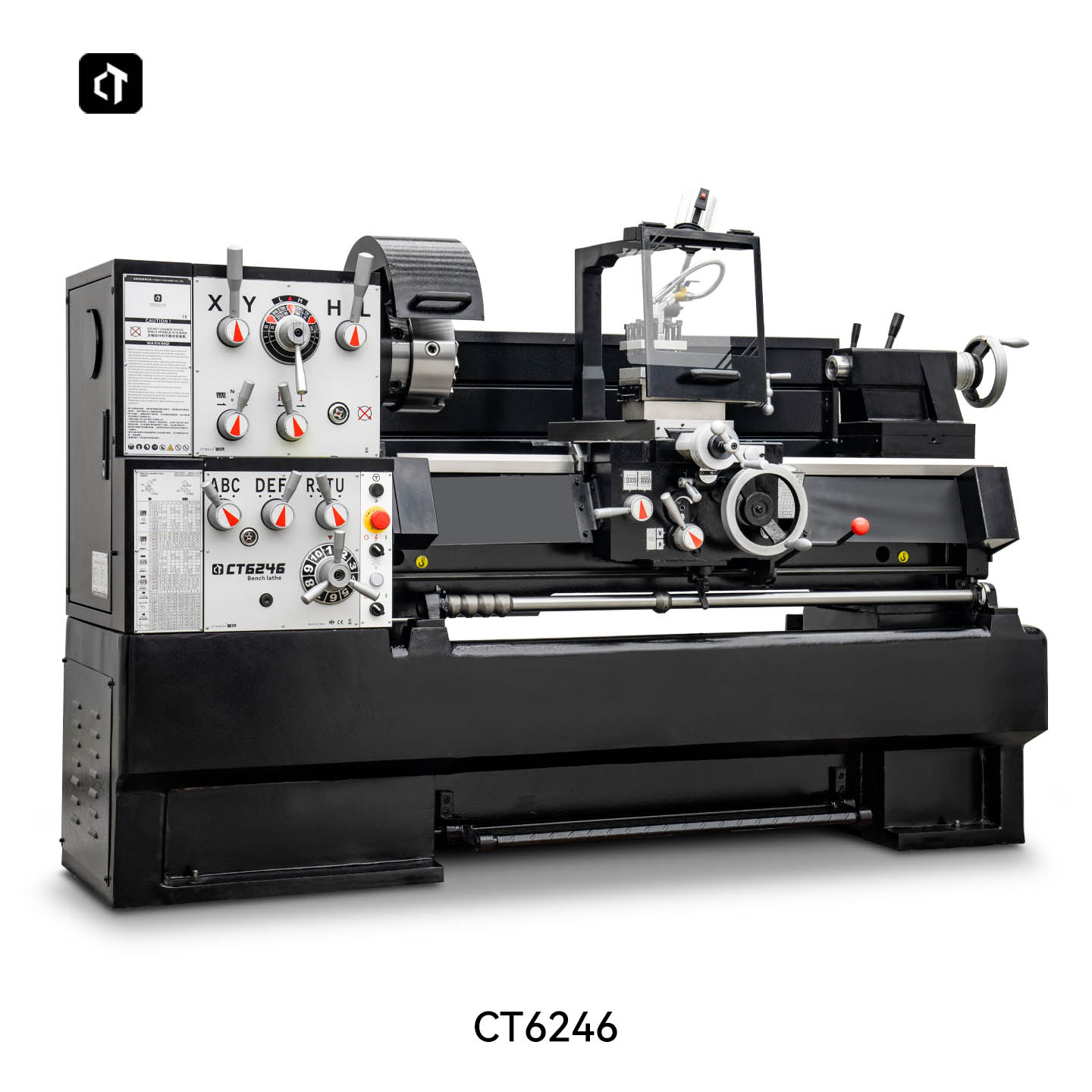

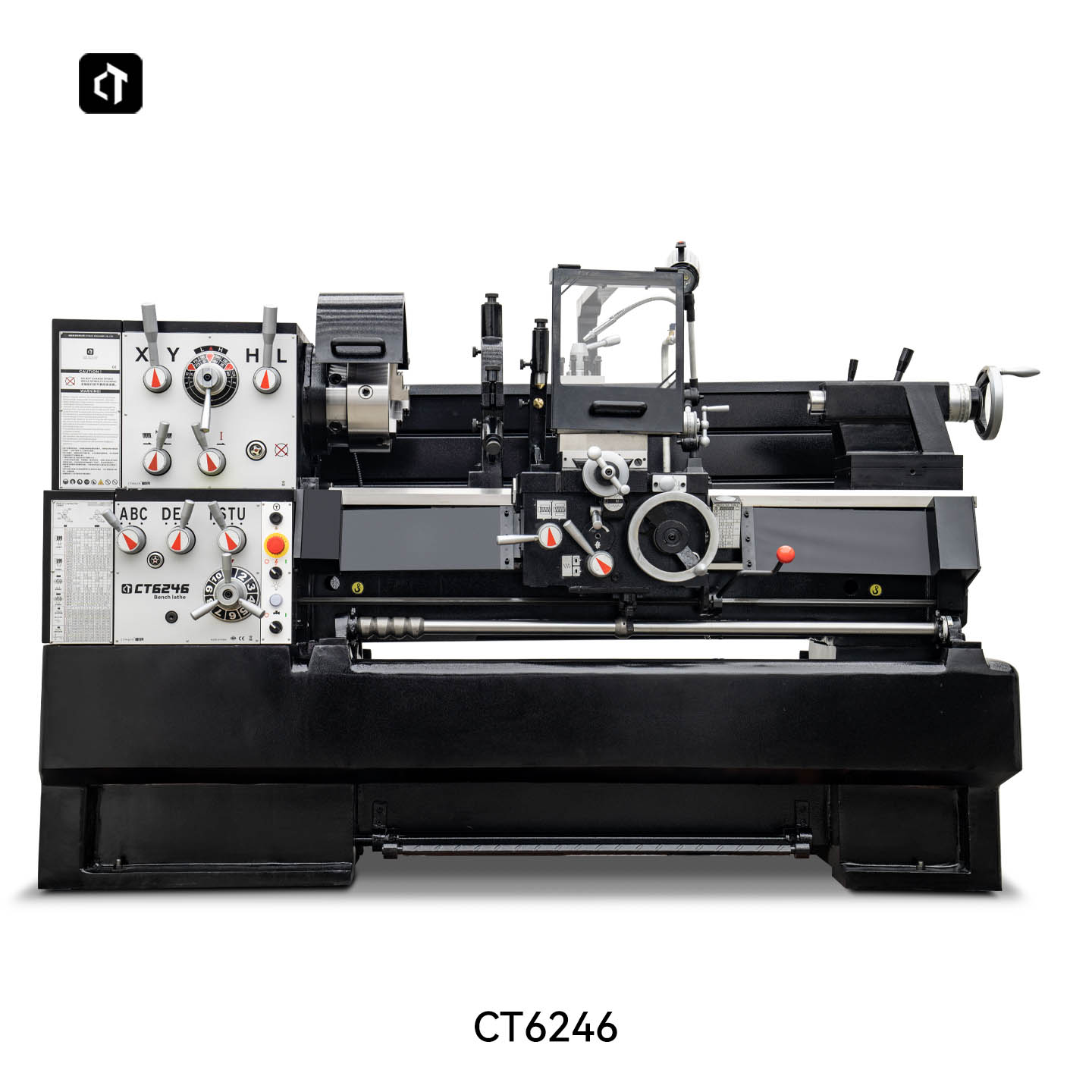

18" x 40" 3-Phase Gunsmithing Metal Lathe-CT6246

18" x 40" 3-Phase Gunsmithing Metal Lathe-CT6246

The CTMACH CT6246 table-top thread cutting lathe is designed for industrial turning of metal or plastic workpieces with the surface shape of a body of revolution.

The machine allows you to perform basic turning operations: turning and boring cylindrical and conical surfaces, trimming ends, cutting off, drilling, tapping.

Model :
CT6246
Swing over bed :
460
Swing over cross slide :
274
Distance between centers :
1000
Motor :
5500

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description
Specifications
Video

Features

Precision grinding and ultrasonic hardening bed adopts double V structure design with super rigidity.

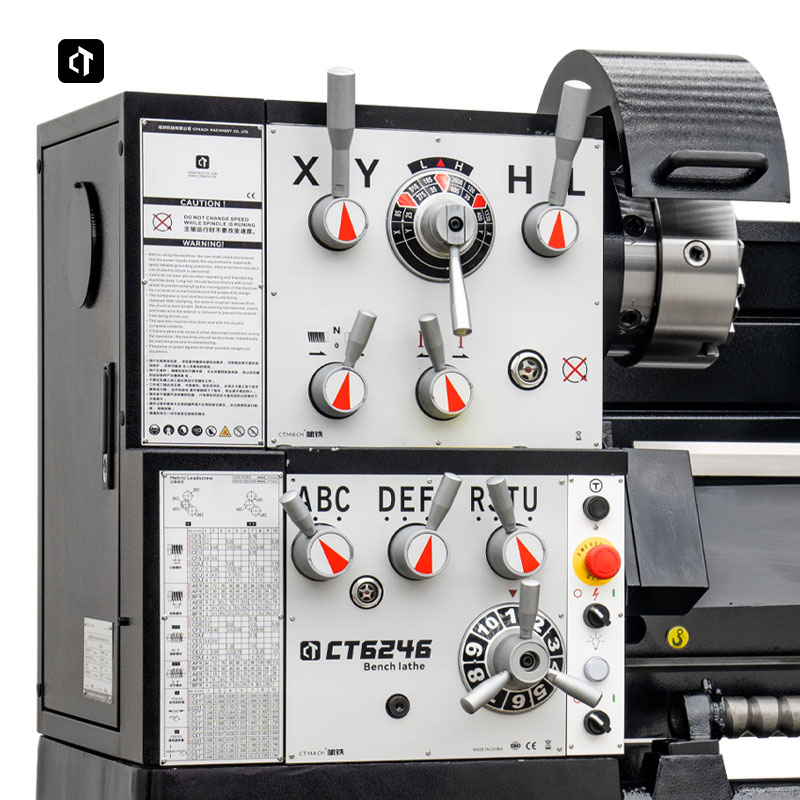

The spindle system has good rigidity and high precision. The main driving device is optimized and the headstock gear is refined Grinding.

This machine can process metric and imperial threads, and can process both module and diameter pitch.

The automatic stop device is used to realize the automatic stop of the workpiece of certain length. It is a safe and reliable pedal brake installation

In the operation can be quickly and effectively stopped.

The lubrication system of slide box can effectively reduce the wear of lead screw and enhance the life of machine tool.

Model	CT6246
Spinning Diameter of Bed	460mm
Spinning Diameter of Middle Slide	274mm
Spinning Diameter of Saddle Groove	690mm
Center Height	230mm
Workpiece Length	1000mm
Bed Width	300mm
Tool Holder Size	25*25mm
Transverse Travel of Middle Slide	290mm
Travel of Tool Post Slide	120mm
Spindle Through Hole Diameter	82mm
Spindle Type	D1-6
Spindle Inner Hole Taper	90(1:20) * 4
Spindle Speed Range	12 25~2000RPM
Lead Screw Diameter and Thread	40mm*4T.P.I
Metric Longitudinal Feed Range	0.031~1.7mm /r.e.v (42 )
Metric Transverse Feed Range	0.014~0.784mm /r.e.v (42)
Metric Thread Range/Number	0.1~14 mm (41)
Imperial Thread Range/Number	2~112T.P.I (60)
Diameter Pitch Thread Range/Number	4~112 D.P (50)
Module Thread Range/Number	0.1~7 M.P (34)
Tailstock Sleeve Diameter	60mm
Tailstock Sleeve Travel	120mm
Tailstock Sleeve Taper	M.T 4
Main Motor Power	5.5Kw
Water Pump Power	90w
Overall Dimensions	217010401340mm
Net Weight	1780KG
